Description of the device
Features
The LED Light Bar 8 is a LED system from Showtec.
• LEDs: 240 RGB high intensity 10mm LEDs (Red 96, Green 72, Blue 72)
• Beam angle: 30 º
• Inexpensive batten effect
• 8 sections
• Compact size
• Output: 800Lumen
• Lux @2m: 613,3
• Max. Distance: 15m
• Efficacy (lm/W) 36W
• Drive Current: 25mA
• Refresh rate: 400Hz
• Color Range: RGB
• Power Supply: 100-240V AC
• Control Mode: DMX512
• Dimmer: 0-100%
• Strobe: 0-20Hz
• Peak Power 130 Watt
• Continuous Power 60 Watt
• 3 pin female XLR socket and 3 pin male XLR socket
• IEC Power In and IEC power Out
• Linkable via 3-pin XLR cable
• Built-in microphone
• Black aluminium material
• LED Digital display
• Fuse: 250V / 1A
• Built-in programs mode, Auto running mode, DMX mode, slave mode, sound-activated mode.
• DMX controlled
• Selectable 2, 3, 4, 7, 14 and 26 DMX channel operation
• Dimensions: 1070 x 65 x 88 mm
• Weight: 1,74 kg
NOTE: Knowledge of DMX is required to fully utilize this unit.
Overview

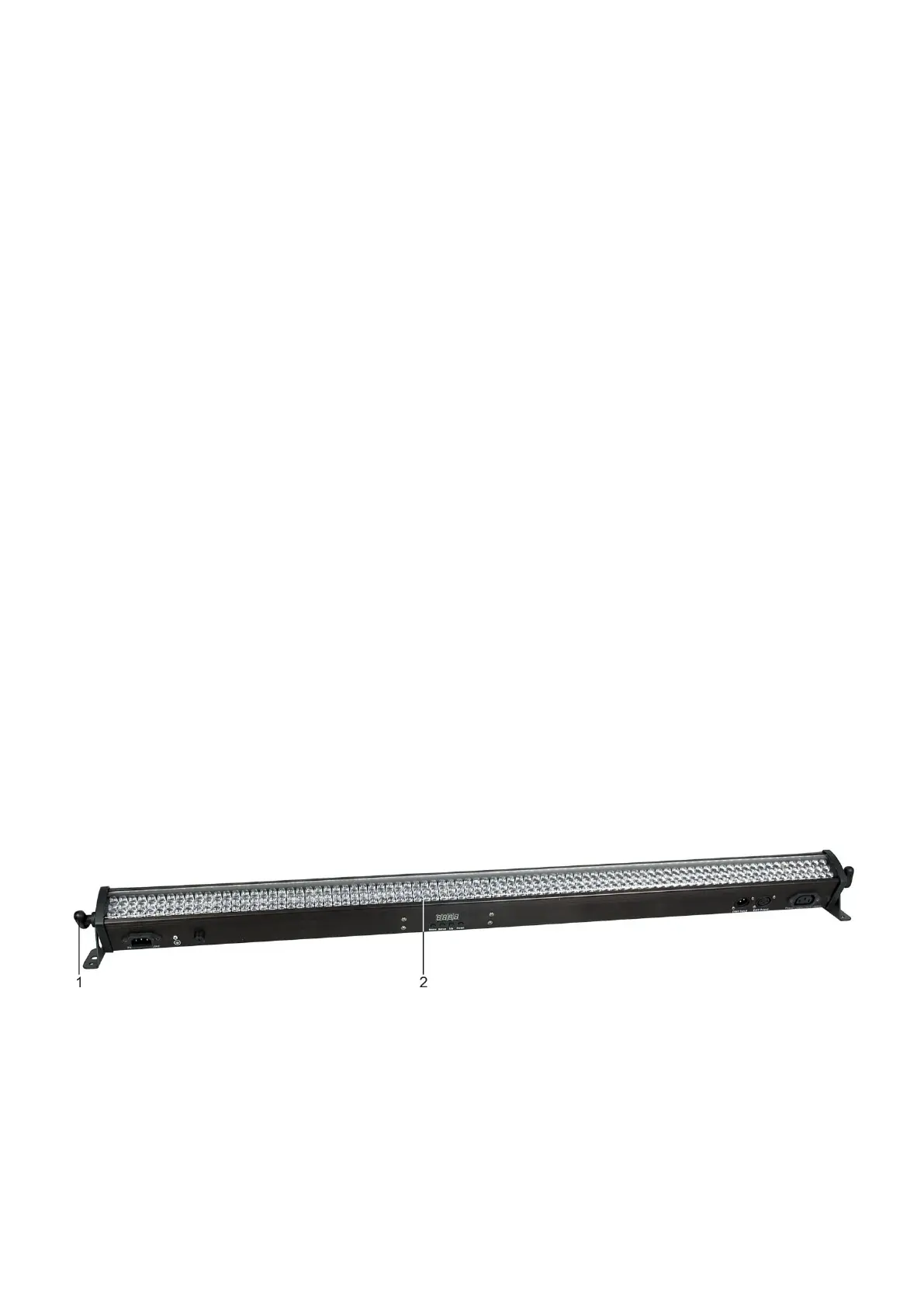

Fig. 1
1) Adjustment Screw + Mountingbracket for Truss mounting
2) Total LED Light Bar 240 LEDs
