Showven SPARKULAR BT02 - System Configuration and Connection

Maximum of 6 units (BT01) / 3 units (BT02) Sparkular in series with one main power supply cable.
2) System Connection
a) Controller and Sparkular
b) Sparkular Power Supply Cable
c) Power Link Cable Connection between Sparkular
DMX Communication Cable
Power Supply CableSparkular
Power Link CableSparkular Sparkular

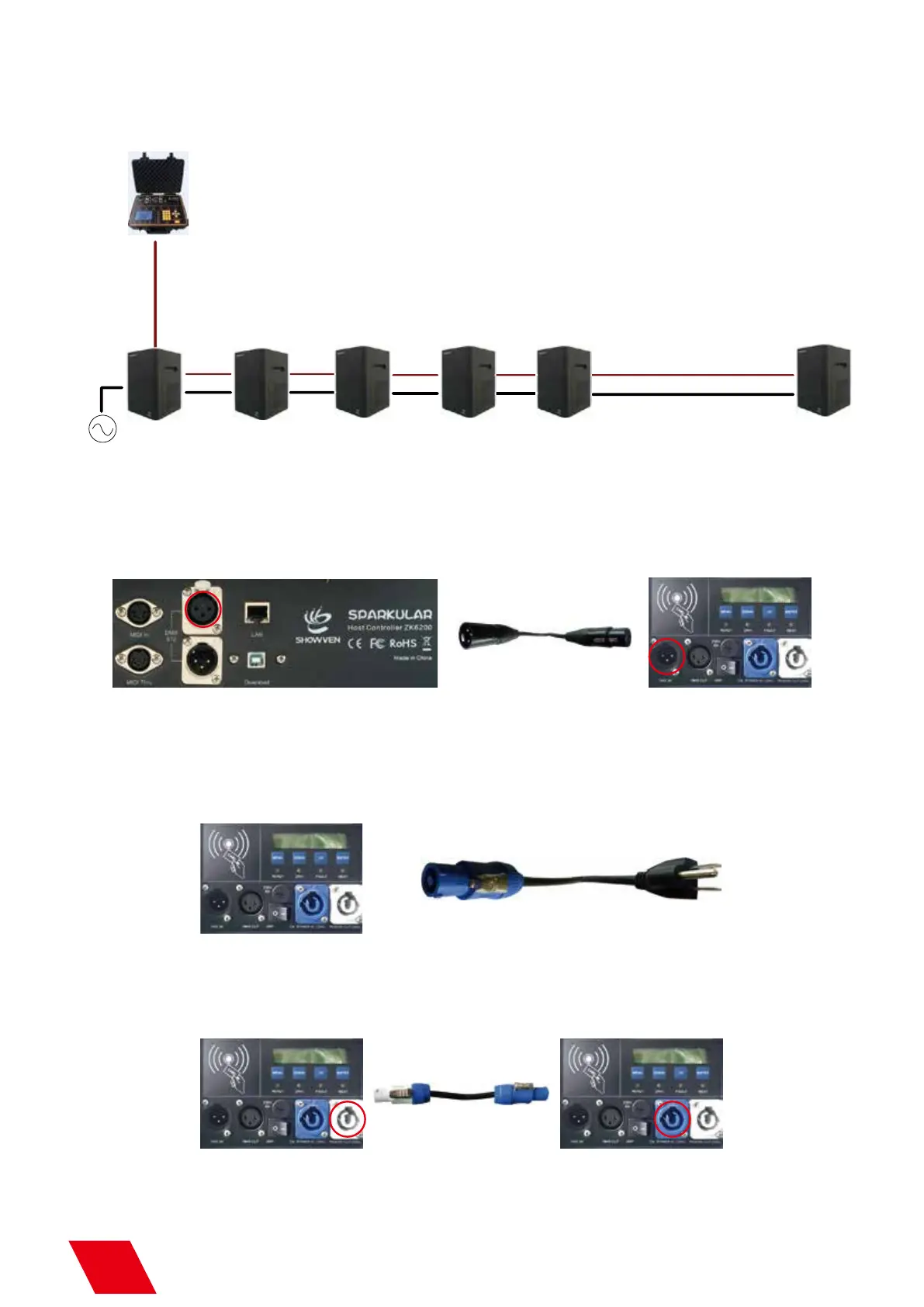

3. System Configuration and Connection
1) System Configuration
Sparkular
Standard DMX
Communication Cable
2
1
43
5 6
Host Controller
AC Input
3PIN Power Supply Cable
Standard DMX
Communication Cable
Host Controller (ZK6200) Sparkular
13
