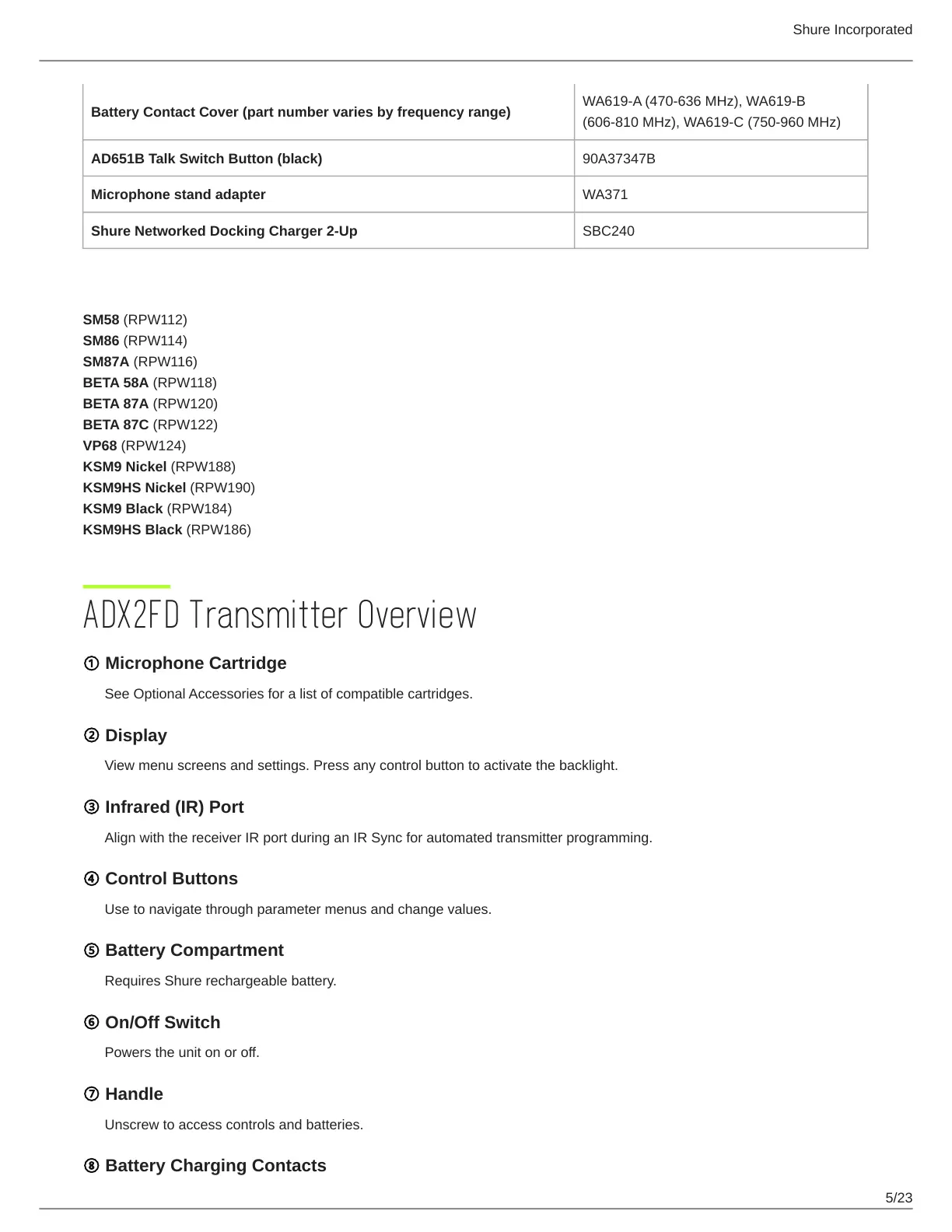

Shure Incorporated
5/23
Battery Contact Cover (part number varies by frequency range)
WA619-A (470-636 MHz), WA619-B
(606-810 MHz), WA619-C (750-960 MHz)
AD651B Talk Switch Button (black) 90A37347B
Microphone stand adapter WA371
Shure Networked Docking Charger 2-Up SBC240
Optional Shure microphone cartridges:
SM58 (RPW112)
SM86 (RPW114)
SM87A (RPW116)
BETA 58A (RPW118)
BETA 87A (RPW120)
BETA 87C (RPW122)
VP68 (RPW124)
KSM9 Nickel (RPW188)
KSM9HS Nickel (RPW190)
KSM9 Black (RPW184)
KSM9HS Black (RPW186)
ADX2FD Transmitter Overview
① Microphone Cartridge
See Optional Accessories for a list of compatible cartridges.
② Display
View menu screens and settings. Press any control button to activate the backlight.
③ Infrared (IR) Port
Align with the receiver IR port during an IR Sync for automated transmitter programming.
④ Control Buttons
Use to navigate through parameter menus and change values.
⑤ Battery Compartment
Requires Shure rechargeable battery.
⑥ On/Off Switch
Powers the unit on or off.
⑦ Handle
Unscrew to access controls and batteries.
⑧ Battery Charging Contacts
