Battery Installation

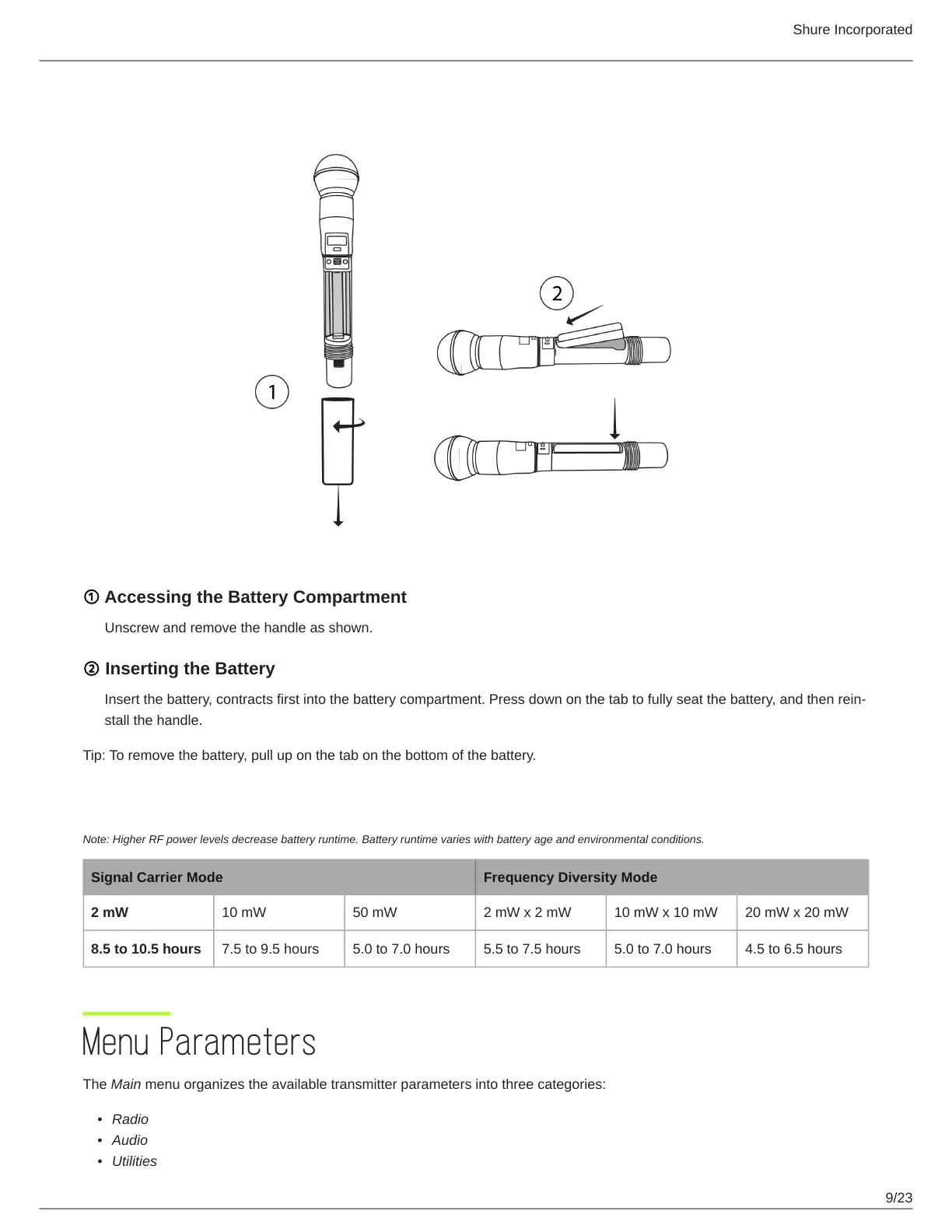

① Accessing the Battery Compartment
Unscrew and remove the handle as shown.
② Inserting the Battery
Insert the battery, contracts first into the battery compartment. Press down on the tab to fully seat the battery, and then rein
stall the handle.
Tip: To remove the battery, pull up on the tab on the bottom of the battery.
ADX2FD SB920 Battery Runtime
Note: Higher RF power levels decrease battery runtime. Battery runtime varies with battery age and environmental conditions.
Signal Carrier Mode Frequency Diversity Mode
2 mW 10 mW 50 mW 2 mW x 2 mW 10 mW x 10 mW 20 mW x 20 mW
8.5 to 10.5 hours 7.5 to 9.5 hours 5.0 to 7.0 hours 5.5 to 7.5 hours 5.0 to 7.0 hours 4.5 to 6.5 hours
Menu Parameters
The Main menu organizes the available transmitter parameters into three categories:
Radio
Audio
Utilities
