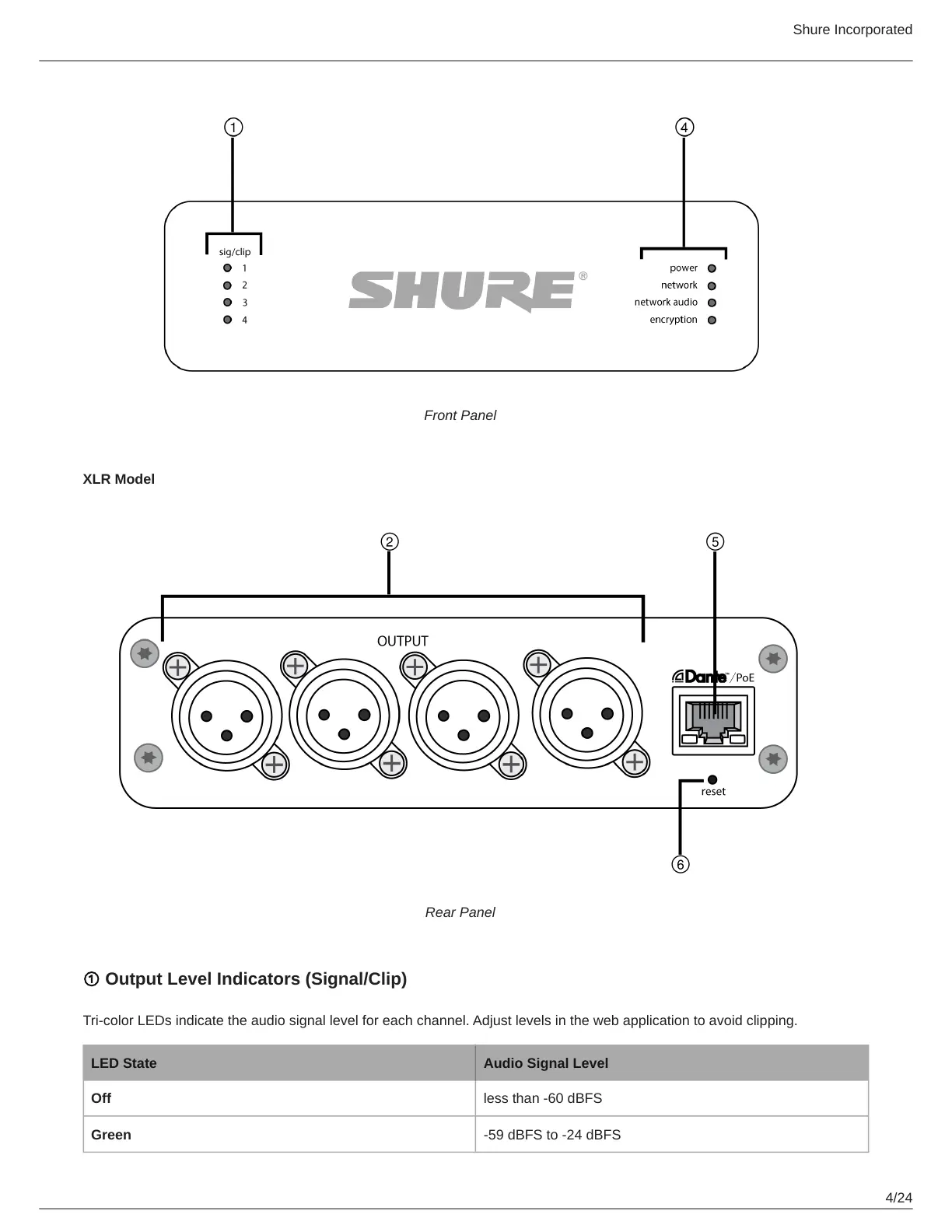

Front Panel
XLR Model
Rear Panel
① Output Level Indicators (Signal/Clip)
Tri-color LEDs indicate the audio signal level for each channel. Adjust levels in the web application to avoid clipping.
LED State Audio Signal Level
Off less than -60 dBFS
Green -59 dBFS to -24 dBFS
