Shure Incorporated
7/24
1.
2.
1.
2.

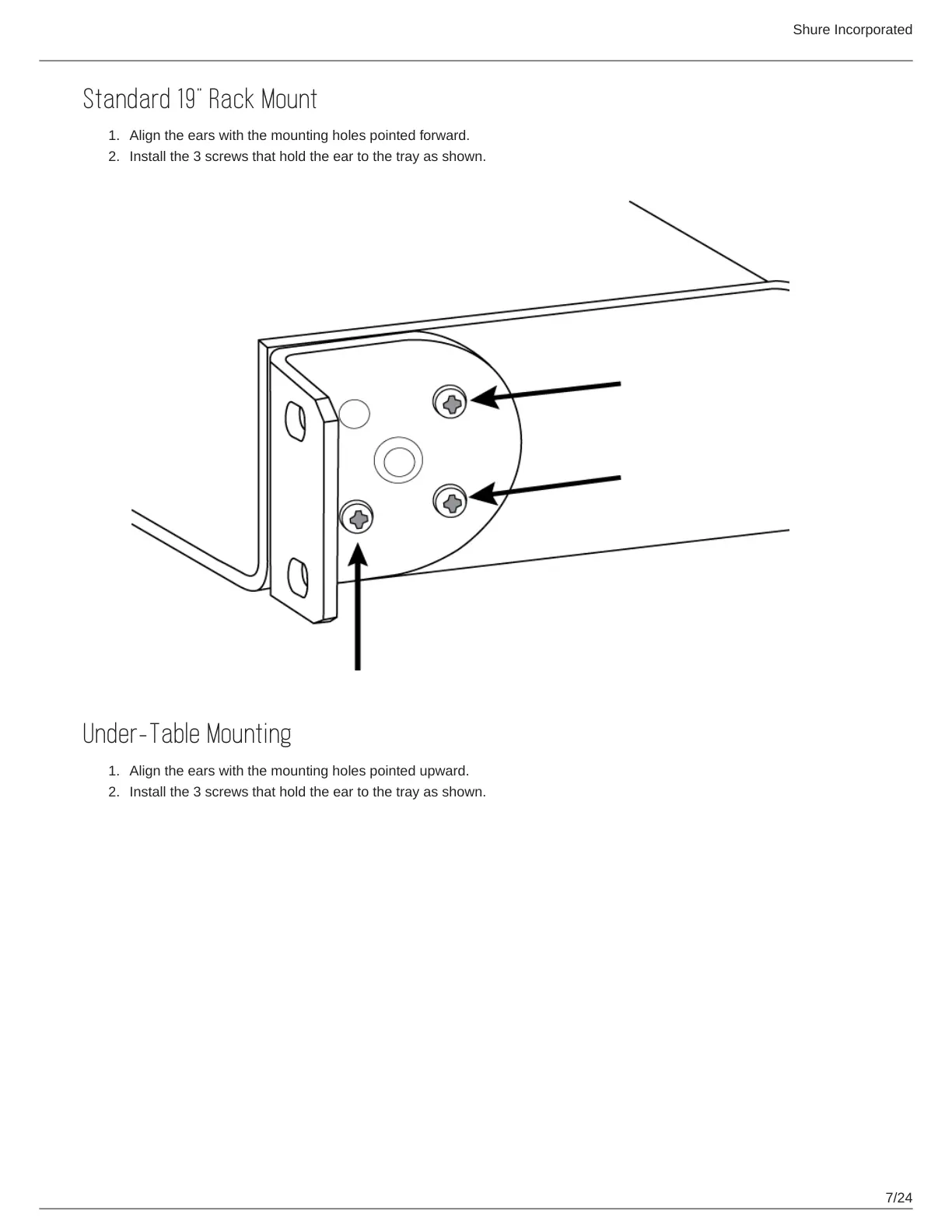

Standard 19" Rack Mount
Align the ears with the mounting holes pointed forward.
Install the 3 screws that hold the ear to the tray as shown.
Under-Table Mounting
Align the ears with the mounting holes pointed upward.
Install the 3 screws that hold the ear to the tray as shown.
