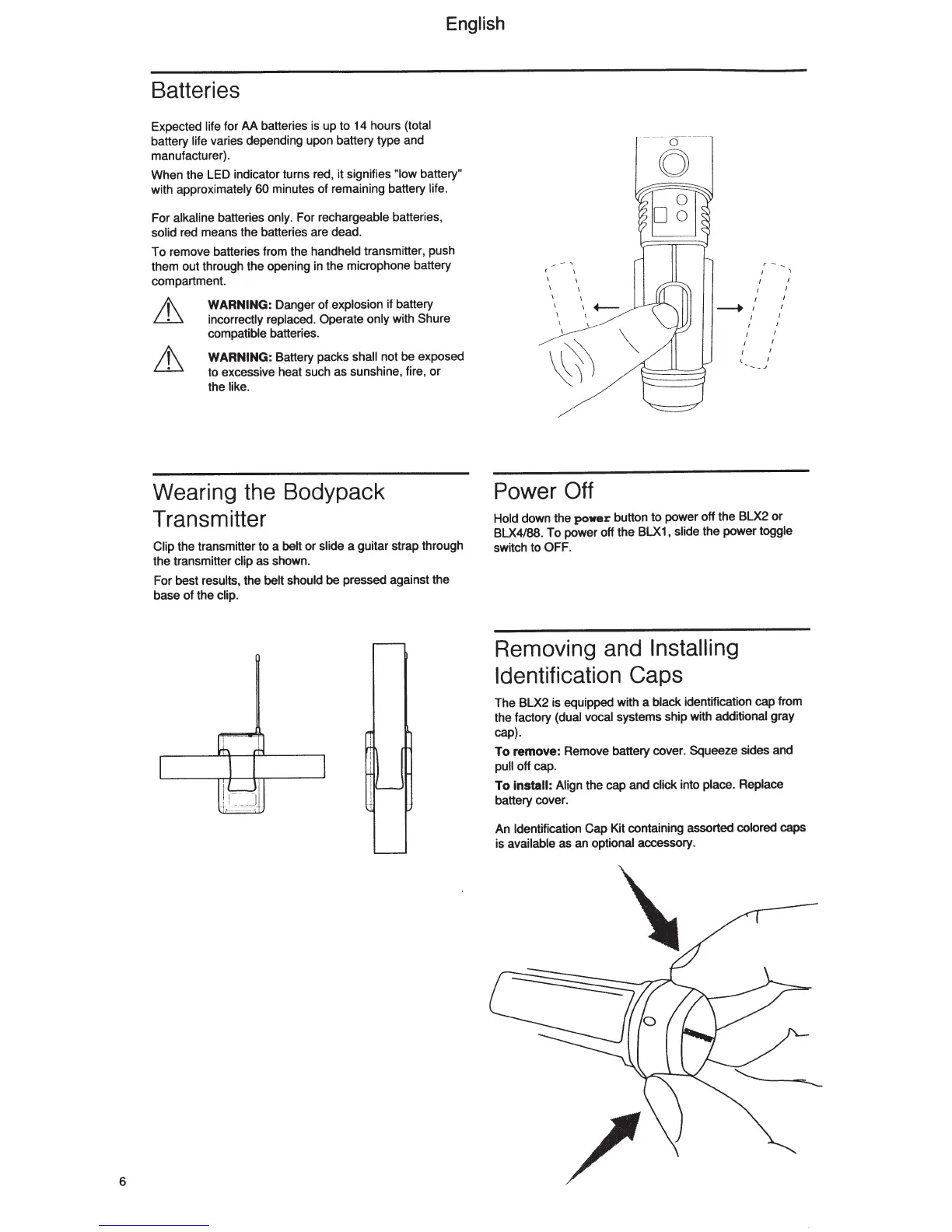

Shure BLX Series Quick Start Guide

6
English
Batteries
Expected life
for AA batteries is up to 14 hours (total
battery
life
varies depending upon battery type and
manufacturer).
When the LED indicator turns red, it signifies
"low battery"
with approximately
60
minutes of remaining battery life.
For alkaline batteries only. For rechargeable batteries,
solid red means the batteries are dead.
To remove batteries from the handheld transmitter, push
them out through the opening
in
the microphone battery
compartment.
WARNING:
Danger of explosion if battery
incorrectly replaced. Operate only with Shure
compatible batteries.
WARNING:
Battery packs
shall
not be exposed
to excessive heat such as sunshine, fire,
or
the like.
Wearing the Bodypack
Transmitter
Clip
the transmitter to a
belt or
slide a guitar strap through
the transmitter
clip
as shown.
For best results, the
belt
should be pressed against the
base of the
clip.
0
0
Power
Off
Hold
down
the
power
button to power off the BLX2
or
BLX4/88. To power off the BLX1, slide
the power toggle
switch to OFF.
Removing and Installing
Identification Caps
The BLX2 is equipped with a
black
identification cap from
the factory (dual vocal systems ship with additional gray
cap).
To remove:
Remove battery cover. Squeeze sides and
pull
off cap.
To
install:
Align
the cap and
click into place. Replace
battery cover.
An Identification
Cap
Kit containing assorted colored
caps
is
available
as an optional accessory.
\

Shure BLX Series Specifications

General

Transmitter Type	Handheld, Bodypack
Frequency Response	50 Hz to 15 kHz
Operating Range	Up to 300 ft (91 m)
Transmitter Battery Life	Up to 14 hours
RF Output Power	10 mW
System Type	Wireless
Operating Frequency	Varies by region (512-542 MHz, 542-572 MHz, 572-602 MHz, 606-636 MHz, 662-692 MHz, 694-703 MHz, 740-752 MHz, 823-832 MHz, 863-865 MHz)
Receiver Output Connectors	XLR
Modulation	FM
Power Source	AA batteries (transmitter), DC power supply (receiver)
Dimensions (Transmitter)	Varies by model
Weight (Transmitter)	Varies by model
Dimensions (Receiver)	Varies by model
Weight (Receiver)	Varies by model
Audio Output Impedance	50 ohms
