Shure DFR22 - Mute Control Connections

Shure Incorporated
14/16
Preset Resistor Value
10 0.631.1 kΩ

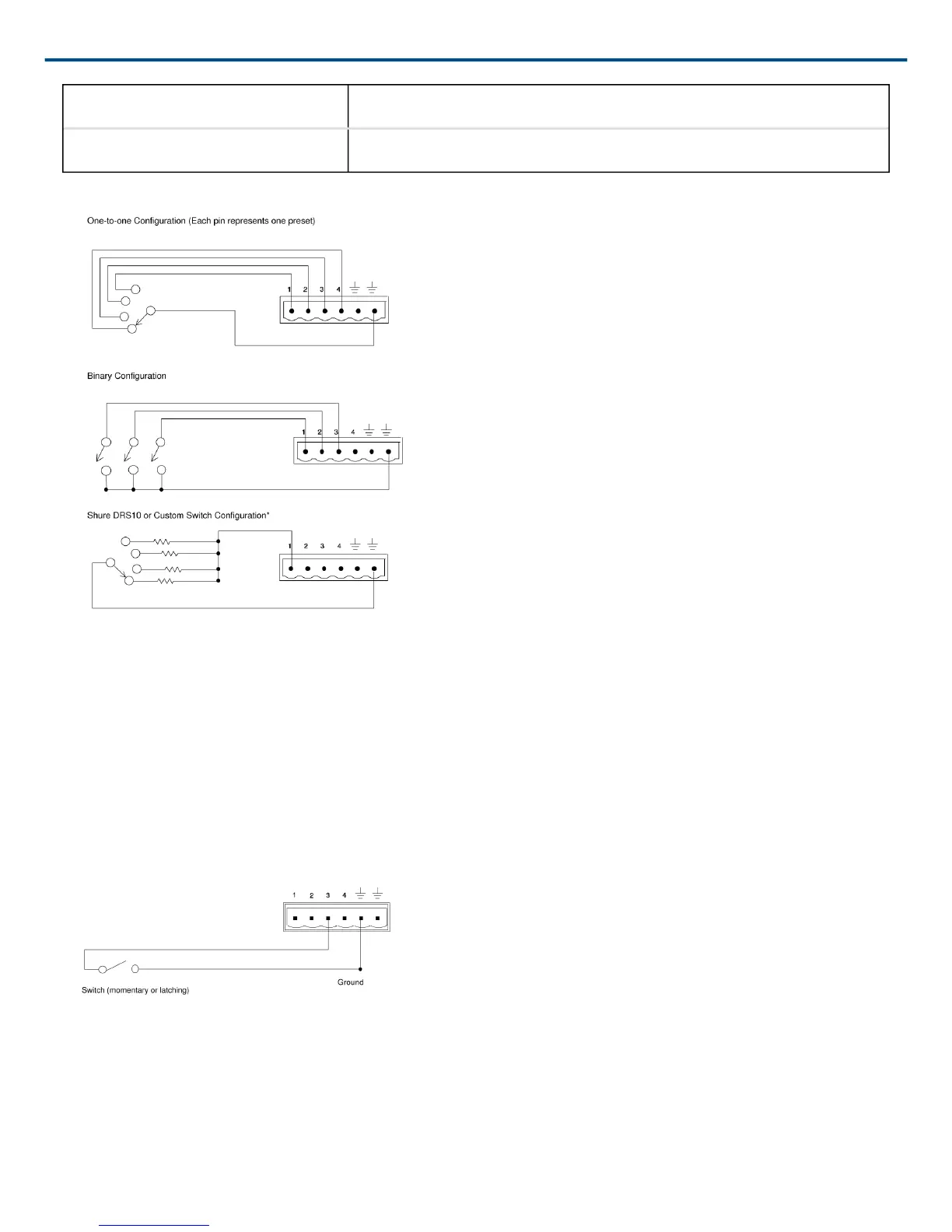

Figure 14: WIRING CONTROL INPUT PINS FOR PRESET CONTROL
Mute Control Connections
For mute control, use either a latching switch or a monetary switch. The total resistance of the cable run from the
switch to the DFR22 should be less than 100 Ω.
Figure 15 shows an example of how to connect either a latching switch or a monetary switch to the Control Input
pins to mute an input or an output.
Figure 15: MUTE CONTROL PIN CONNECTIONS
