5

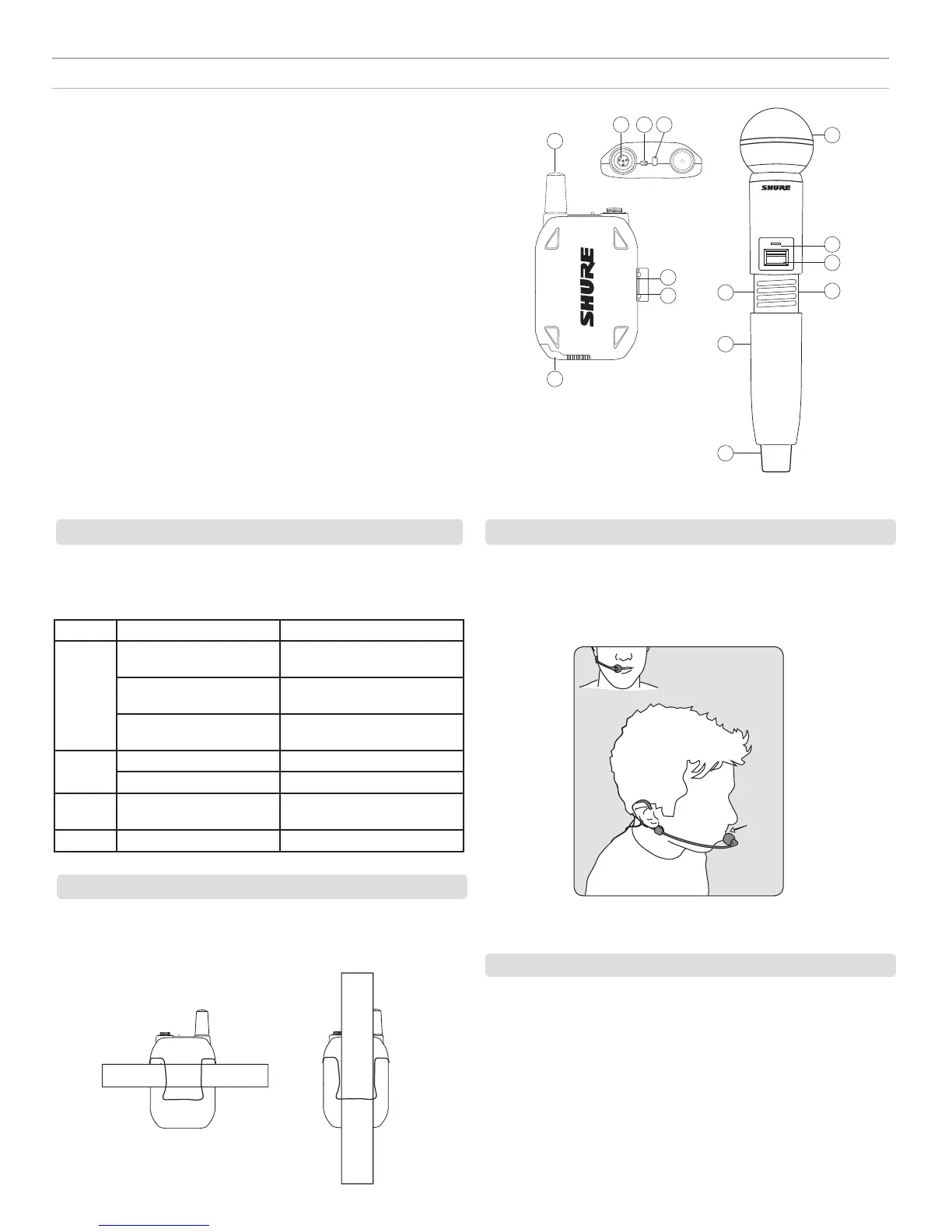

Transmitters
Transmitter Status LED
① Antenna
Carries wireless signal.
② Status LED
LED color and state indicate transmitter status.
③ Power Switch
Turns the transmitter on/off.
④ TA4M Input Jack
Connects to a 4-Pin mini connector (TA4F) microphone or instrument
cable.
⑤ Micro USB Charging Port
Connect to USB battery charger.
⑥ Link Button
Press and hold within 5 seconds of power-on to manually link with
receiver
Press momentarily to activate Remote ID function
⑦ Battery Compartment
Holds 1 Shure rechargeable battery.
⑧ Microphone Cartridge
GLXD-2 transmitter models are available with the following cartridge
types: SM58, Beta 58, SM86, Beta 87A.
Wearing the Bodypack Transmitter
Wearing the Headworn Microphone
Correct Microphone Placement
Clip the transmitter to a belt or slide a guitar strap through the transmitter
clip as shown.
For best results, the belt should be pressed against the base of the clip.
Position the headworn microphone 13 mm (1/2 in.) from the corner of
your mouth.
Position lavalier and headworn microphones so that clothing, jewelry,
or other items do not bump or rub against the microphone.
Hold the microphone within 12 inches from the sound source.
For a warmer sound with increased bass presence, move the
microphone closer to the sound source.
Do not cover grille with hand.
LED is green during normal operation.
LED color or flashing indicates a change in transmitter status as shown in
the following table:
Color State Status
Green Flashing (slow) transmitter attempting relink
with receiver
Flashing (fast) unlinked transmitter searching
for receiver
Flashes 3 times indicates locked transmitter
when power switch is pressed
Red On battery life < 1 hour
Flashing battery life < 30 minutes
Red/
Green
Flashing remote ID active
Amber Flashing battery error, replace battery
1
1
23
2
3
4
5
6
5
6
7
7
8
off on
GLXD2
on
13 mm
(.5 in.)
