RF Sensitivity
-88 dBm, typical
Total Harmonic Distortion
0.2%, typical
RF Output Power
10 mW E.I.R.P. max
Operating Temperature Range
-18°C (0°F) to 57°C (135°F)
2
Storage Temperature Range
-29°C (-20°F) to 74°C (165°F)
Polarity
Positive pressure on microphone diaphragm (or positive voltage applied to
tip of WA302 phone plug) produces positive voltage on pin 2 (with respect
to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch
output.
Battery Life
Up to 16 hours
Channel Count
Up to 11 maximum
GLXD1
Dimensions
90 x 65 x 23 mm (3.56 x 2.54 x 0.90 in.), H x W x D (without antenna)
Weight
132 g (4.7 oz.) without batteries
Power Requirements
3.7 V Rechargeable Li-Ion
Housing
Cast Metal, Black Powdercoat
Input Impedance
900 kΩ
RF Output Power
10 mW E.I.R.P. max
Transmitter Input
Connector
4-Pin male mini connector (TA4M)
Configuration
Unbalanced
Maximum Input Level
1 kHz at 1% THD
+8.4 dBV (7.5 Vp-p)
Antenna Type
Internal Monopole

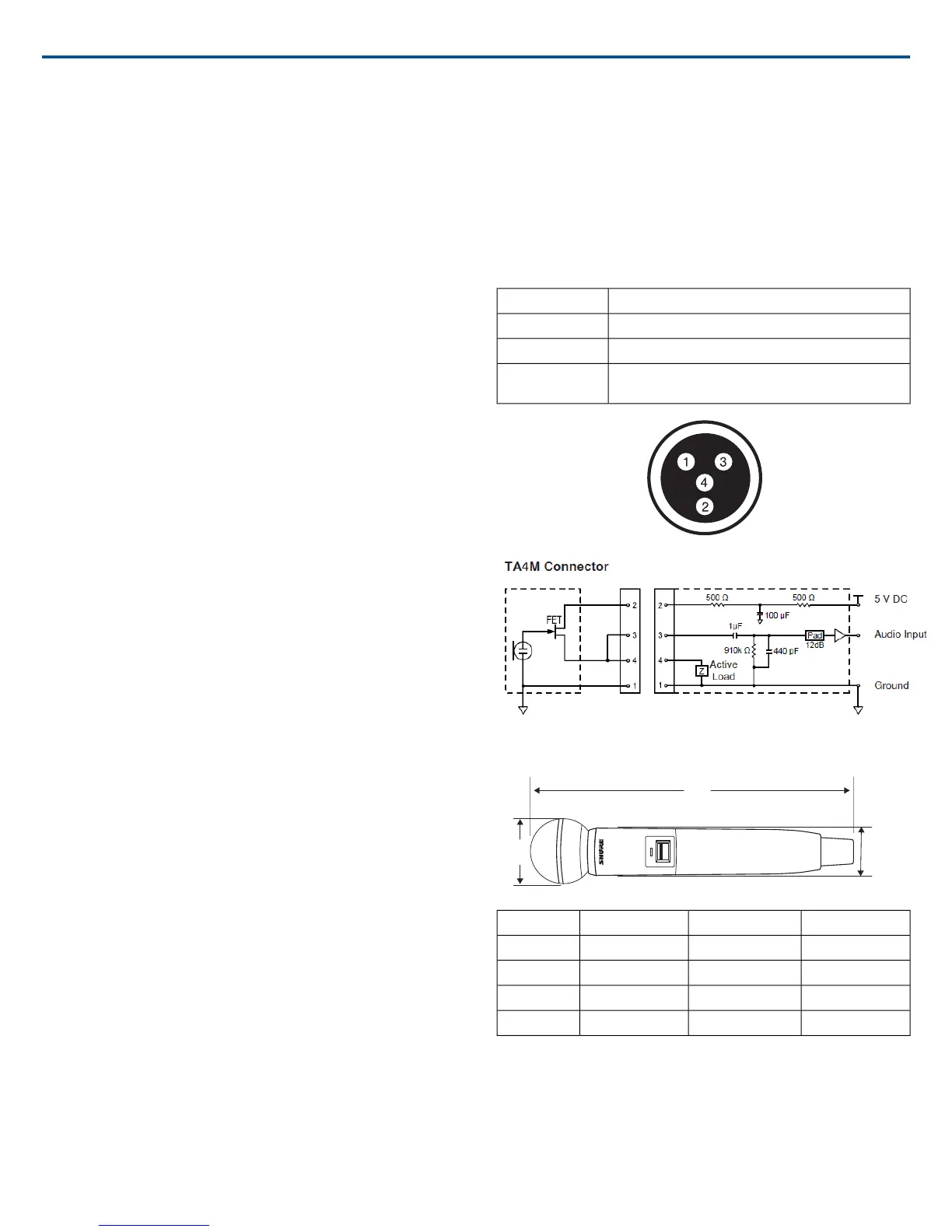

Pin Assignments
TA4M
ground (cable shield)1
+ 5 V Bias2
audio3
Tied through active load to ground (On instrument
adapter cable, pin 4 floats)
4
GLXD2
CBAModel
37 mm, (1.5 in.)252 mm, (9.9 in.)51 mm, (2.0 in.)SM58
37 mm, (1.5 in.)252 mm, (9.9 in.)51 mm, (2.0 in.)BETA 58
37 mm, (1.5 in.)252 mm, (9.9 in.)49 mm, (1.9 in.)SM86
37 mm, (1.5 in.)252 mm, (9.9 in.)51 mm, (2.0 in.)BETA 87A
2
Note: Battery characteristics may limit this range.
