Shure GLXD4R User Manual

Shure Incorporated

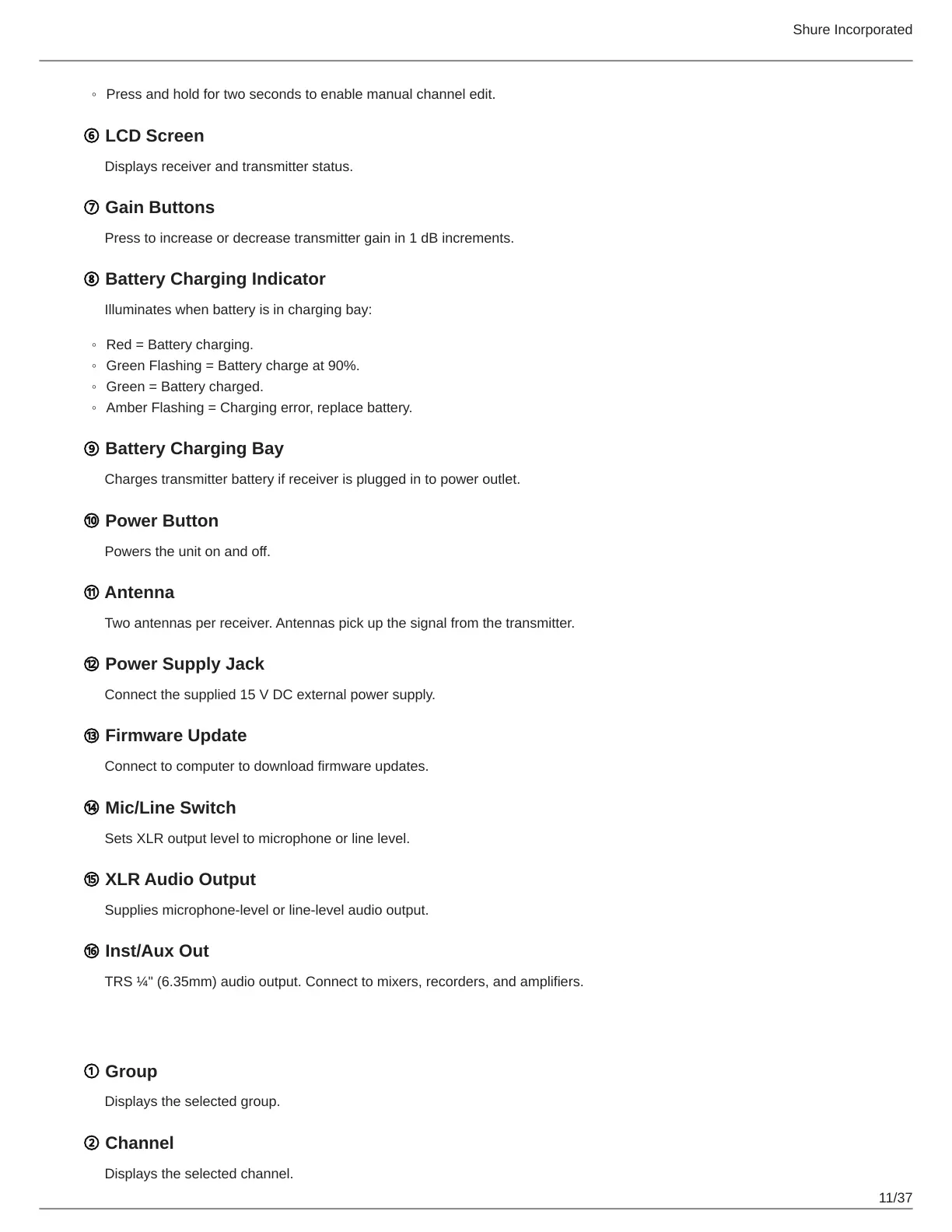

11/37
◦
◦
◦
◦
◦
Press and hold for two seconds to enable manual channel edit.
⑥ LCD Screen
Displays receiver and transmitter status.
⑦ Gain Buttons
Press to increase or decrease transmitter gain in 1 dB increments.
⑧ Battery Charging Indicator
Illuminates when battery is in charging bay:
Red = Battery charging.
Green Flashing = Battery charge at 90%.
Green = Battery charged.
Amber Flashing = Charging error, replace battery.
⑨ Battery Charging Bay
Charges transmitter battery if receiver is plugged in to power outlet.
⑩ Power Button
Powers the unit on and off.
⑪ Antenna
Two antennas per receiver. Antennas pick up the signal from the transmitter.
⑫ Power Supply Jack
Connect the supplied 15 V DC external power supply.
⑬ Firmware Update
Connect to computer to download firmware updates.
⑭ Mic/Line Switch
Sets XLR output level to microphone or line level.
⑮ XLR Audio Output
Supplies microphone-level or line-level audio output.
⑯ Inst/Aux Out
TRS ¼" (6.35mm) audio output. Connect to mixers, recorders, and amplifiers.
Receiver Screen
① Group
Displays the selected group.
② Channel
Displays the selected channel.

Shure GLXD4R Specifications

General

Impedance	50 Ω
Antenna type	Removable
Display type	LCD
Mounting type	Rack mount
Product color	Black
Scan features	Channel scan, Group scan
LED indicators	Yes
Housing material	Metal
Antennas quantity	2
Channels quantity	11 channels
High density mode	No
Antenna connector type	SMA
Operating frequency type	Ultra High Frequency (UHF)
Radio Frequency (RF) range	2404 - 2478 MHz
Operating temperature (T-T)	-18 - 57 °C
Microphone frequency response	20 - 20000 Hz
Total Harmonic Distortion (THD)	0.2 %
Input voltage	14 - 18 V
Power supply type	AC
Battery life (max)	16 h
Current consumption	550 mA
XLR out	1

Weight and Dimensions

Depth	163 mm
Width	197 mm
Height	42 mm
Weight	907 g
