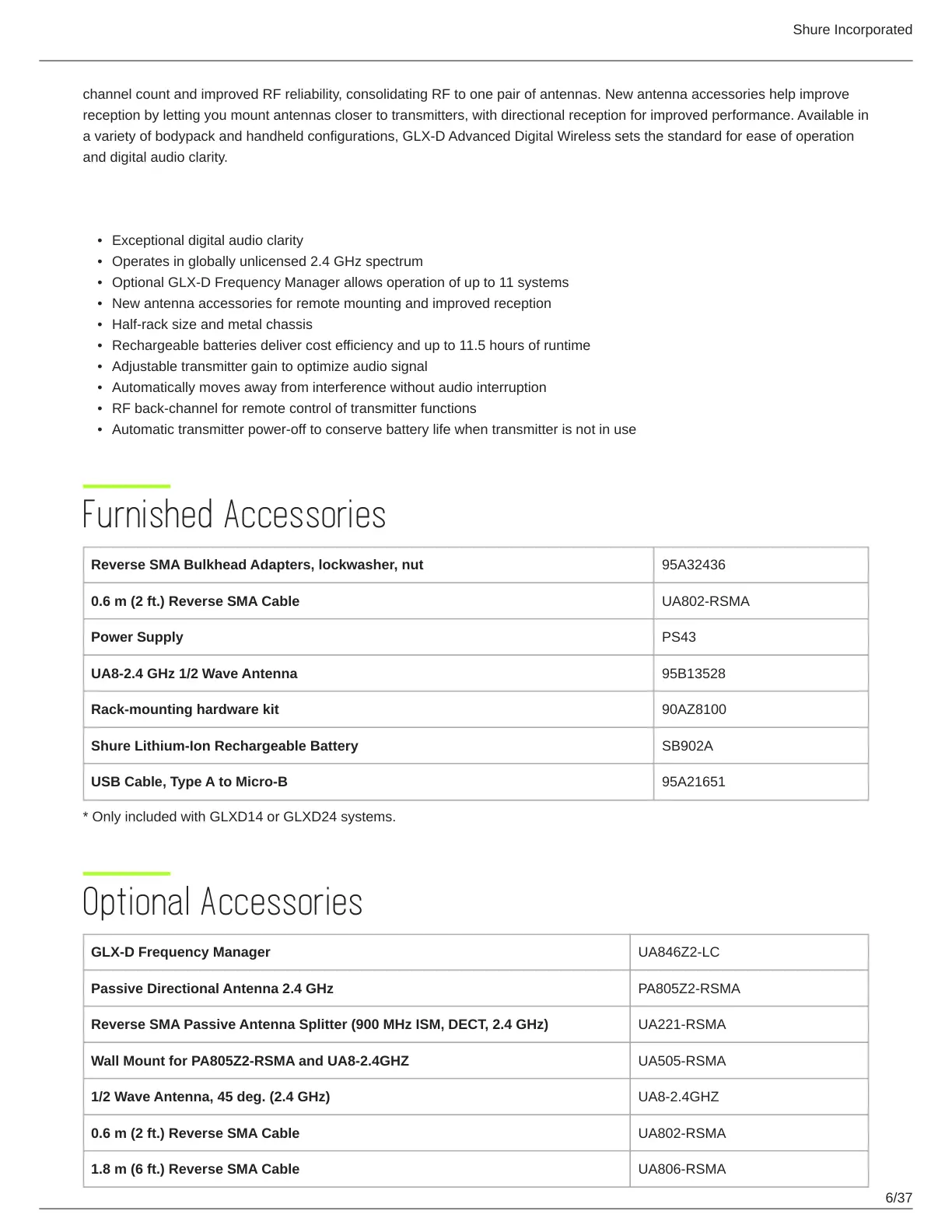

channel count and improved RF reliability, consolidating RF to one pair of antennas. New antenna accessories help improve
reception by letting you mount antennas closer to transmitters, with directional reception for improved performance. Available in
a variety of bodypack and handheld configurations, GLX-D Advanced Digital Wireless sets the standard for ease of operation
and digital audio clarity.
Features
Exceptional digital audio clarity
Operates in globally unlicensed 2.4 GHz spectrum
Optional GLX-D Frequency Manager allows operation of up to 11 systems
New antenna accessories for remote mounting and improved reception
Half-rack size and metal chassis
Rechargeable batteries deliver cost efficiency and up to 11.5 hours of runtime
Adjustable transmitter gain to optimize audio signal
Automatically moves away from interference without audio interruption
RF back-channel for remote control of transmitter functions
Automatic transmitter power-off to conserve battery life when transmitter is not in use
Furnished Accessories
Reverse SMA Bulkhead Adapters, lockwasher, nut 95A32436
0.6 m (2 ft.) Reverse SMA Cable UA802-RSMA
Power Supply PS43
UA8-2.4 GHz 1/2 Wave Antenna 95B13528
Rack-mounting hardware kit 90AZ8100
Shure Lithium-Ion Rechargeable Battery SB902A
USB Cable, Type A to Micro-B 95A21651
* Only included with GLXD14 or GLXD24 systems.
Optional Accessories
GLX-D Frequency Manager UA846Z2-LC
Passive Directional Antenna 2.4 GHz PA805Z2-RSMA
Reverse SMA Passive Antenna Splitter (900 MHz ISM, DECT, 2.4 GHz) UA221-RSMA
Wall Mount for PA805Z2-RSMA and UA8-2.4GHZ UA505-RSMA
1/2 Wave Antenna, 45 deg. (2.4 GHz) UA8-2.4GHZ
0.6 m (2 ft.) Reverse SMA Cable UA802-RSMA
1.8 m (6 ft.) Reverse SMA Cable UA806-RSMA

Shure GLXD4R Specifications

General

Impedance	50 Ω
Antenna type	Removable
Display type	LCD
Mounting type	Rack mount
Product color	Black
Scan features	Channel scan, Group scan
LED indicators	Yes
Housing material	Metal
Antennas quantity	2
Channels quantity	11 channels
High density mode	No
Antenna connector type	SMA
Operating frequency type	Ultra High Frequency (UHF)
Radio Frequency (RF) range	2404 - 2478 MHz
Operating temperature (T-T)	-18 - 57 °C
Microphone frequency response	20 - 20000 Hz
Total Harmonic Distortion (THD)	0.2 %
Input voltage	14 - 18 V
Power supply type	AC
Battery life (max)	16 h
Current consumption	550 mA
XLR out	1

Weight and Dimensions

Depth	163 mm
Width	197 mm
Height	42 mm
Weight	907 g
