Shure MICROFLEX SERIES User Manual

2
Desktop Microphones
Shure Microflex
®
MX400D Series microphones are miniature electret
condenser gooseneck microphones with a desktop base and a 3 m (10
ft.) cable. Desktop base allows microphones to be used in multi-purpose
rooms where quick setup is required, or where permanent installation is
impractical.
• Wide dynamic range and frequency response for accurate sound
reproduction
• Interchangeable cartridges that provide a choice of polar pattern for
each application
• Programmable mute button and LED indicator
• Logic input and output terminals for remote control or use with automat-
ic microphone mixers
• Balanced, transformerless output for increased immunity to noise over
long cable runs
• RF filtering
Desktop Microphones
MX400 microphones are available with 305 mm (12 in.) or 457 mm (18 in.)
goosenecks, with or without a mute switch. They are available in supercar-
dioid, cardioid and omnidirectional polar patterns.
• "S" models include a mute button and LED.
• "D" models include a desktop base with programmable mute button and
LED and logic input and output.
• "SE" models feature a surface mount flange with side-exit cable.
The polar pattern of the included cartridge is indicated by a model number
suffix:
/C Cardioid
/S Supercardioid
/O Omnidirectional
/N Cartridge not included

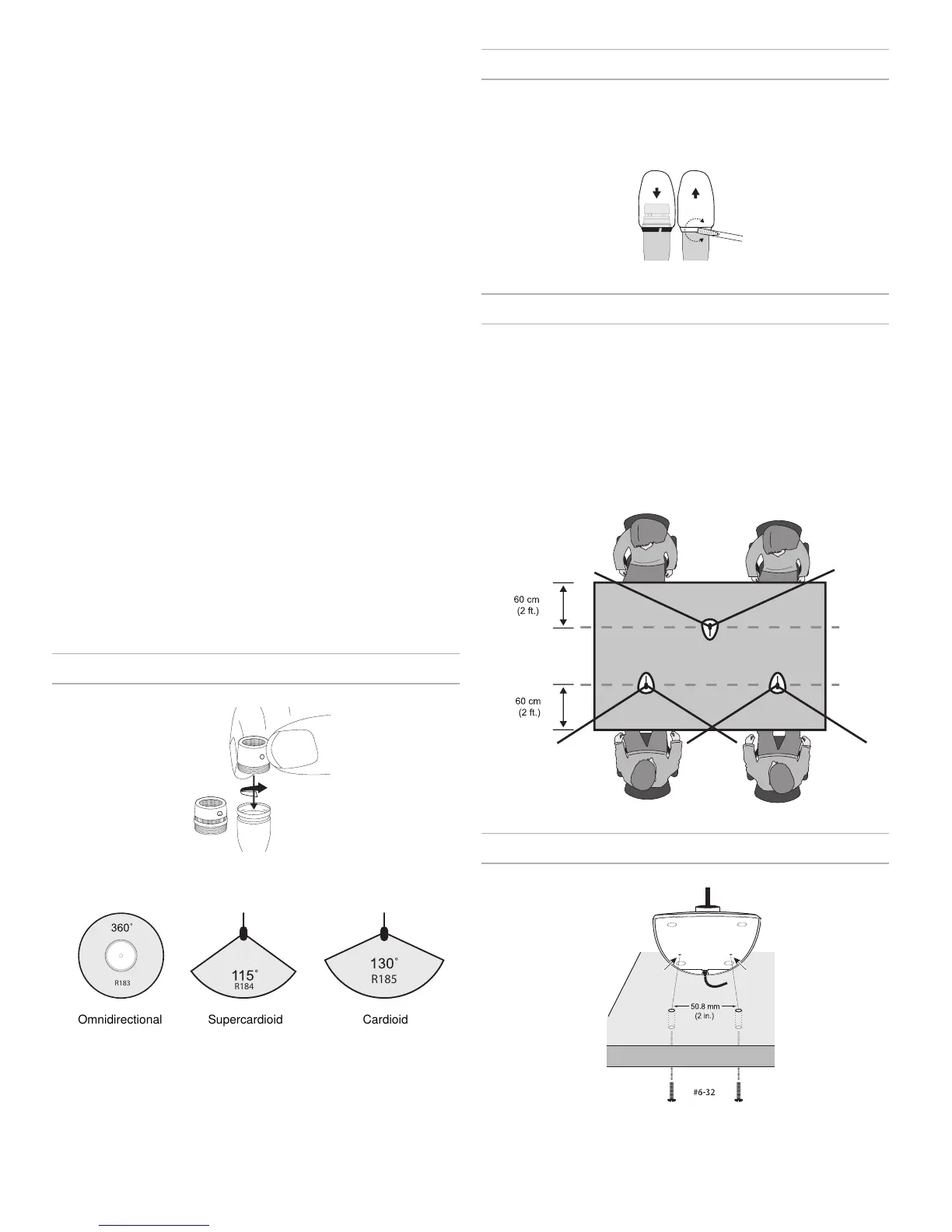

Interchangeable Cartridges
Microflex microphones use interchangeable cartridges that allow you to
choose the polar pattern for different installations.
R183
R184
R185
Omnidirectional
Supercardioid
Cardioid
Cartridge Polar Patterns
Snap-Fit Windscreen
• Snap into the groove below the cartridge.
• To remove, spread the gap with a screwdriver or thumbnail.
• Provides 30 dB of "pop" protection.
Microphone Placement
• Aim the microphone toward the desired source, such as the talker.
• Aim it away from any unwanted source, such as a loudspeaker.
• Place the microphone within 15 to 30cm (6 to 12 in.) of the desired
sound source.
• Always use the supplied windscreen or optional metal windscreen to
control breath noise.
• If four or more microphones will be open at the same time, use of
an automatic mixer, such as the Shure SCM810 or SCM410, is
recommended.
Securing to a Surface
Drill two holes in the mounting surface 50.8 mm (2 in.) apart.
Use #6-32 screws to secure the microphone.

Shure MICROFLEX SERIES Specifications

General

Type	Condenser
Dimensions	Varies by model
Polar Pattern	Cardioid, Supercardioid, Omnidirectional (varies by model)
Power Requirements	11 to 52 V DC phantom power
Connector	XLR
Weight	Varies by model
