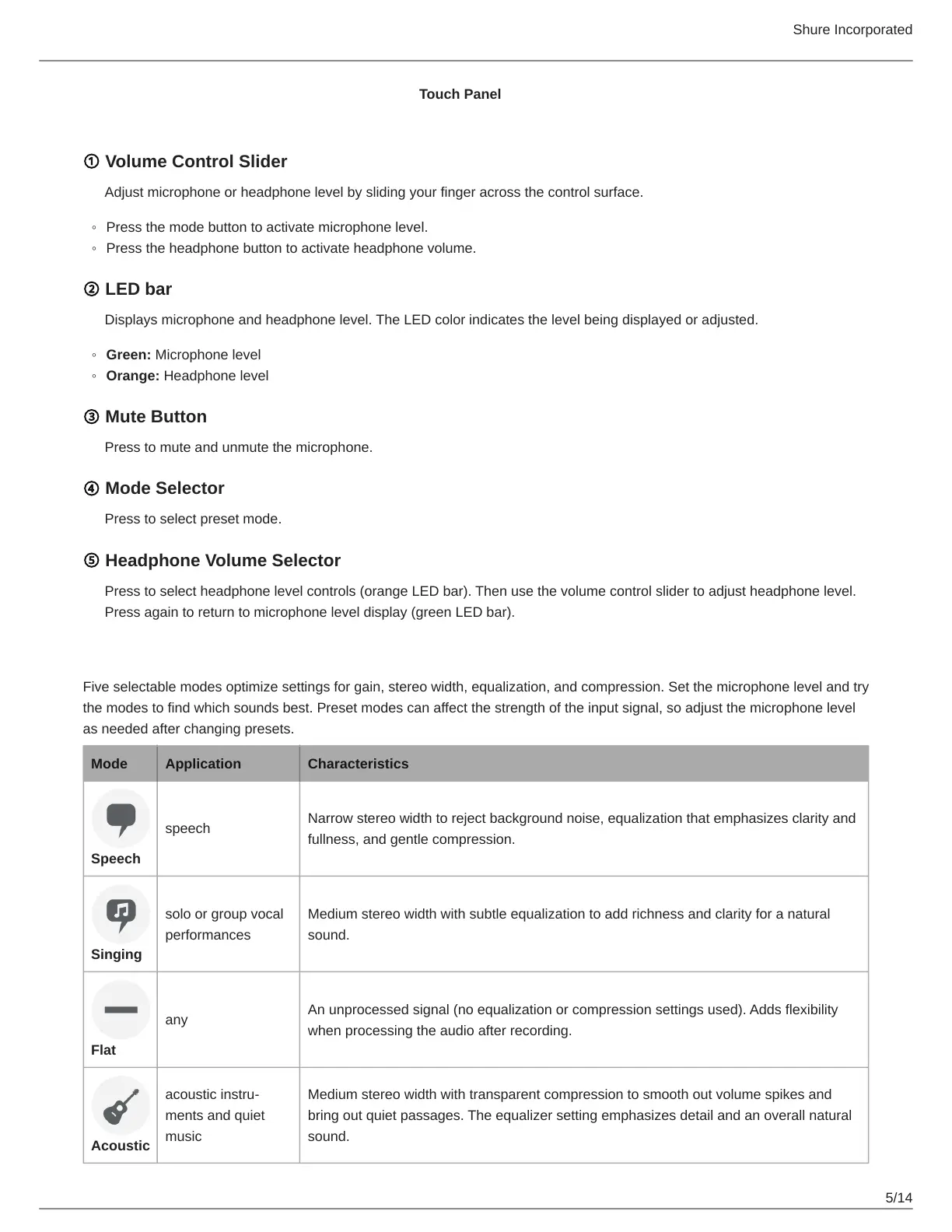

Touch Panel
① Volume Control Slider
Adjust microphone or headphone level by sliding your finger across the control surface.
Press the mode button to activate microphone level.
Press the headphone button to activate headphone volume.
② LED bar
Displays microphone and headphone level. The LED color indicates the level being displayed or adjusted.
Green: Microphone level
Orange: Headphone level
③ Mute Button
Press to mute and unmute the microphone.
④ Mode Selector
Press to select preset mode.
⑤ Headphone Volume Selector
Press to select headphone level controls (orange LED bar). Then use the volume control slider to adjust headphone level.
Press again to return to microphone level display (green LED bar).
Preset Modes
Five selectable modes optimize settings for gain, stereo width, equalization, and compression. Set the microphone level and try
the modes to find which sounds best. Preset modes can affect the strength of the input signal, so adjust the microphone level
as needed after changing presets.
Mode Application Characteristics
Speech
speech
Narrow stereo width to reject background noise, equalization that emphasizes clarity and
fullness, and gentle compression.
Singing
solo or group vocal
performances
Medium stereo width with subtle equalization to add richness and clarity for a natural
sound.
Flat
any
An unprocessed signal (no equalization or compression settings used). Adds flexibility
when processing the audio after recording.
Acoustic
acoustic instru-
ments and quiet
music
Medium stereo width with transparent compression to smooth out volume spikes and
bring out quiet passages. The equalizer setting emphasizes detail and an overall natural
sound.
