Shure Incorporated
12/25

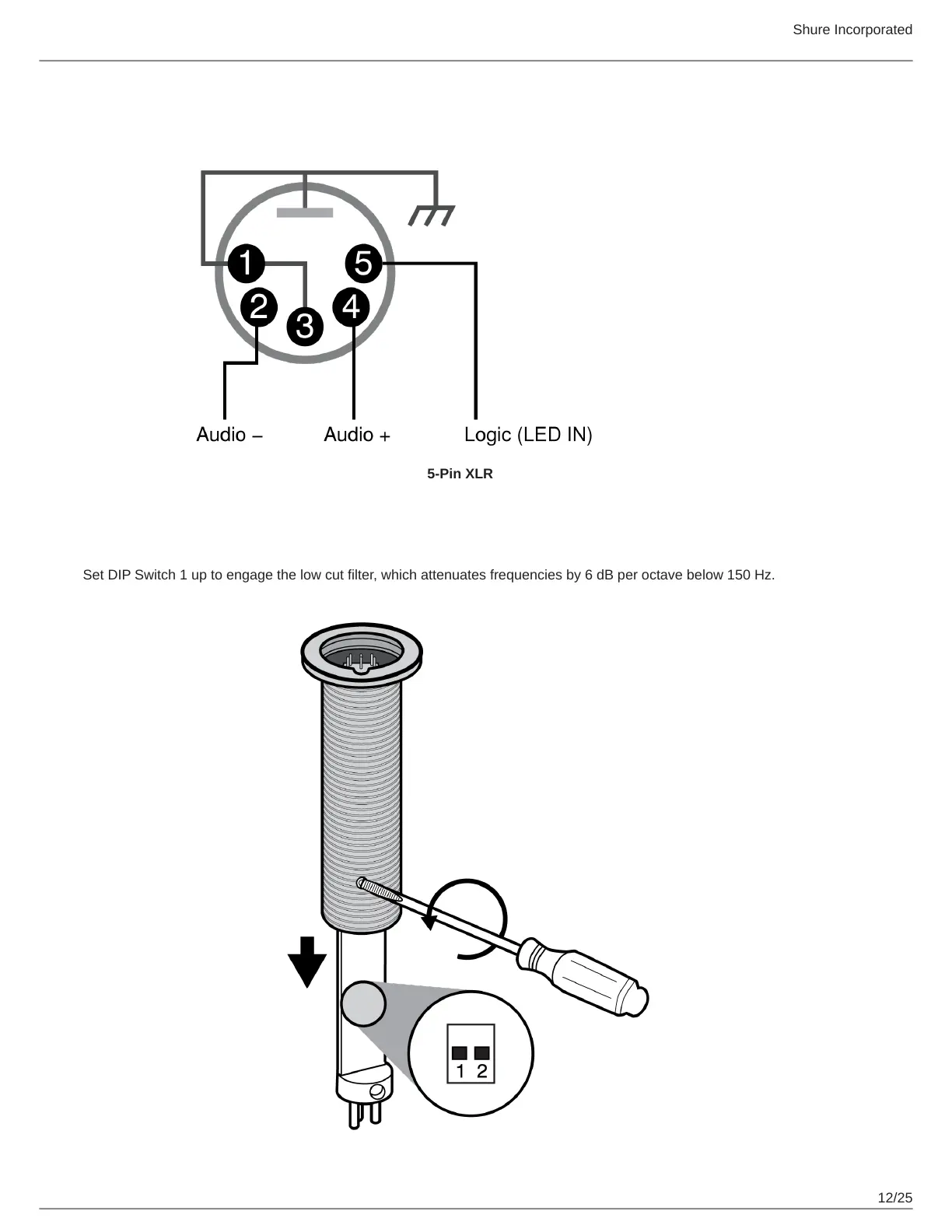

MX400SMP Pin Assignments
5-Pin XLR
DIP Switches
Set DIP Switch 1 up to engage the low cut filter, which attenuates frequencies by 6 dB per octave below 150 Hz.
