Installation

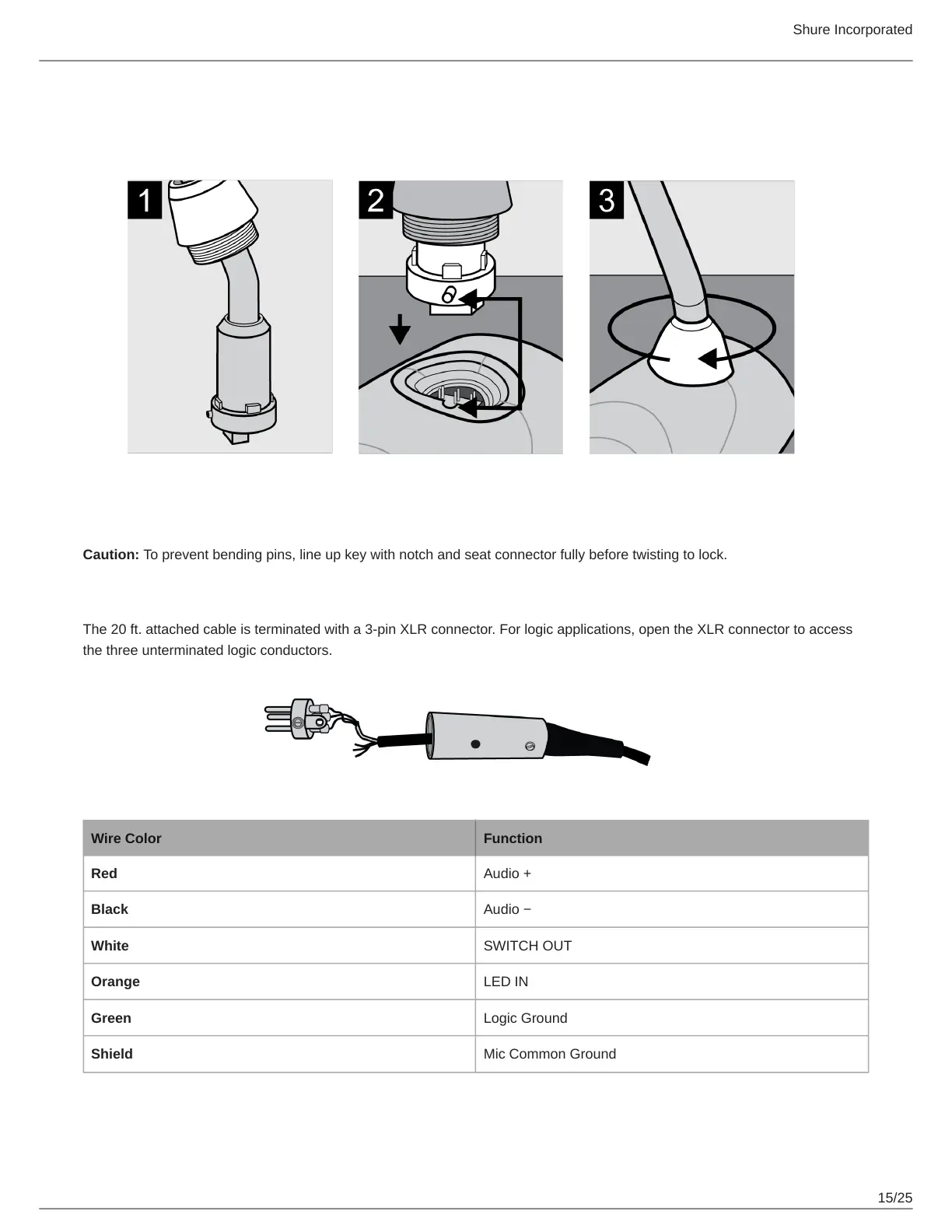

Caution: To prevent bending pins, line up key with notch and seat connector fully before twisting to lock.
Cable
The 20 ft. attached cable is terminated with a 3-pin XLR connector. For logic applications, open the XLR connector to access
the three unterminated logic conductors.
Wire Color Function
Red Audio +
Black Audio −
White SWITCH OUT
Orange LED IN
Green Logic Ground
Shield Mic Common Ground
