12
LOGIC I/O
LOGIK EIN/AUS
E/S LOCGICAS
I/U LOGICI
ORANGE
NARANJA
ARANCIA
WHITE BLANC
WEIß BLANCA
BIANCA
GREEN VERT
GRÜN VERDE
VERDE
BLACK
RED
WHITE/SHIELD
MEMBRANE
SWITCH
A.C.
V
oltage
D.C. V
oltage
A.C. V
oltage, Mic Of
f
D.C. V
oltage, Mic Of
f
Printed Clrcuit Ground
Case Ground
(+)
/ (–) indicate A.C. polarity relative to input test signal.

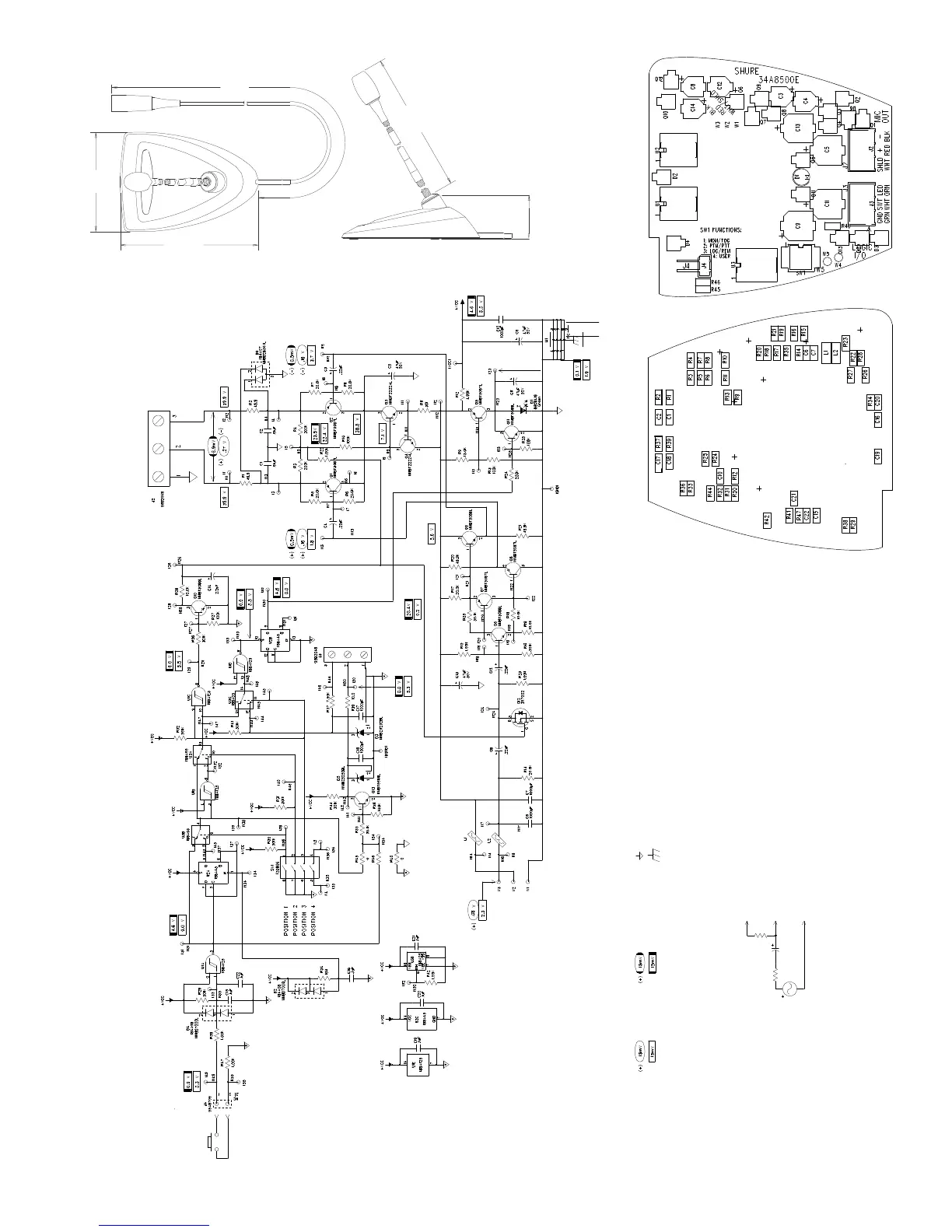

NOTES:
1. All
resistors1/10 W
att, 1%, 0805 unless otherwise specified.
2. Electrolytic
capacitors shown in
µF,
±
10%, 50V or more, unlss otherwise spe
-
cified.
3. The following symbols denote:
4. All
voltages measured with input driven by a
0.1 V
rms, 1kHz signal through the test
circuit shown below. The test circuit is powered by a standard 48V phantom power
supply connected to J2, with a 1 kohm load across J2 pins 2 and 3. A Shure M367
mixer or equivalent, with 48 V phantom power switched on, supplies the required
power and load.
102.1
mm
(4 9/16 in.)
50.8 mm
(2 1/32 in.)
161.9 mm
(6 3/8 in.)
355.4 mm
(14 in.)
3.0 m
(10 ft)
0.1 V
rms
1 kHz
TEST CIRCUIT
W2
W3
W1
30.1 K
1.82 K
10
µF
, 10V
FIGURE
5
•
FIGUR
E 5
•
ABBILDUN
G 5
•
FIGUR
A 5
•
FIGUR
A 5
FIGUR
E 6
•
FIGUR
E 6
•
ABBILDUNG 6
FIGUR
A 6
•
FIGUR
A 6
FIGUR
E 7
•
FIGUR
E 7
•
ABBILDUN
G 7
•
FIGUR
A 7
•
FIGUR
A 7
FROM CARTRIDGE
DE LA CARTOUCHE
DEL CARTUCHO
DALLA CARTUCCIA
ON DER KAPSEL
MIC OUT
USCIT
A MICROFONO
SALIDA
DE MICROFONO
MIKRO AUS
SOR
TIE MICRO
BLAC
K N
OI
R S
CHWARZ
NEGR
O N
ERO
RED ROUGE ROT
ROJO ROSSO
WHITE/SHIELD
BLANC/BLINDAGE
BLANCO/BLINDAJ
BIANCO/SCHERMA
TURA
E/S LOGIQUE
