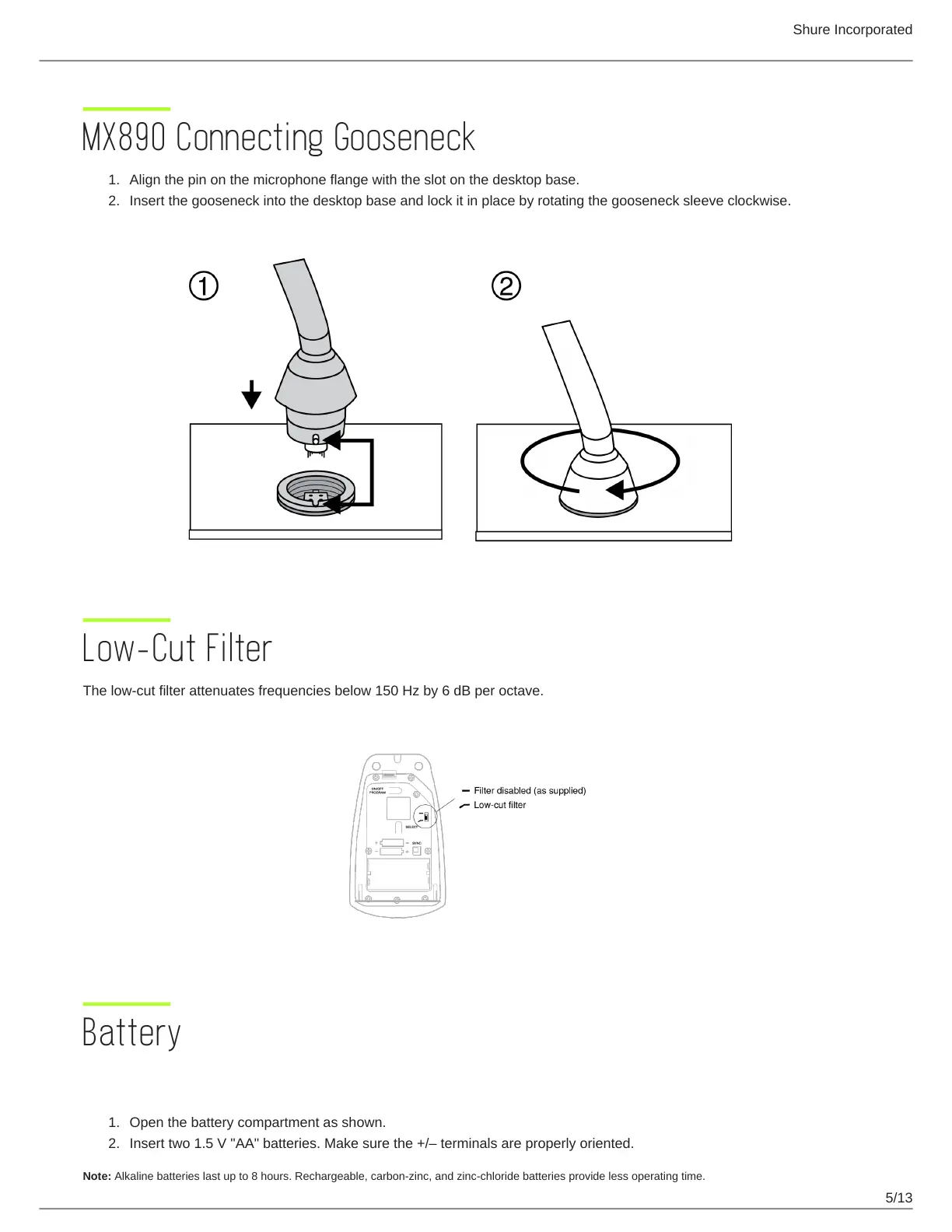

MX890 Connecting Gooseneck
Align the pin on the microphone flange with the slot on the desktop base.
Insert the gooseneck into the desktop base and lock it in place by rotating the gooseneck sleeve clockwise.
Low-Cut Filter
The low-cut filter attenuates frequencies below 150 Hz by 6 dB per octave.
Battery
Installation
Open the battery compartment as shown.
Inserttwo1.5V"AA"batteries.Makesurethe+/–terminalsareproperlyoriented.
Note: Alkaline batteries last up to 8 hours. Rechargeable, carbon-zinc, and zinc-chloride batteries provide less operating time.
