Shure PGX Wireless Quick Setup

Shure Incorporated
5/21
⑤ Infrared (IR) port
Sends IR signal to transmitter for sync.
⑥ sync button
Press to synchronize transmitter with receiver group and channel settings.

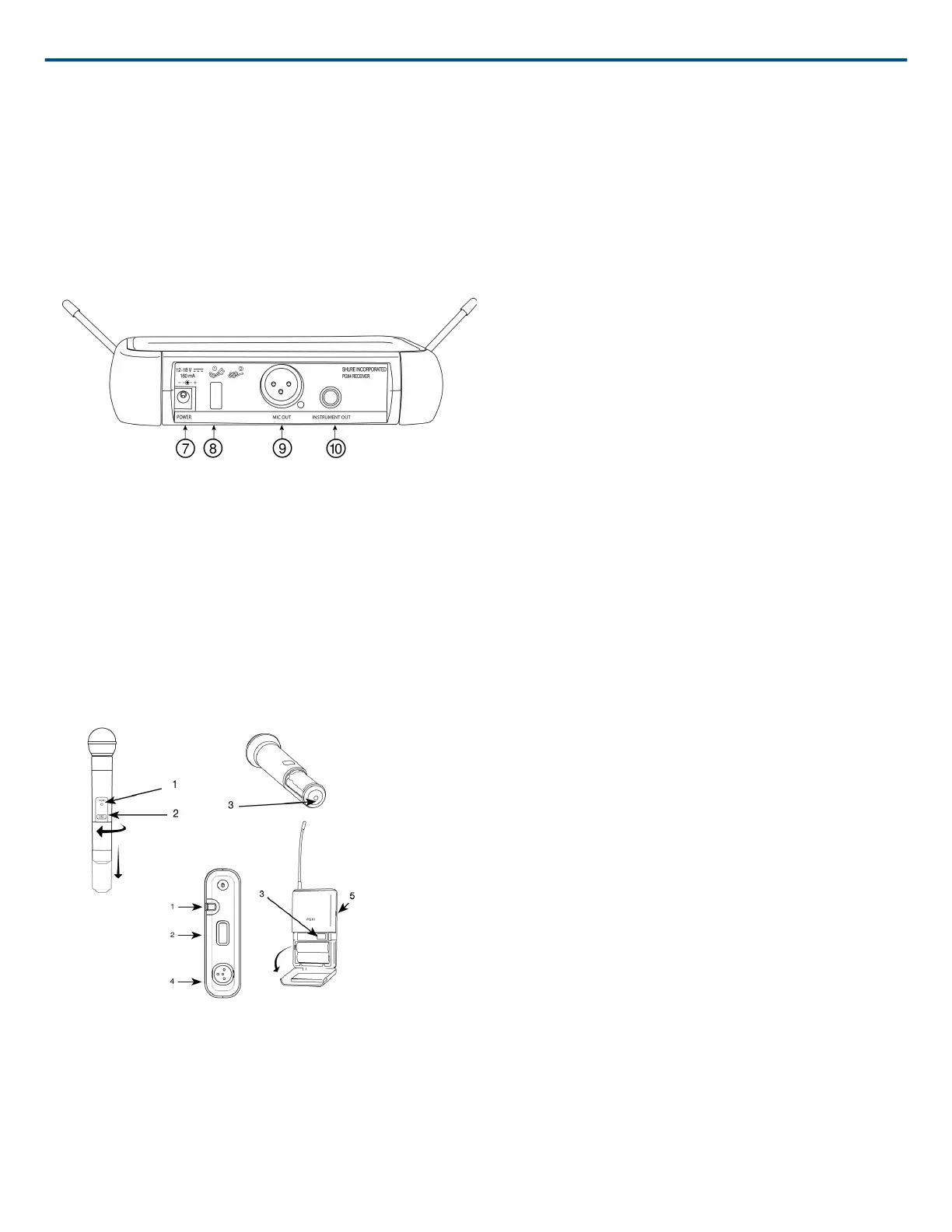

Back Panel
⑦ AC adapter jack
⑧ Adapter cord tie-off
⑨ XLR microphone output jack
⑩ 6.35 mm (1/4”) instrument level output jack (unbalanced).
Transmitter Controls and Connectors
① Indicator LED Displays battery level, mute, and IR transmission status (see table).
② Power / Mute Switch Press to mute or unmute. Press and hold to power on or off.
③ Infrared (IR) port Receives infrared beam to synchronize frequencies. When using
multiple systems, only one transmitter IR port should be exposed at a time.
