Shure PGX Wireless - PGX1 Bodypack Transmitter Operation; Wearing the PGX1 Bodypack Transmitter; PGX1 Transmitter Changing Batteries; PGX1 Transmitter Adjusting Gain

Shure Incorporated
6/21
④ 4-Pin Microphone Input Jack.
⑤ Audio Gain Adjustment.

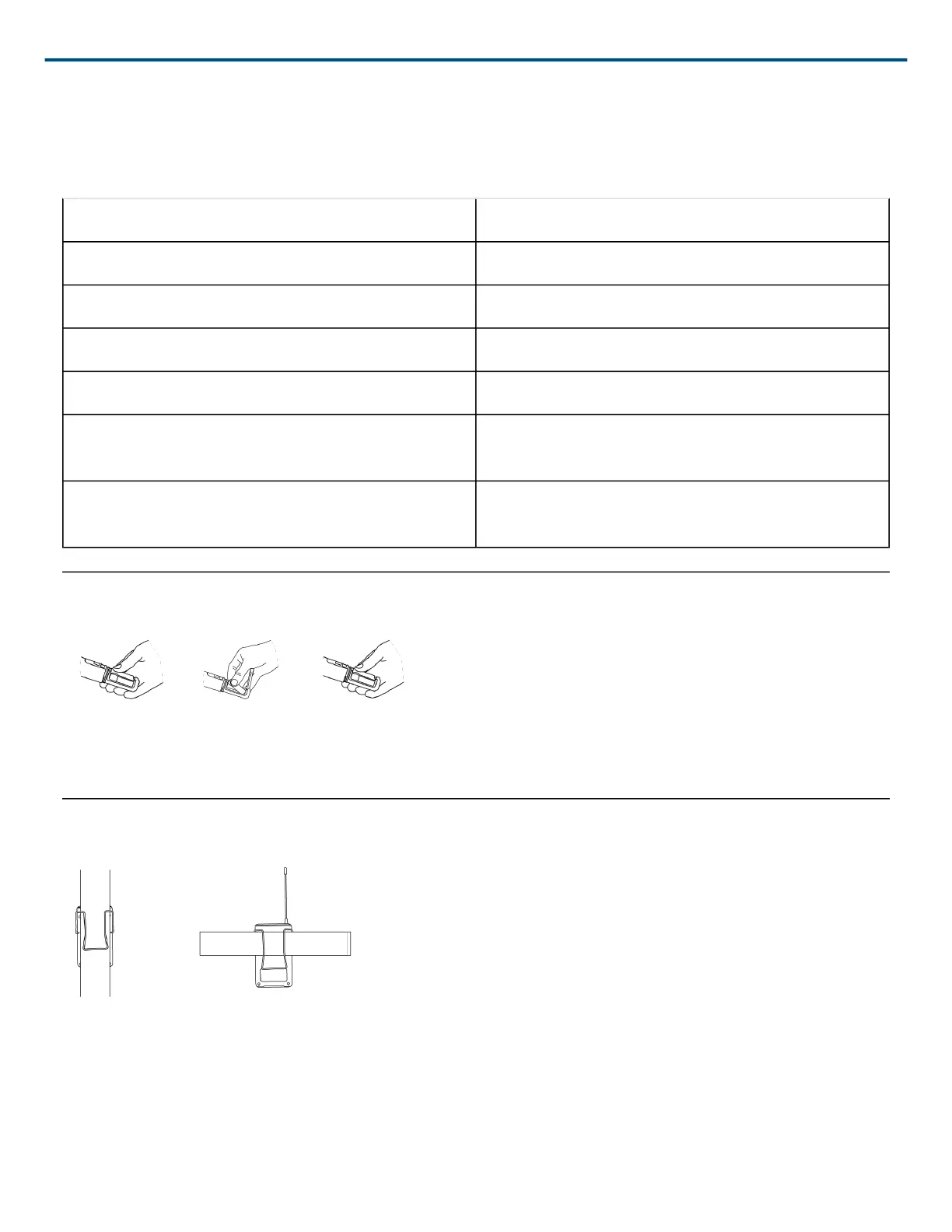

Transmitter Indicator LED
Green Ready
Flashing green Controls Locked
Amber Mute On
Flashing red IR transmission in process
Glowing red Battery power low
Pulsing Red on startup Batteries dead (transmitter cannot be turned on until
batteries are changed)
Pulsing Red after synchronization Transmitter and receive incompatible; contact your
Shure reseller
Changing Batteries
• Expected life for an Alkaline battery is approximately 8 hours.
• When the transmitter light glows red, the batteries should be changed immediately, as shown.
Wearing the Bodypack Transmitter
Clip the transmitter to a belt or slide a guitar strap through the transmitter clip as shown.
For best results, slide the transmitter until the belt is pressed against the base of the clip.
