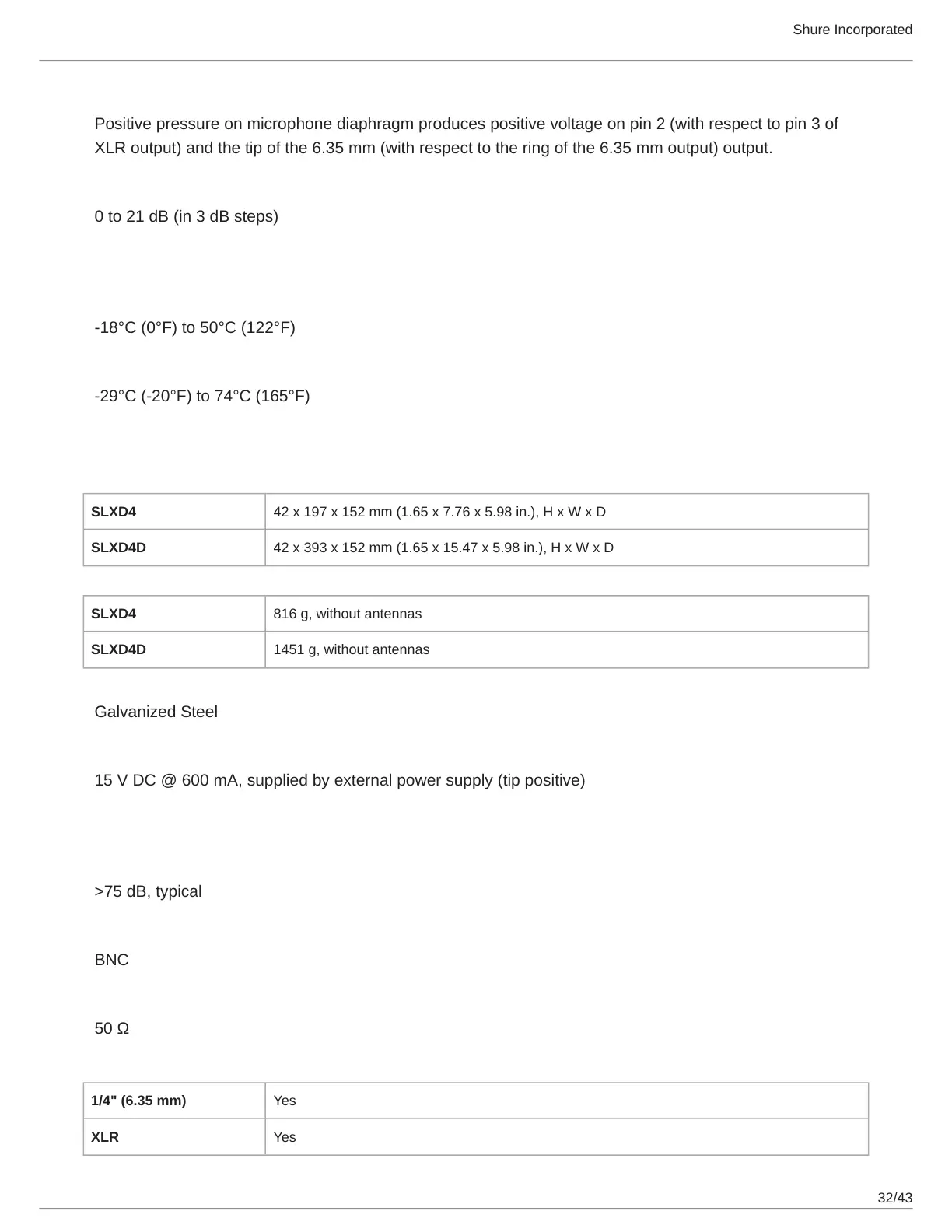

System Audio Polarity
Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of
XLR output) and the tip of the 6.35 mm (with respect to the ring of the 6.35 mm output) output.
Mic Offset Range
0to21dB(in3dBsteps)
Temperature Range
Operating Temperature Range
-18°C (0°F) to 50°C (122°F)
Storage Temperature Range
-29°C (-20°F) to 74°C (165°F)
SLXD4 / SLXD4D
Dimensions
SLXD4 42x197x152mm(1.65x7.76x5.98in.),HxWxD
SLXD4D 42x393x152mm(1.65x15.47x5.98in.),HxWxD
Weight
SLXD4 816g,withoutantennas
SLXD4D 1451g,withoutantennas
Housing
Galvanized Steel
Power Requirements
15VDC@600mA,suppliedbyexternalpowersupply(tippositive)
RF Input
Spurious Rejection
>75dB,typical
Connector Type
BNC
Impedance
50Ω
Phantom Power Protection
1/4" (6.35 mm) Yes
XLR Yes
