Shure UA844 - Connecting Multiple UA844 Systems; System Interconnection Diagram

11

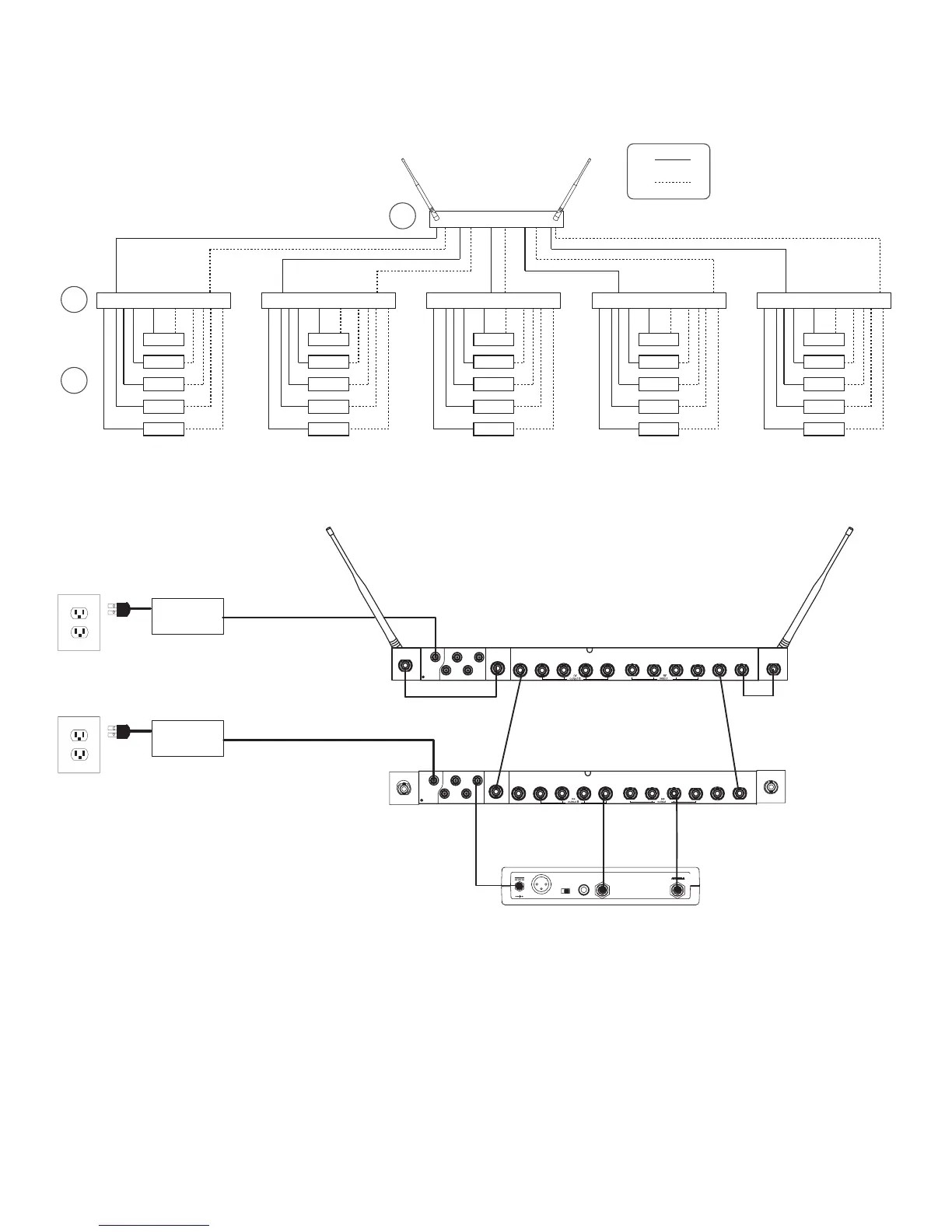

Connecting Multiple UA844 Systems
① Connect additional systems to the A/B ports of the top level UA844.
② Connect additional systems on the second level to the A and B antenna inputs.
③ Connect each receiver (RX) to the A/B output port pairs on the UA844.
UA844
RX
RX
RX
RX
RX
UA844
RX
RX
RX
RX
RX
UA844
RX
RX
RX
RX
RX
UA844
RX
RX
RX
RX
RX
UA844
RX
RX
RX
RX
RX
UA844
A
B
1
2
3
PS
PS
RF OUT ARF OUT B
RF OUT B
RF OUT A
POWER
A
A
ANT B IN
ANT A IN
UA844
UA844
RX
Rear panel connections for each level of RF and power distribution
