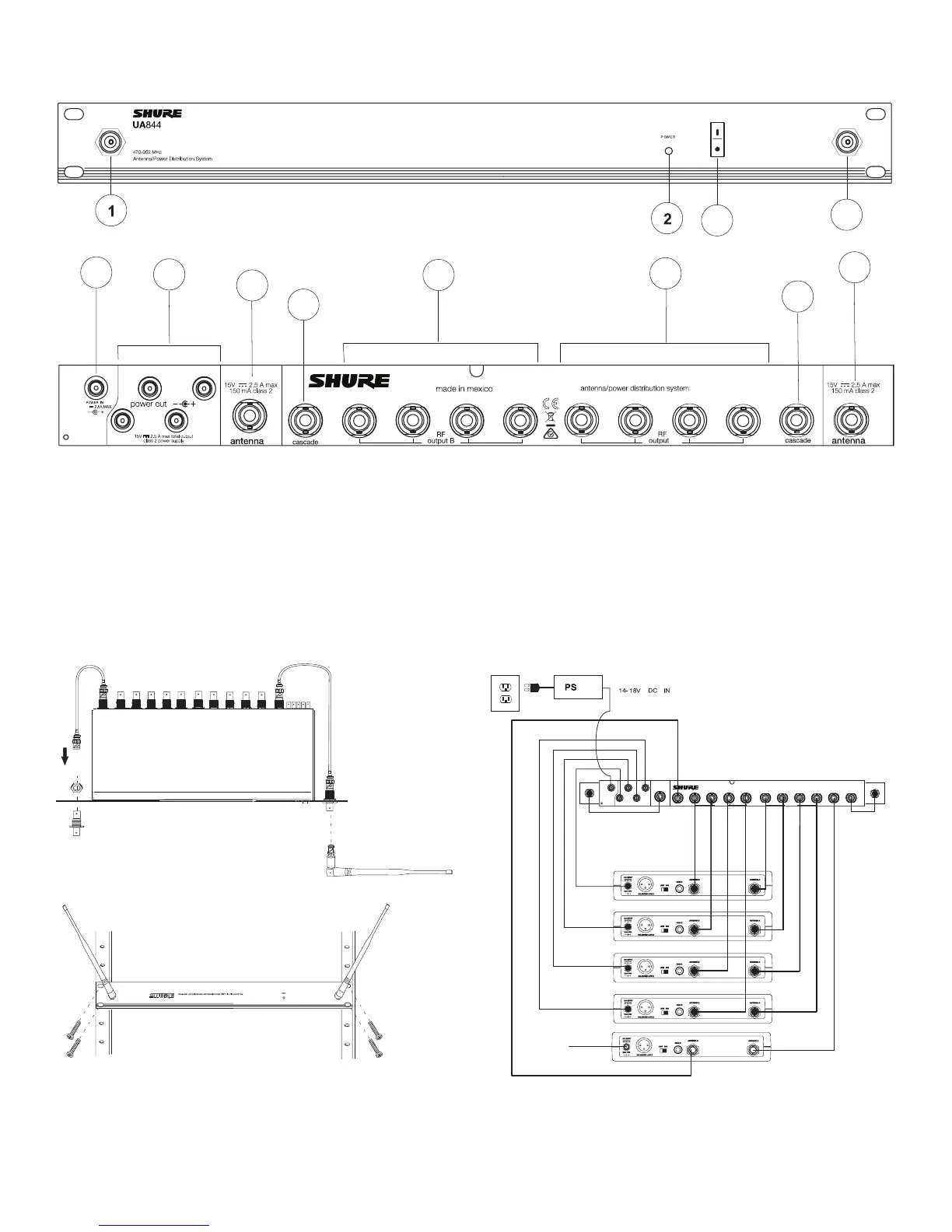

FRONT AND REAR PANELS
① Antenna A Connector
② Power Indicator
③ Power Switch(country dependent)
④ Antenna B Connector
⑤ 15 V dc (2.54 A) power input
⑥ Power Output for receivers. Do not connect to additional distribution systems
⑦ RF Input Antenna B
⑧ Cascade (2)
⑨ RF Output B
⑩ RF Output A
⑪ RF Input Antenna A
INSTALLATION CABLE CONNECTIONS (ONE UA844)
ULXP4 ULXP4 ULXP4 ULXP4
UA844
*
*The 5th receiver will
need its own power.
