3. Screen Overview

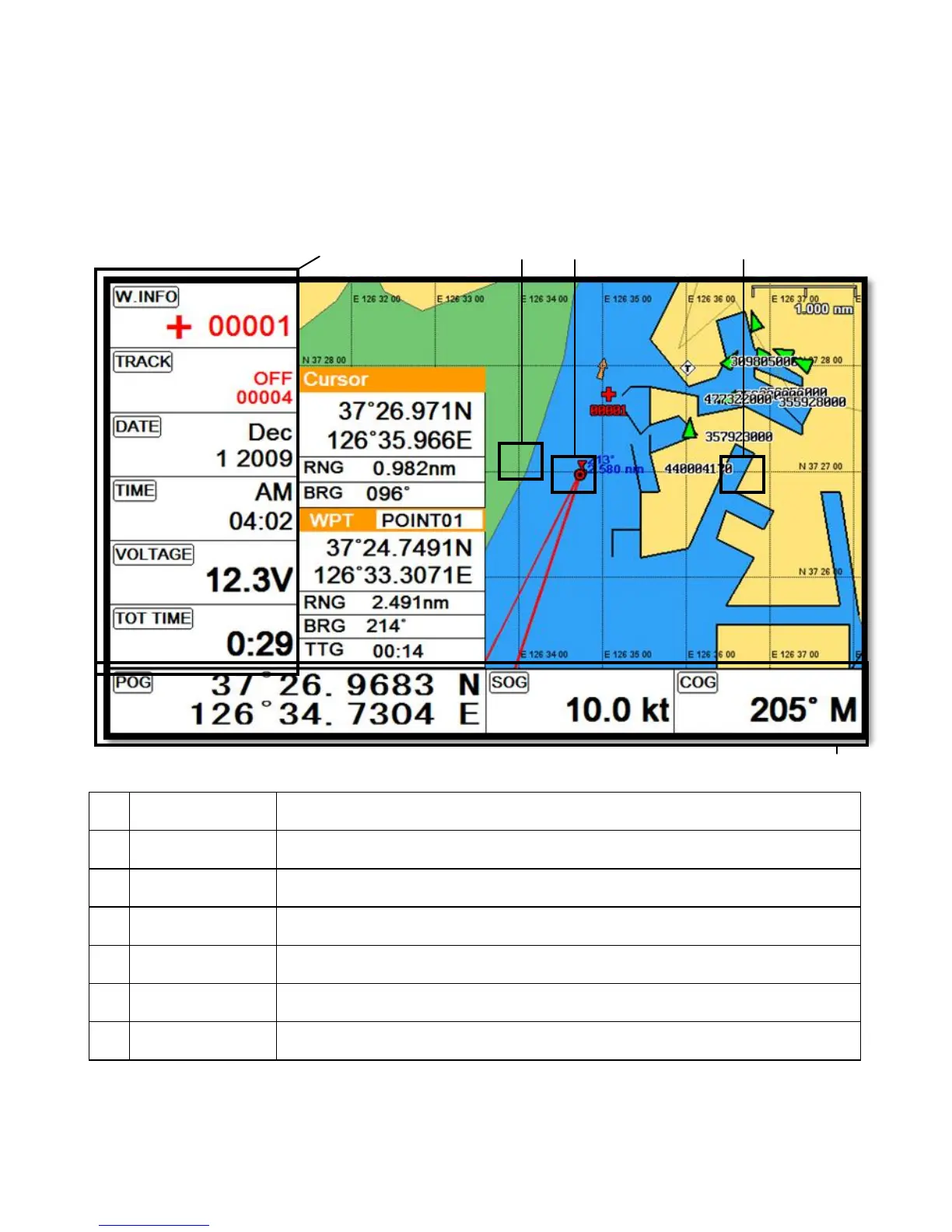

3.1. Chartplotter page
①
Vessel icon
The present position.
②
Cursor
Showing the cursor icon.
③
AIS target
Showing the received AIS target.
④
Databar
Showing various data on the top or bottom.
⑤
Sidebar
Showing various data on the right or left.
⑥
Cursor INFO
The information of the cursor.
⑦
WPT INFO
The information of WPT such as LAT/LOT, Range, etc.
