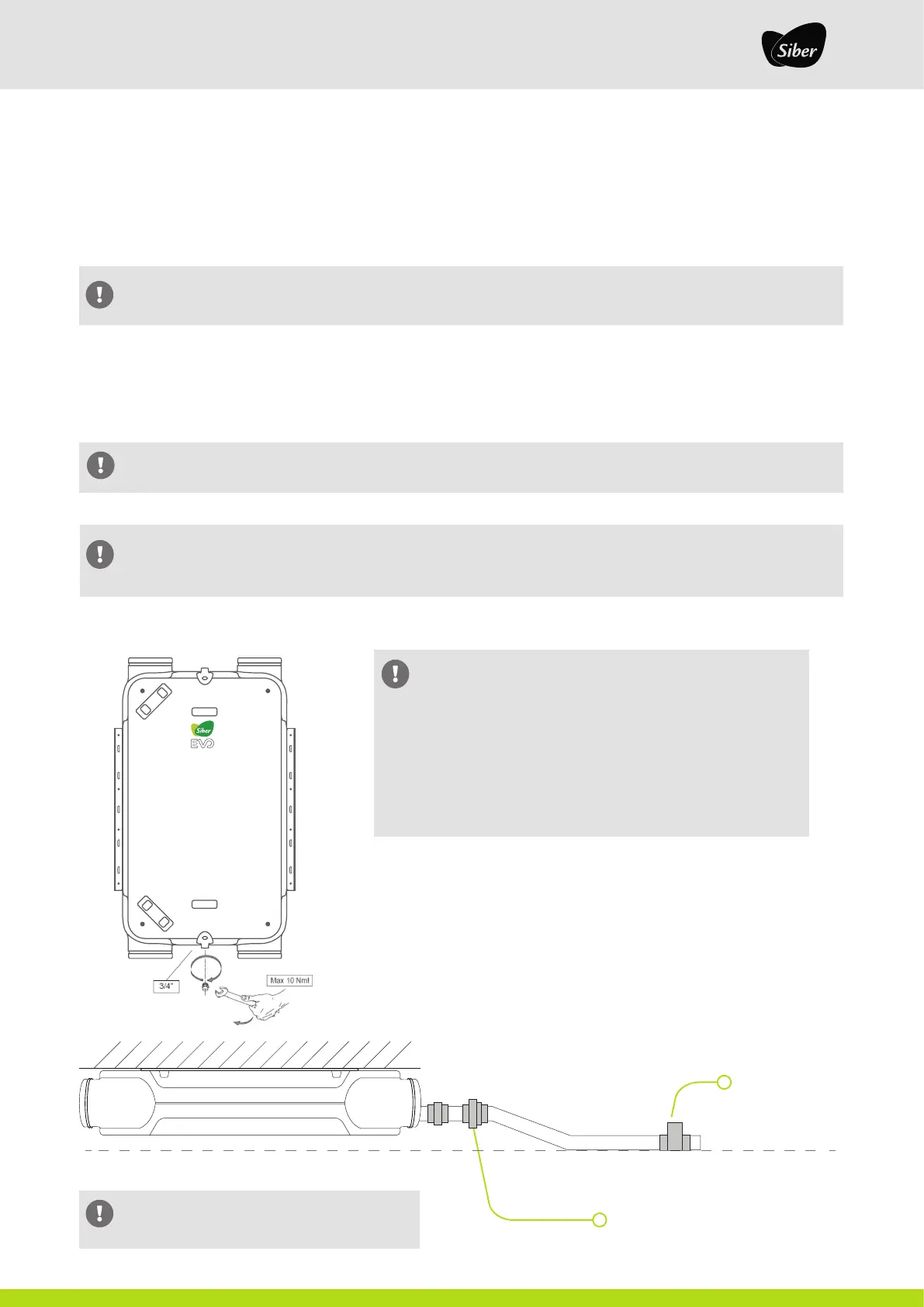

7 CONNECTION OF THE CONDENSATE DRAIN
The SIBER DF EVO 1/2 must always be fitted with a condensate drain. Condensation water must be drained off.
The ¾" male threaded condensate drain connection fitting (not included with the Unit) must be screwed by the installer into the
condensate tank of the Unit.
Important! Always use a detachable condensate drain connection between the trap and the unit for proper maintenance.
The condensate drain pipe can be fitted underneath. The installer can adjust the condensate drain into the desired position. The drain
must end at the trap water level.
Use a 32 mm diameter condensate drain pipe.
In the case of a ceiling installation, make sure that the condensate drainage is below the level of the SIBER DF EVO 1/2.
¡IMPORTANT! A removable connection is required
for the mounting.
Detachable fitting
Trap
Difference of level of the
exhaust duct compared to
the Siber DF EVO
Note: Only one condensate drain is connected, the other drain must remain closed with the plug. In the case of the Siber DF
EVO 1/2 Enthalpic ,the two drains must be closed with two plugs, it is not necessary to connect to the condensate drain.
Note:
In the case of ceiling installation: Install the condensate trap in the
drain on the side of the ducts leading to the outside. The other drain
should be covered with the plug.
In the case of a wall installation: Install the condensate trap in the
bottom drain of the device. The other drain should be covered with the
plug.
