I 9
SIBER DF EVO

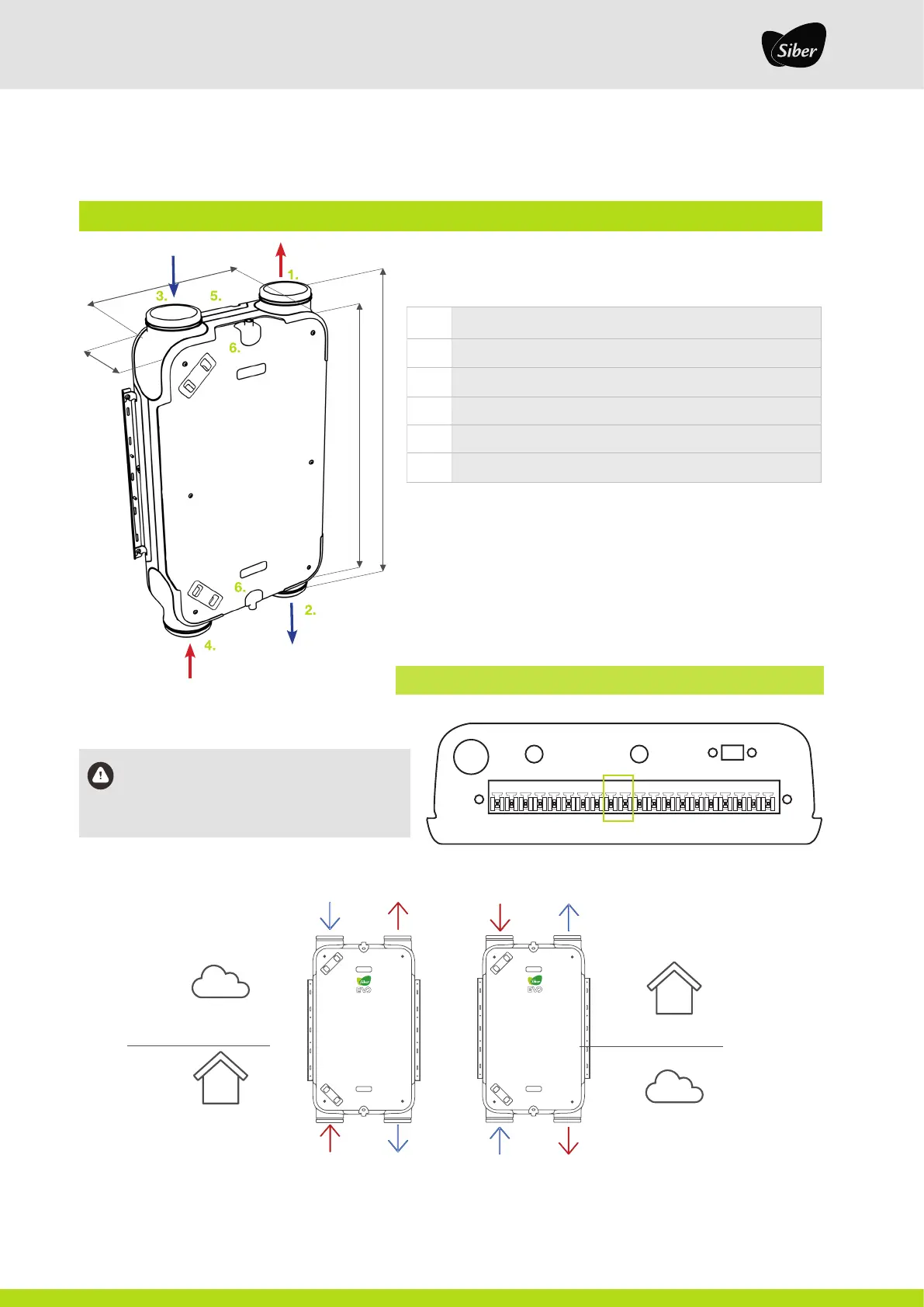

3.3 CONNECTIONS AND DIMENSIONS
210 mm
600 mm
1100 mm
1000 mm
Important! To change the factory position (right),
simply jumper wire pins 9 - 10 and you will enter
the left-hand version
1 2 3 4 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19 20
LEGEND STANDARD VERSION
1 Exhaust air
2 Fresh air supply to the dwelling
3 Fresh air intake from outside
4 Extraction of stale air from inside the dwelling
5 Electrical connection
6 Condensate drain connection
*Airflow model right-hand version
MIRROR MODE VERSATILITY
Fresh air
intake from
outdoors
Expulsion of
stale air to
outdoors
Air extraction from
bathrooms and
kitchen
Air supply to
the rooms
Fresh air
intake from
outdoors
Expulsion of
stale air to
outdoors
Air extraction
from bathrooms
and kitchen
Air supply to
the rooms
right
(Factory version)
left
(Mirrored mode)
inside outside
outside inside
