Sices ATS115 - ATS Controller Main Functions; Front Panel Controls and Indicators

ATS115-ATS115Plus User’s Manual 7

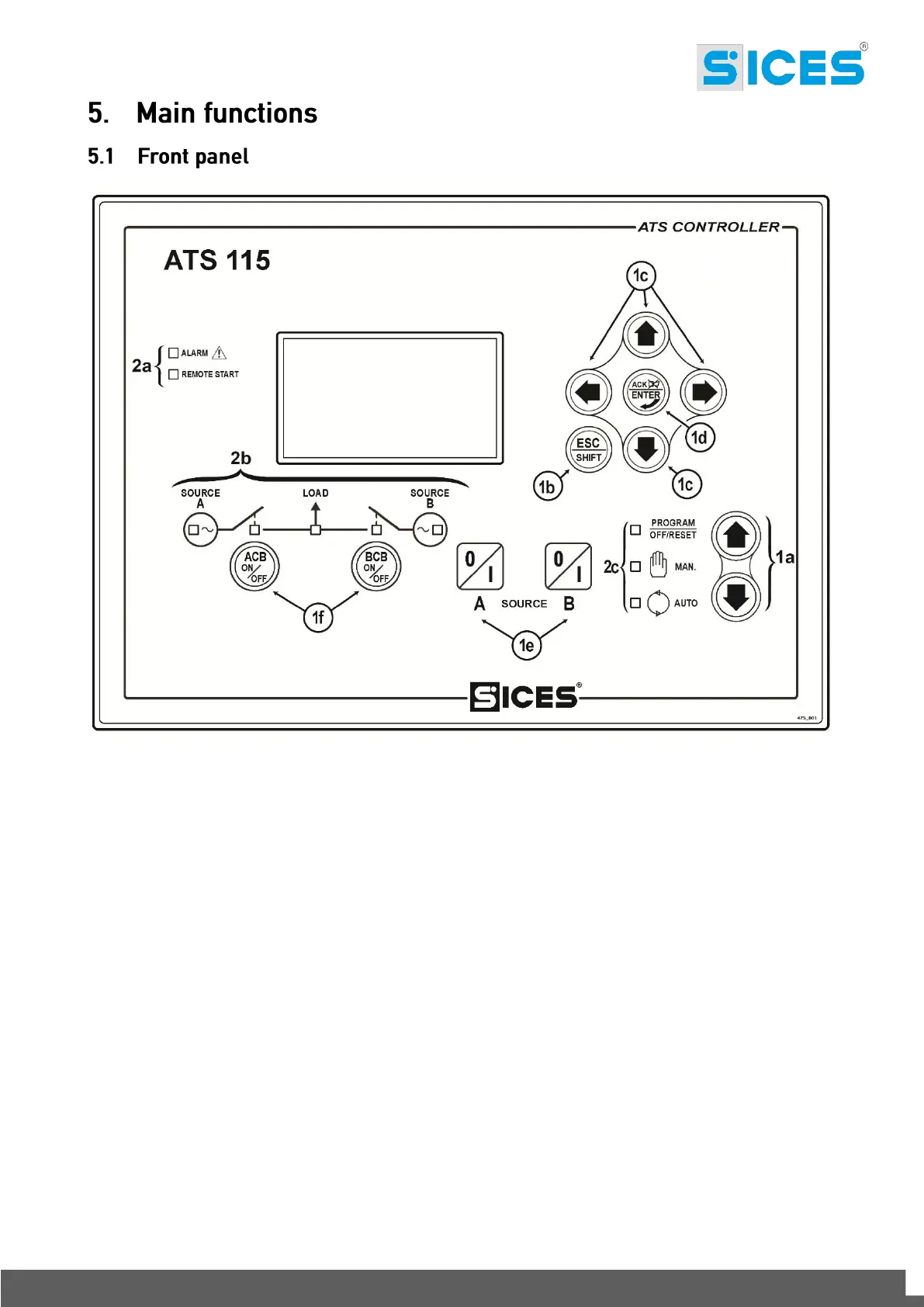

Fig. 1 –ATS115-ATS115
Plus
Front Panel
ATS115-ATS115
Plus
KEY
1 – Buttons
2 – Light indicators
The controls are made up of 12 buttons (1a, 1b, 1c, 1d, 1e, 1f).
In addition, on the front panel there are light indicators (2a, 2b, 2c).
