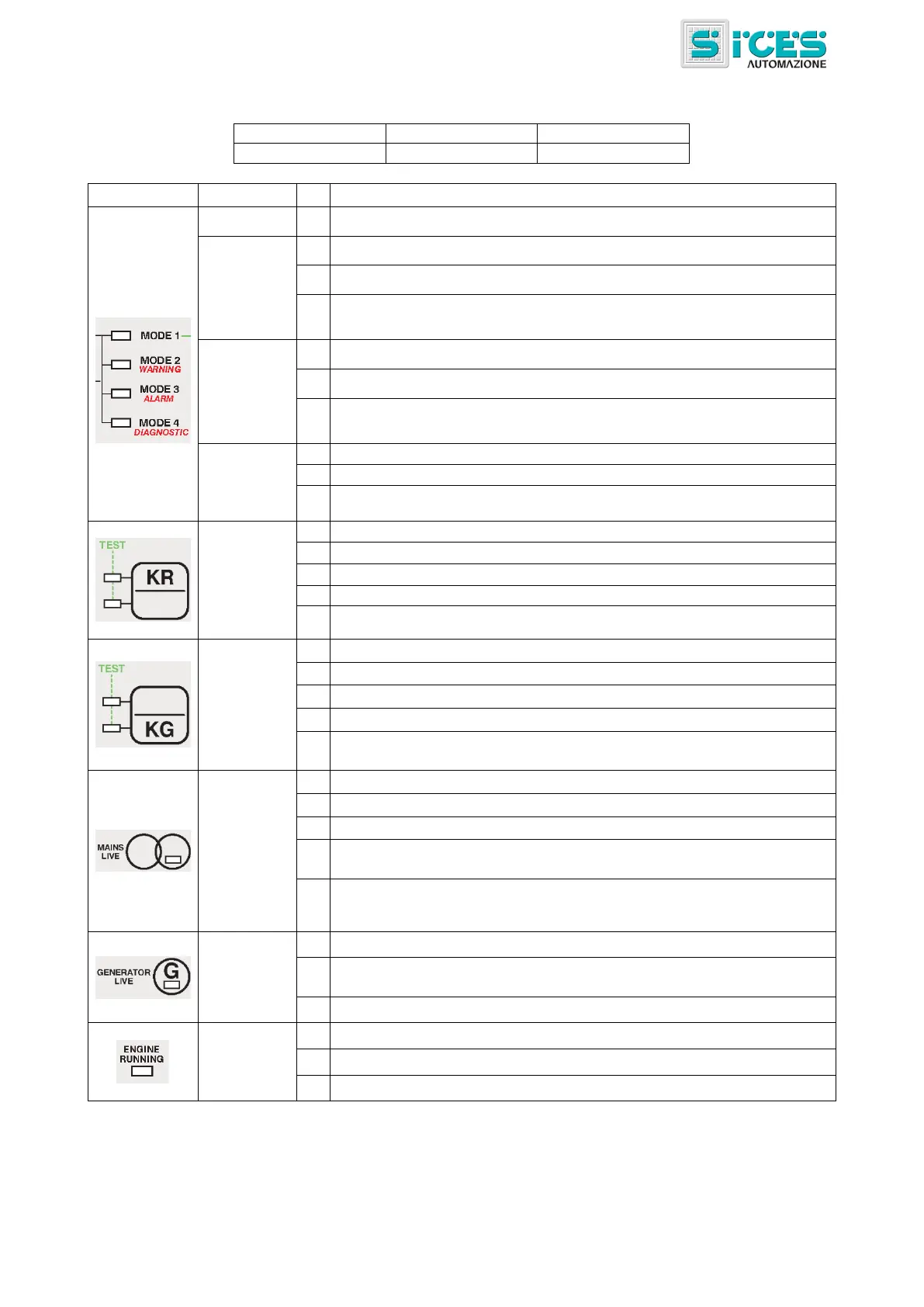

2.3 Indicator lights
LED OFF
LED steady ON
LED flashing
  
Signaling Function
MODE 1

The display is showing the pages of “MODE1”.
MODE 2
Warning

The display is showing the pages of “MODE 2”.

There is at least one active warning.

If a warning is active and the display shows a “MODE 2” page, it will flash at a
rate of 75% ON.
MODE 3
Alarm

Indicates that the display is showing a “MODE 3” page.

Indicates at least one power-off or one lockout condition.

If there is a power-off or a lockout and the display shows a “MODE 3” page, it
will flash 75% ON and 25%. OFF.
MODE 4
Diagnostics

Indicates that the display is showing a “MODE 4” page.

Indicates that at least one diagnostic code has been received from the engine.

If a diagnostic code is present and the display shows a “MODE 4” page, the
indicator light will flash at a rate of 75% ON.
KR

The KR is OPEN

The KR is CLOSED

Flashing at 25% ON if the KR is open after a closing command.

Flashing at 75% ON if the KR is closed after an opening command.

During a test run of the engine, the KR indicator light flashes at an ON/OFF rate
of 50%.
KG

The KG is OPEN

The KG is CLOSED

Flashing at 25% ON if the KG is open after a closing command.

Flashing at 75% ON if the KG is closed after an opening command.

During a test run of the engine, the KR indicator light flashes at an ON/OFF rate
of 50%.
MAINS LIVE

No mains power

Mains power steadily within the tolerance range

Flashing (50%) during transition between the previous two states.

Flashes at a rate of 25% ON after an inhibition command if there is no mains
power,

otherwise it flashes at 75% ON.
GENERATO
R LIVE

Generator voltage and frequency are not present.

Generator voltage and frequency are present and steadily within the tolerance
range.

Flashing (50%) during transition between the previous two states.
ENGINE
RUNNING

The engine is idle

The engine is running

Cooling phase
