SICK deTec4 Mounting Instruction

Pin Wire color
1)
s S
ender r Receiver
4 Yellow Not assigned In4
EDM (EDM input) or muting
signal 1
5 Gray In2 (laser alignment aid
but
ton)
OSSD1
6 Pink In1
(laser alignment aid
switch/cascade synchro‐
nization input)
OSSD2
7 Blue 0 V DC (voltage supply
in
put)
0 V DC (voltage supply
input)
8 Red Com1
(Single system or host:
sender/receiver communi‐
cation
Guest: cascade communi‐
cation)
Com1
(S
ingle system or host:
sender/receiver communi‐
cation
Guest: cascade communi‐
cation)
1)
Applies to the extension cables recommended as accessories.
Extension connection (M12, 5-pin)
21
4
3
5

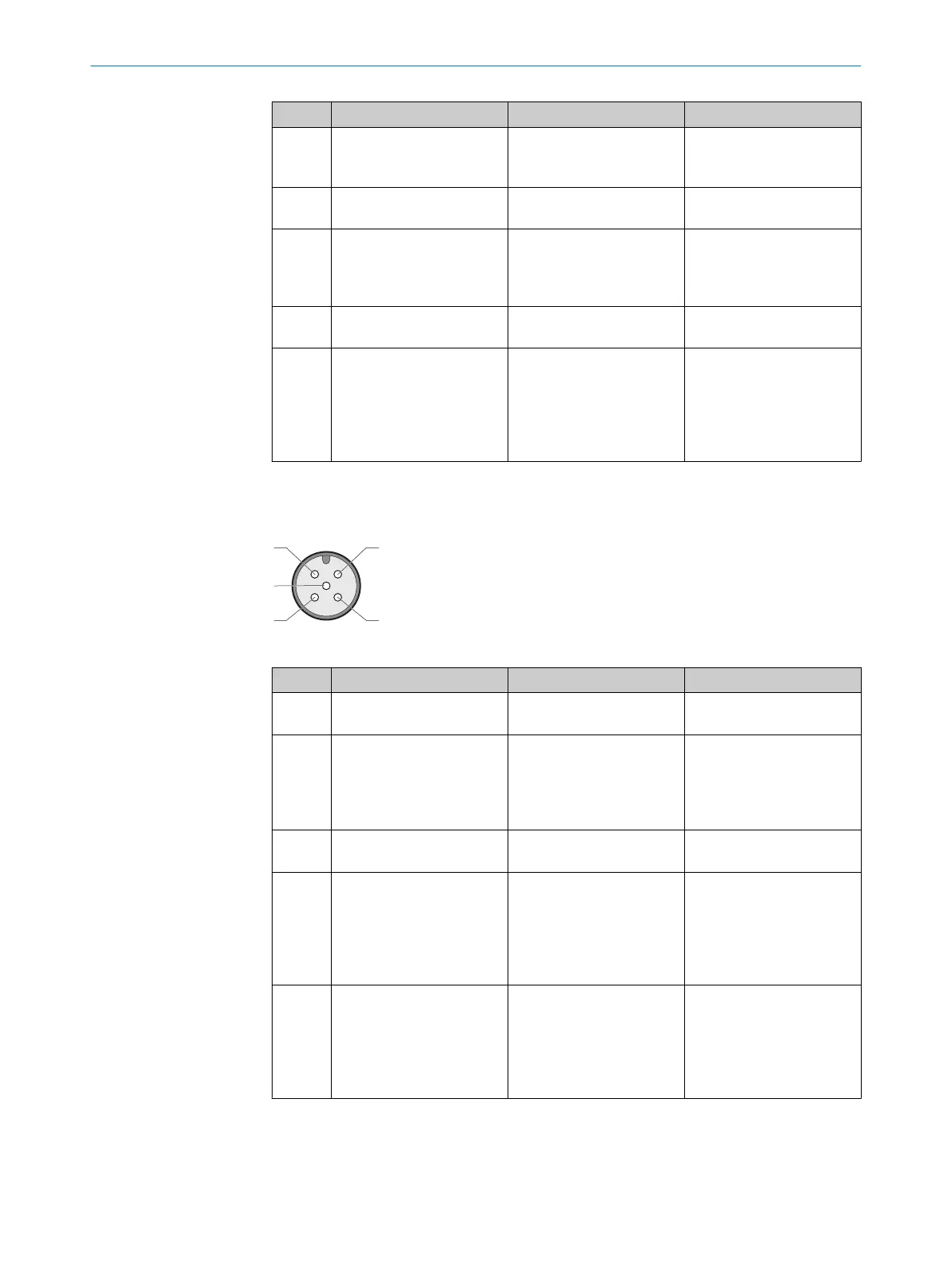

SP1 system plug extension connection pin assignment (M12 female connector, 5-pin)
Pin Wire color
1)
s S
ender r Receiver
1 Brown 24 V Out (voltage supply
output)
2)
24 V Out (voltage supply
output)
2)
2 White Not assigned In1
(Single system or last
guest: EDM [EDM input]
Host or first of 2 guests:
OSSD input)
3 Blue 0 V Out (voltage supply out‐
put)
0 V Out (voltage supply out‐
put)
4 Black Sync-Out (cascade synchro‐
ni
zation output)
In2
(Single system or last
guest: RES [reset pushbut‐
ton input]
Host or first of 2 guests:
OSSD input)
5 Gray Com2 (cascade communi‐
c
ation)
Com2
(Single system or last
guest: ADO [application
diagnostic output] / IO-Link
Host or first of 2 guests:
cascade communication)
1)
Applies to the extension cables recommended as accessories.
2)
Only for cascading deTec devices, not suitable for connecting other devices.
MOUNTING INSTRUCTIONS
8022020/ZYO3/2018-05-15 | SICK M O U N T I N G I N S T R U C T I O N S | deTec4
17
Subject to change without notice
