Symbology Reading Control

Operating Instructions

IDM corded & IDM Bluetooth

8017159/2014-04-24

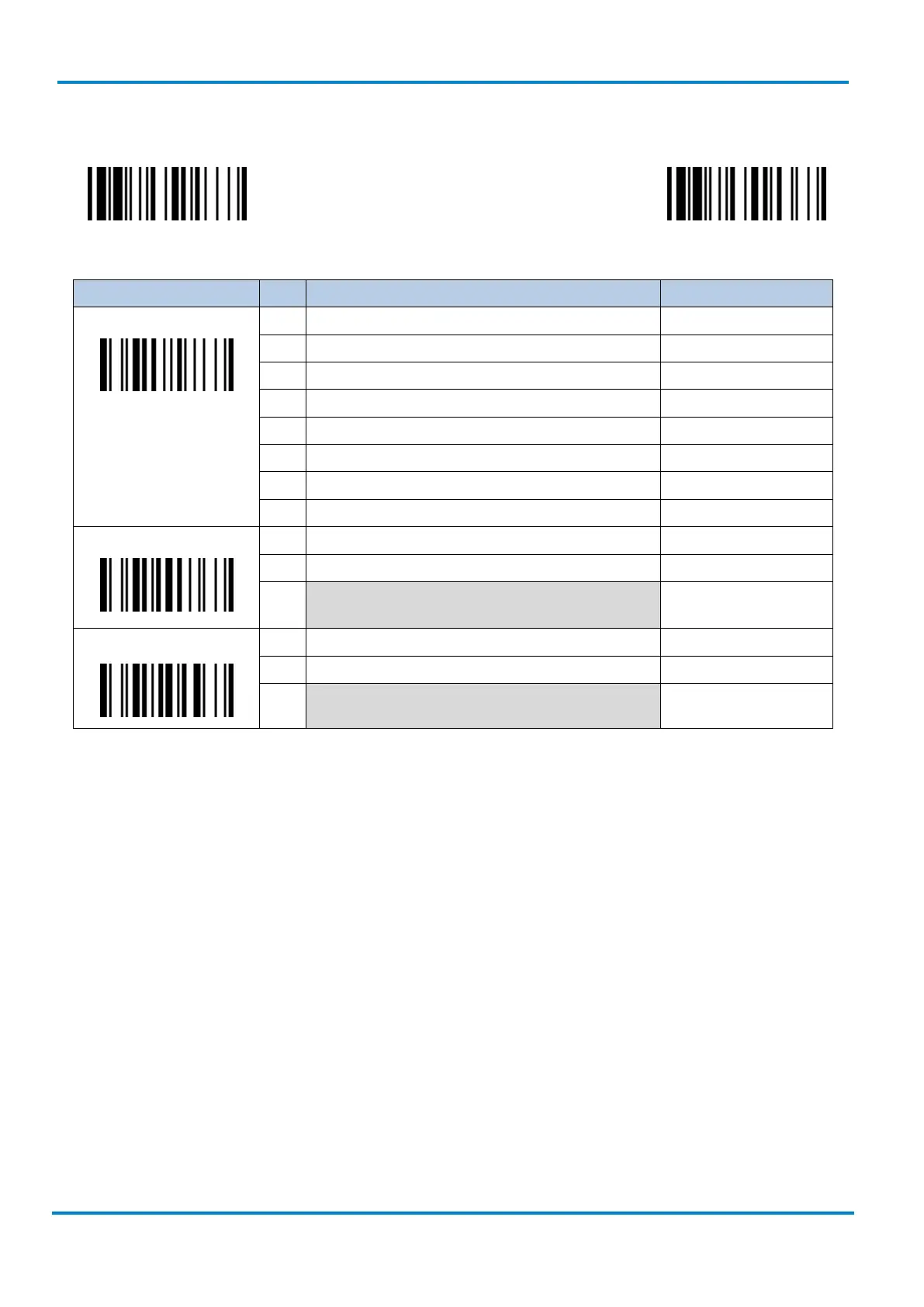

3.7.22 Data Matrix

PROGRAM

F_DEFAULT

Family Code Selection P.C. Parameter Selection Option Code

Data Matrix Settings

SS Disable Data Matrix 0

SS Enable Data Matrix  1

SS Disable Data Matrix Inverse Reading 4

SS Enable Data Matrix Inverse Reading 5

SS Auto Detect Data Matrix Inverse Reading  6

SS Disable Data Matrix Mirror Images 7

SS Enable Data Matrix Mirror Images 8

SS Auto Detect Data Matrix Mirror Images  9

Data Matrix Min. Length

SS Default (0001)  FIN

MS 0001-3116 (4 digits)

Scan 4 digits from the option code chart in the Appendix;

then the scanner will terminate this selection automatically.

Data Matrix Max. Length

SS Default (3116)  FIN

MS 0001-3116 (4 digits)

Scan 4 digits from the option code chart in the Appendix;

then the scanner will terminate this selection automatically.
