3. One repeat length is sufficient for a web length between 0 m/s and 2 m/s. At least
2 - 3 repeat lengths are recommended.
4. Deactivate teach-in via the control cable (ET).
5. The teach-in process is complete.

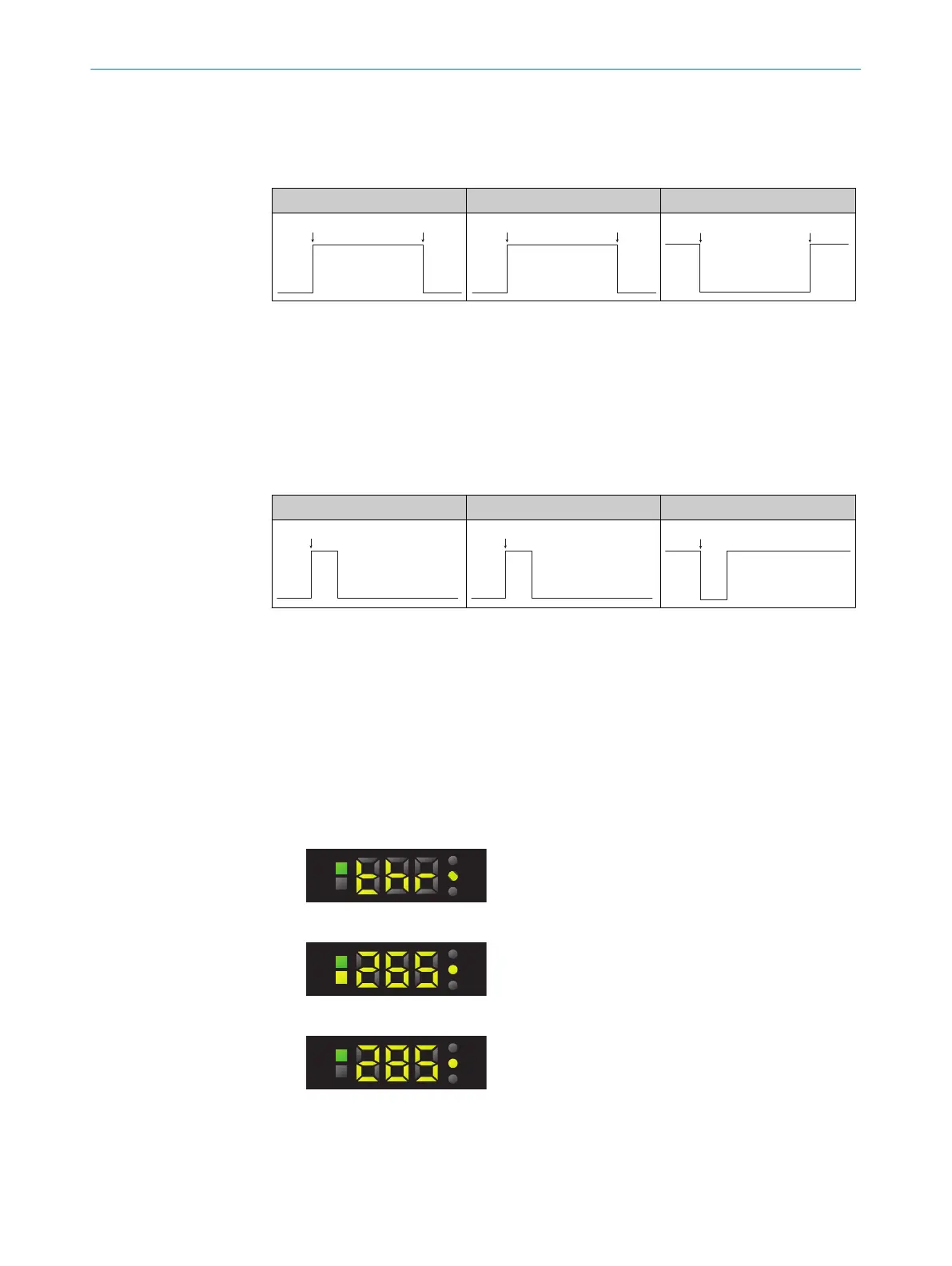

Push-pull PNP NPN
(24 V) U
V
1 2
0 V
(24 V) U
V
1 2
0 V
(24 V) U
V
1 2
0 V
1
Start teach-in
2
Stop teach-in
7.7.2.3 1-point teach-in
Suitable for teaching in color properties.
1. Position the object to be detected under the light spot.
2. Activate teach-in via the control cable (ET).
3. The teach-in process is complete.
Push-pull PNP NPN
(24 V) U
V
1
0 V
(24 V) U
V
1
0 V
(24 V) U
V
(24 V) U
V
1
0 V
1
Teach point
7.7.3 Adjusting the switching threshold
During teach-in, the remission value of the switching threshold displayed is automati‐
cally set between the mark and background and corresponds to a switching threshold
of 50%.
If the switching events do not correspond to the expected results, the switching thresh‐
old can be adjusted independently of the teach-in process.
1. Press the SET pushbutton.
Use the plus or minus pushbutton to select thr.
THR
PRO
TCH
PWR
Q
2. Press the SET pushbutton.
THR
PRO
TCH
PWR
Q
3. Use the plus or minus pushbutton to adjust the switching threshold.
THR
PRO
TCH
PWR
Q
4. Press the SET pushbutton to confirm the switching threshold.
OPERATION 7
8020708.ZMT3/ | SICK O P E R A T I N G I N S T R U C T I O N S | KTS/KTX Prime
31
Subject to change without notice
