SICK KTX Prime

THR
PRO
TCH
PWR
Q
No function
THR
PRO
TCH
PWR
Q
Digital output
7. Press the SET pushbutton.
NOTE
If PIN 2 is assigned with tch (external teach-in), the teach-in variant can be defined too
(2-point, dynamic, or 1-point).
NOTE
If you want to use PIN 2 as an input with function L-D or F-C, function L/D or SEn must
be set to AUt in the default.

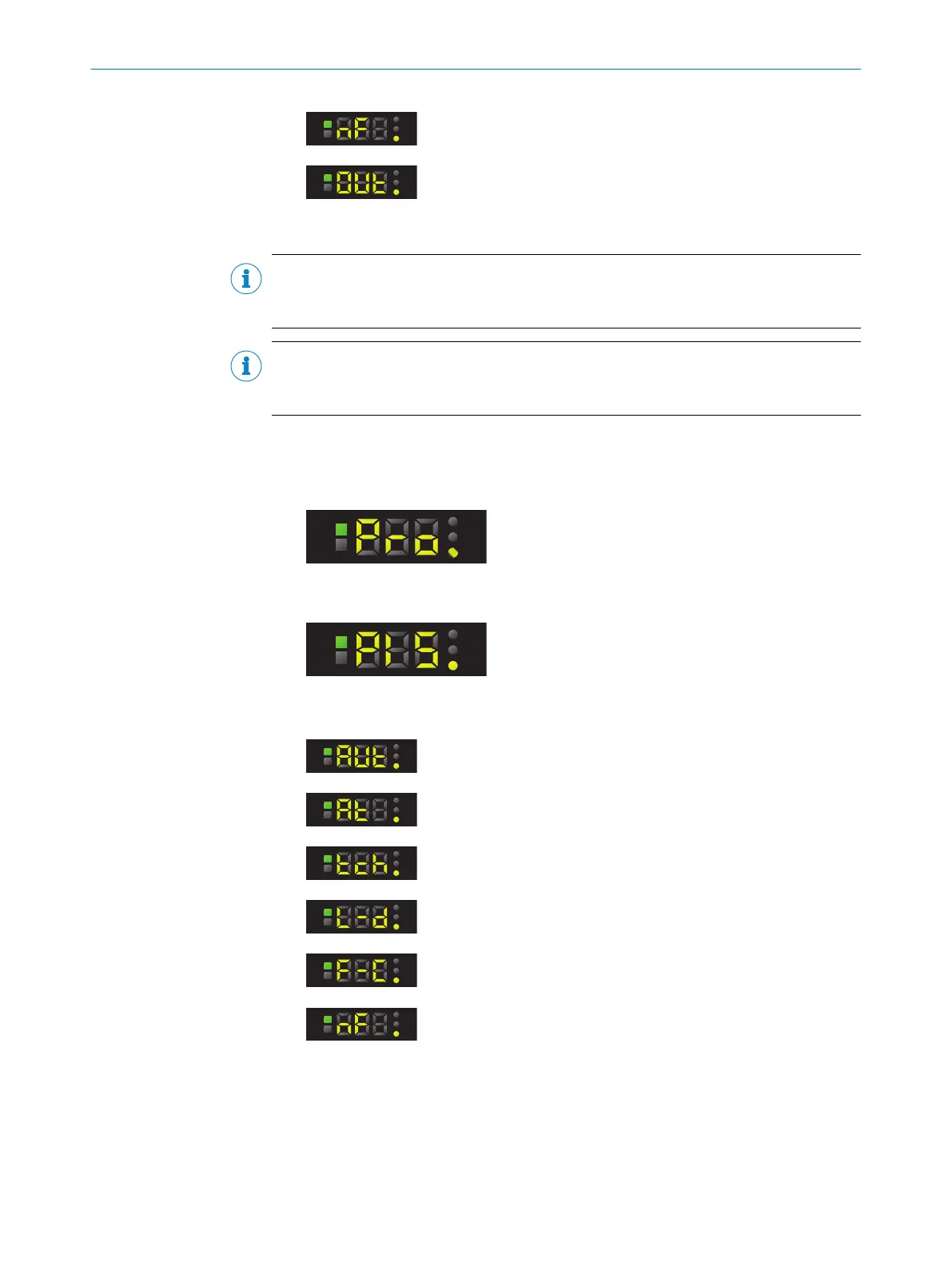

7.8.5 PIN 5 configuration
1. Press the SET pushbutton.
2. Use the plus or minus pushbutton to select PRO.
THR
PRO
TCH
PWR
Q
3. Press the SET pushbutton.
4. Use the plus or minus pushbutton to select PI5.
THR
PRO
TCH
PWR
Q
5. Press the SET pushbutton.
6. Use the plus or minus pushbutton to select the required setting.
THR
PRO
TCH
PWR
Q
Auto (defined by the teach-in operation; default value)
THR
PRO
TCH
PWR
Q
Blanking
THR
PRO
TCH
PWR
Q
External teach-in
THR
PRO
TCH
PWR
Q
Switching logic
THR
PRO
TCH
PWR
Q
System sensitivity
THR
PRO
TCH
PWR
Q
No function
7. Press the SET pushbutton.
7
OPERATION
36
