SICK KTX-WP91141252 Series User Manual

THR
PRO
TCH
PWR
Q
7. Press the SET pushbutton.
8. Position the background under the light spot.
THR
PRO
TCH
PWR
Q

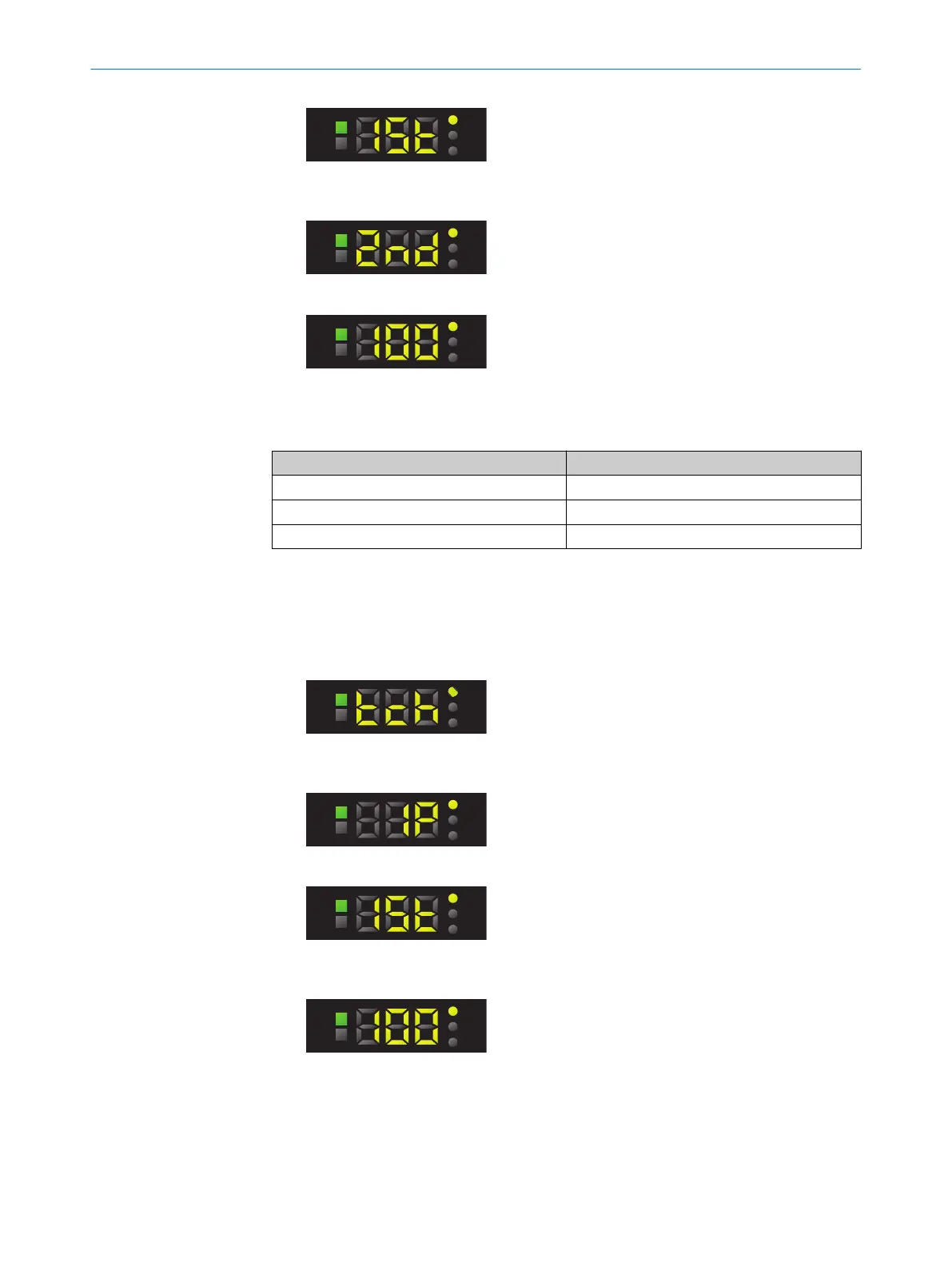

9. Press the SET pushbutton. The Quality of Teach is displayed.
THR
PRO
TCH
PWR
Q
Quality of Teach
Table 10: Quality of Teach indicator
Indication Meaning
61 – 100 Excellent detection reliability
31 – 60 Good detection reliability
1 – 30 Poor detection reliability
7.7.1.2 1-point teach-in/color mode
Suitable for teaching in color properties.
1. Press the SET pushbutton.
2. Use the plus or minus pushbutton to select teach-in.
THR
PRO
TCH
PWR
Q
3. Press the SET pushbutton.
4. Use the plus or minus pushbutton to select 1P.
THR
PRO
TCH
PWR
Q
5. Press the SET pushbutton.
THR
PRO
TCH
PWR
Q
6. Position the object to be detected under the light spot.
7. Press the SET pushbutton. The Quality of Teach is displayed.
THR
PRO
TCH
PWR
Q
7 OPERATION
28
O P E R A T I N G I N S T R U C T I O N S | KTS/KTX Prime 8020708.ZMT3/ | SICK
Subject to change without notice
