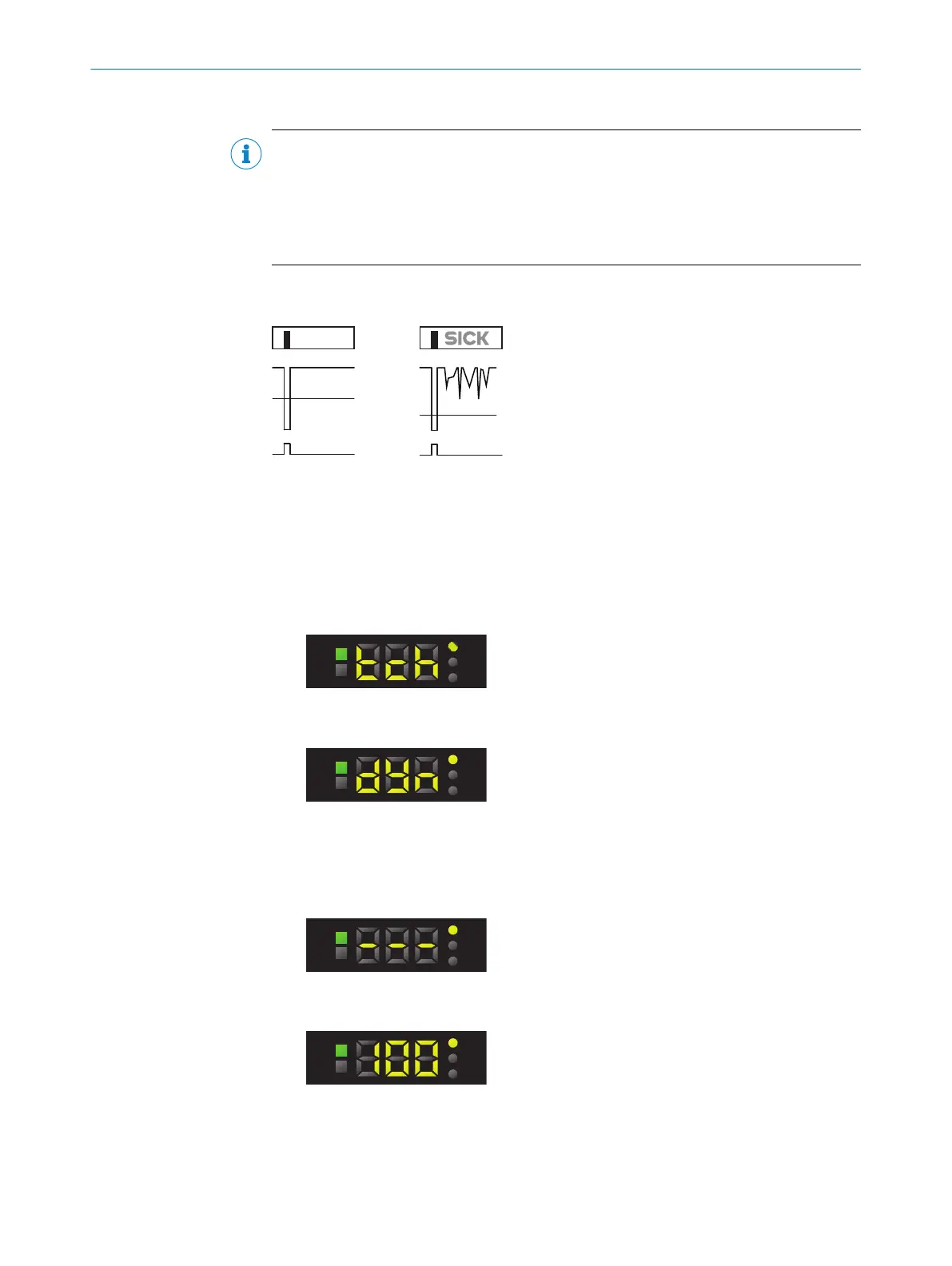

7.7.1.3 Dynamic teach-in
NOTE
If there are interference impulses in the background, the dynamic teach enables a sta‐
ble switching signal. The system sensitivity must be switched to fine or middle in order
to blank interference impulses.
In the COARSE factory setting, the switching threshold is set at 50% between the mark
and background.
Suitable for teaching in moving objects.
Dark switching Dark switching
1
2
3
1
Internal received
signal
2
Switching
threshold
3
Output Q
1
2
3
1. Press the SET pushbutton.
2. Use the plus or minus pushbutton to select tch.
THR
PRO
TCH
PWR
Q
3. Press the SET pushbutton.
4. Use the plus or minus pushbutton to select dYn.
THR
PRO
TCH
PWR
Q
5. Press the SET pushbutton.
6. Position the mark or background under the light spot.
The display lights up during repeat length detection. One repeat length is sufficient
for web lengths of between 0 m/s and 2 m/s. At least 2 or 3 repeat lengths are
recommended.
THR
PRO
TCH
PWR
Q
7. Press the SET pushbutton to quit the teach-in operation. The Quality of Teach is
displayed.
THR
PRO
TCH
PWR
Q
OPERATION
7
8020708.ZMT3/ | SICK O P E R A T I N G I N S T R U C T I O N S | KTS/KTX Prime
29
Subject to change without notice
