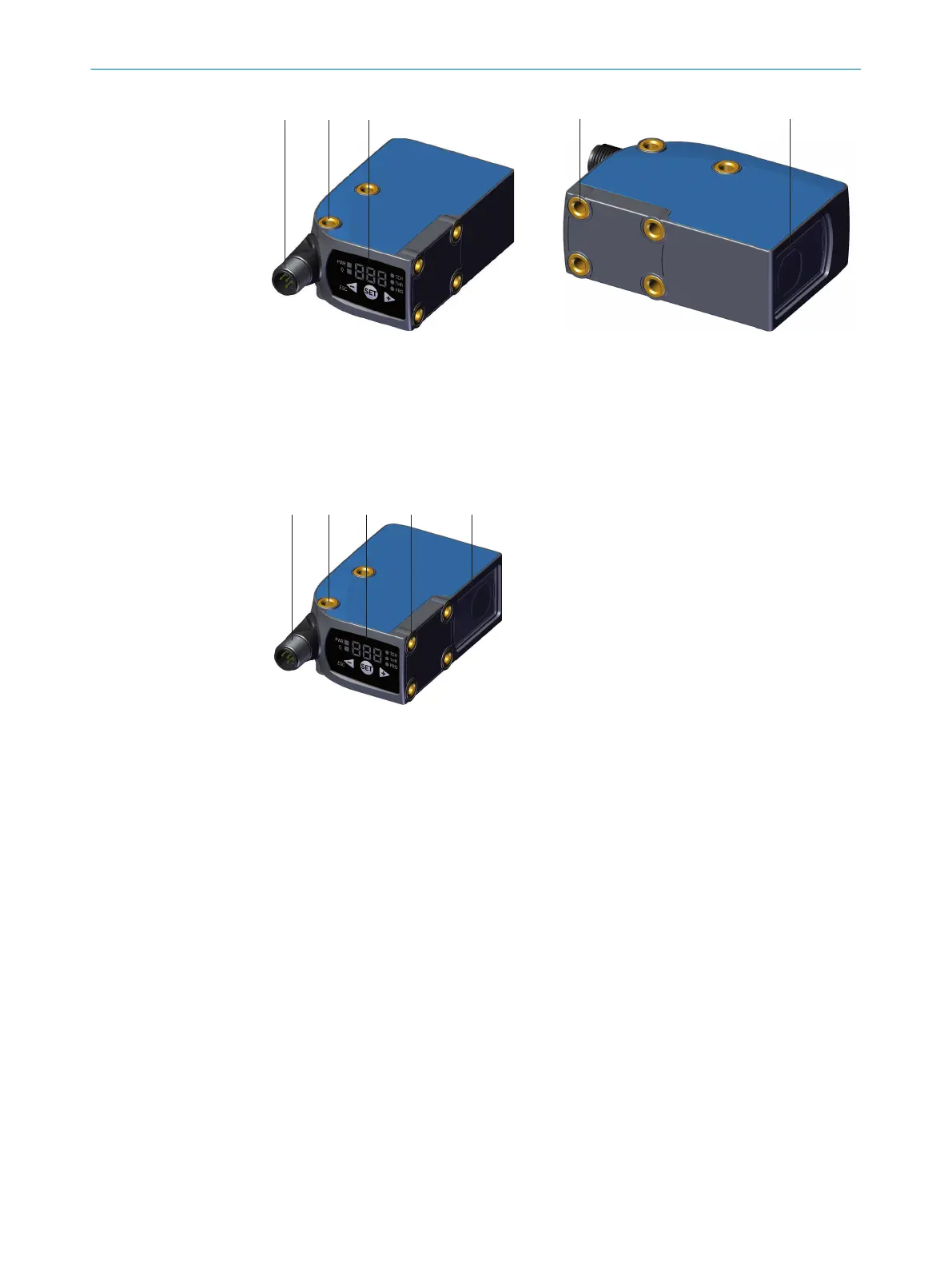

Figure 2: KTX Prime light emission short housing side
1
Connection
2
M5 mounting thread
3
Display and control panel
4
M5 mounting thread
5
Light emission
Figure 3: KTX Prime light emission long housing side
1
Connection
2
M5 mounting thread
3
Display and control panel
4
M5 mounting thread
5
Light emission
3.2.2 Product characteristics
Contrast sensors are primarily used in packaging or printing machines for detecting
marks.
However, they can also be used in any application based on making a distinction
between contrasts.
KTS/KTX contrast sensors detect even the smallest contrasts at the highest speeds,
such as print marks on foils or packaging. They detect minute grayscale variations
between the mark and the background on matte, shiny, or transparent surfaces. Device
types are available with different methods of contrast resolution and different teach-in
variants for a wide range of requirements.
Features
•
TwinEye technology
®
for increased depth of field and sensing distance tolerance
•
50 kHz switching frequency
•
Large dynamic range means reliable detection of contrasts on glossy materials
