NOTE
If the switching thresholds are undershot (light switching) or overshot (dark switching),
the Q LED goes out. The value display flashes if the switching threshold is undershot.
NOTE
If the switching threshold has been manually adjusted, the AdC function is deactivated.
NOTE
After 1-point teach-in, it is not possible to adjust the switching threshold (thr = off).
7.8 Pro level (advanced settings)
You can use the advanced settings to adapt the device to the particular application con‐
ditions or to configure additional values and functions.

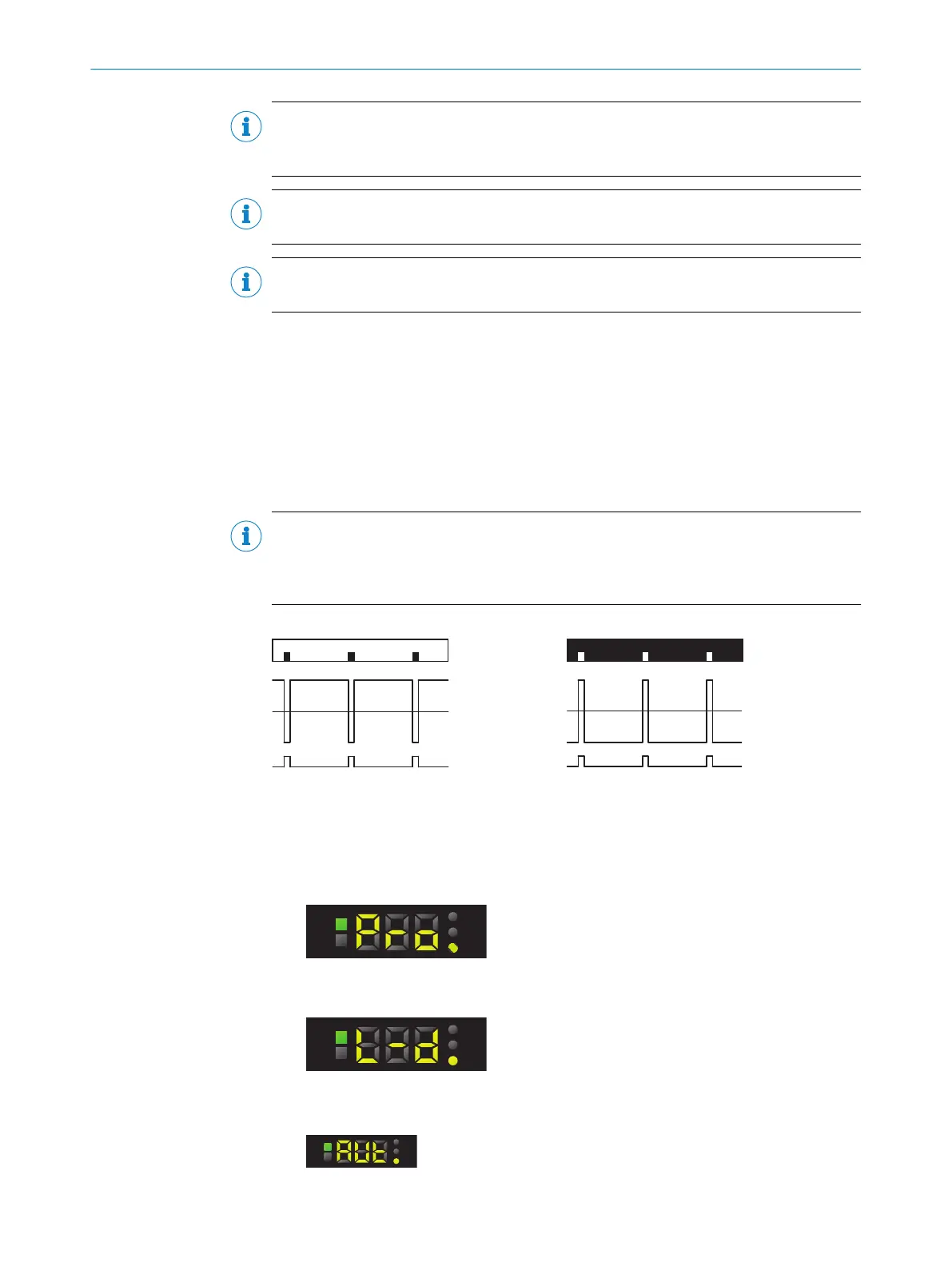

7.8.1 Adjusting the switching logic (light/dark)
The “AUTO” switching logic is preset (factory setting). Light or dark switching is detected
automatically by the sensor.
NOTE
With external dynamic teach, the light/dark (L/D) switching via the factory settings is
used by PIN2. PIN2 must be manually configured to nF (no function) to use the auto‐
matic light/dark regulation of the sensor.
Dark switching Light switching
1
2
3
1
Internal received signal
2
Switching threshold
3
Output Q
2
1
3
1. Press the SET pushbutton.
2. Use the plus or minus pushbutton to select Pro.
THR
PRO
TCH
PWR
Q
3. Press the SET pushbutton.
4. Use the plus or minus pushbutton to select L-D.
THR
PRO
TCH
PWR
Q
5. Press the SET pushbutton.
6. Use the plus or minus pushbutton to select the required setting.
THR
PRO
TCH
PWR
Q
Automated (factory setting)
7 OPERATION
32
O P E R A T I N G I N S T R U C T I O N S | KTS/KTX Prime 8020708.ZMT3/ | SICK
Subject to change without notice
