3. Press the SET pushbutton.
4. Use the plus or minus pushbutton to select dSP.
5. Press the SET pushbutton.
6. Use the plus or minus pushbutton to select the direction in which the segment dis‐
play points.
7. Press the SET pushbutton.
7.9 Other indicators and functions

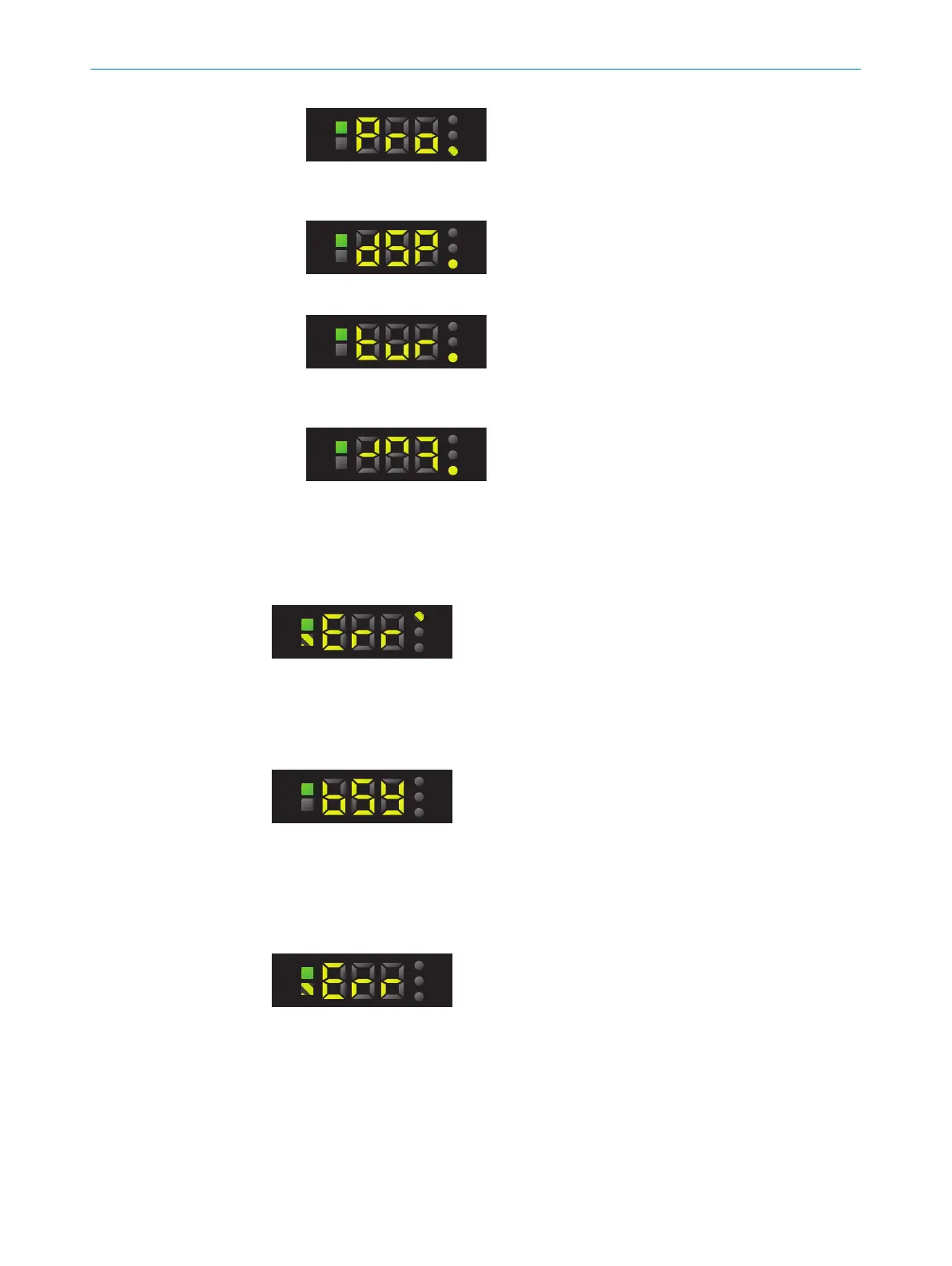

Incorrect teach-in
In the event of a teach-in failure, Err appears on the display and the Q LED and TCH LED
flash.
Control panel locked
If the device is undergoing an internal process (e.g., reading or storing parameter sets
or teaching in via IO-Link), the control panel is locked and the device shows “bSY” on
the segment display.
Short-circuit and overcurrent detection
In the event of a short-circuit, Err appears on the display and the Q LED flashes.
Live measured value (run mode)
In run mode, the device displays the remission value currently being measured as a
digit.
7 OPERATION
40
O P E R A T I N G I N S T R U C T I O N S | KTS/KTX Prime 8020708.ZMT3/ | SICK
Subject to change without notice
