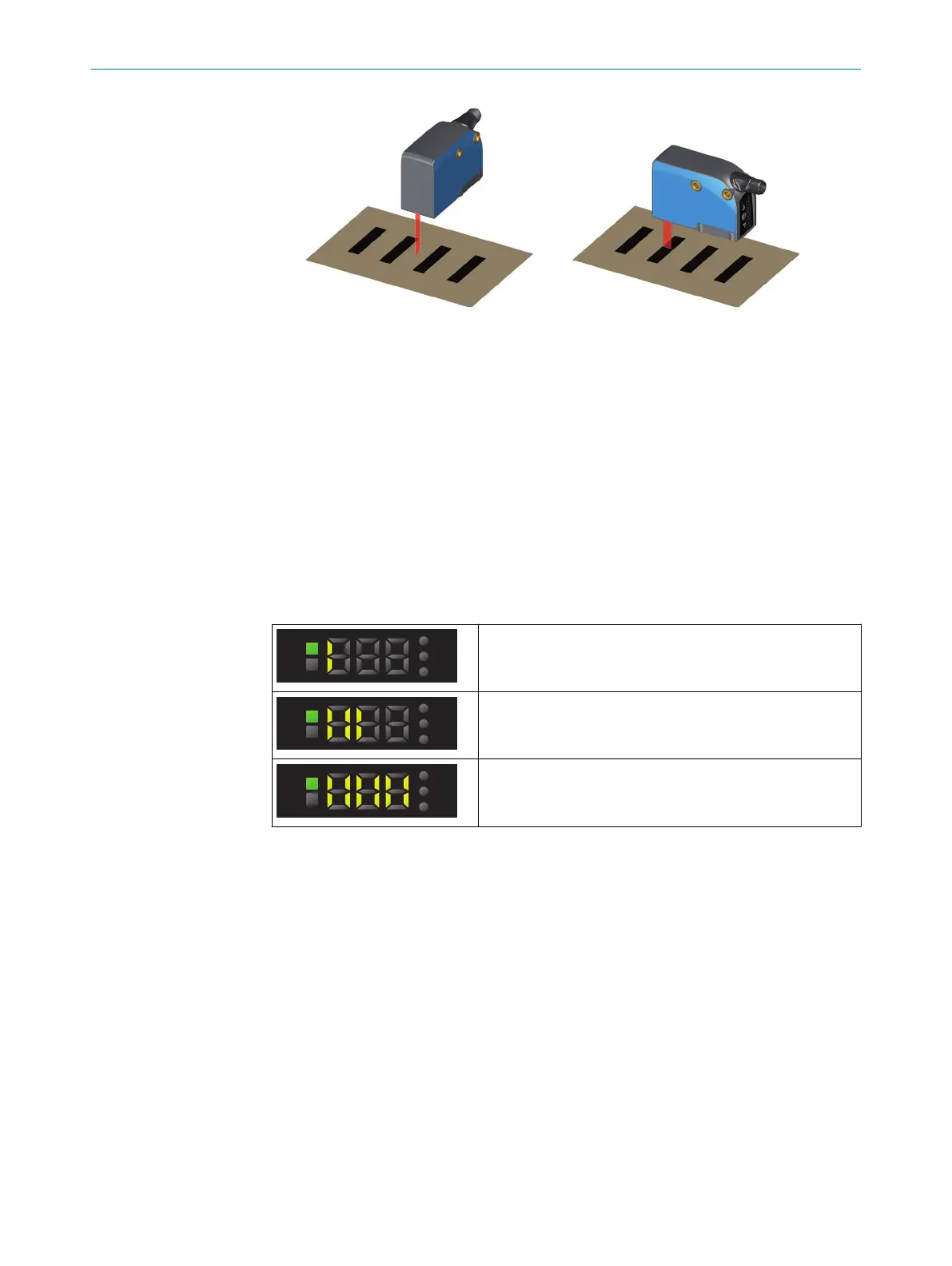

Figure 6: KTX Prime light emission long housing side
1. The adjustment quality is automatically shown in the display as mounting feed‐
back during the first device initialization. To do so, the device must be brought
within the nominal sensing distance manually, ideally on light material (see data
sheet). Pay attention to the figure during alignment. After adjustment, quit the
process with any pushbutton.
2. Install the device via the fixing hole so that the light spot enters the mark longitudi‐
nally and the test object has the least possible vertical and horizontal movement.
Note the sensing distance while doing so.
3. Compensate for the vertical and horizontal movement of the test object by marks
of suitable lengths.
4. Ensure that any device movement does not affect the sensing distance.
Mounting feedback
Table 1: Mounting feedback indicator
Sensing distance set too close or too far away.
Sensing distance set within the detection range, but not at
the optimum level.
Nominal sensing distance set.
MOUNTING 4
