NOTICE
Enc
losure rating IP65 only applies if the safety laser scanner is closed and the system
plug is mounted.
b
Mount the system plug and the cover plate.
b
Close each M12 plug connector on the safety laser scanner using a male cable
connector or a protective cap.
°
Tightening torque for plug connector:0.4Nm…0.6Nm.
°
Tightening torque for protective caps:0.6Nm…0.7Nm.
b
Mount the optics cover.
NOTICE
If t
he system plug is mounted with excessive force, the contacts can break or bend.
b
Plug in the system plug carefully.
b
Do not force it.
Tool required:
•
T
X20 Torx wrench

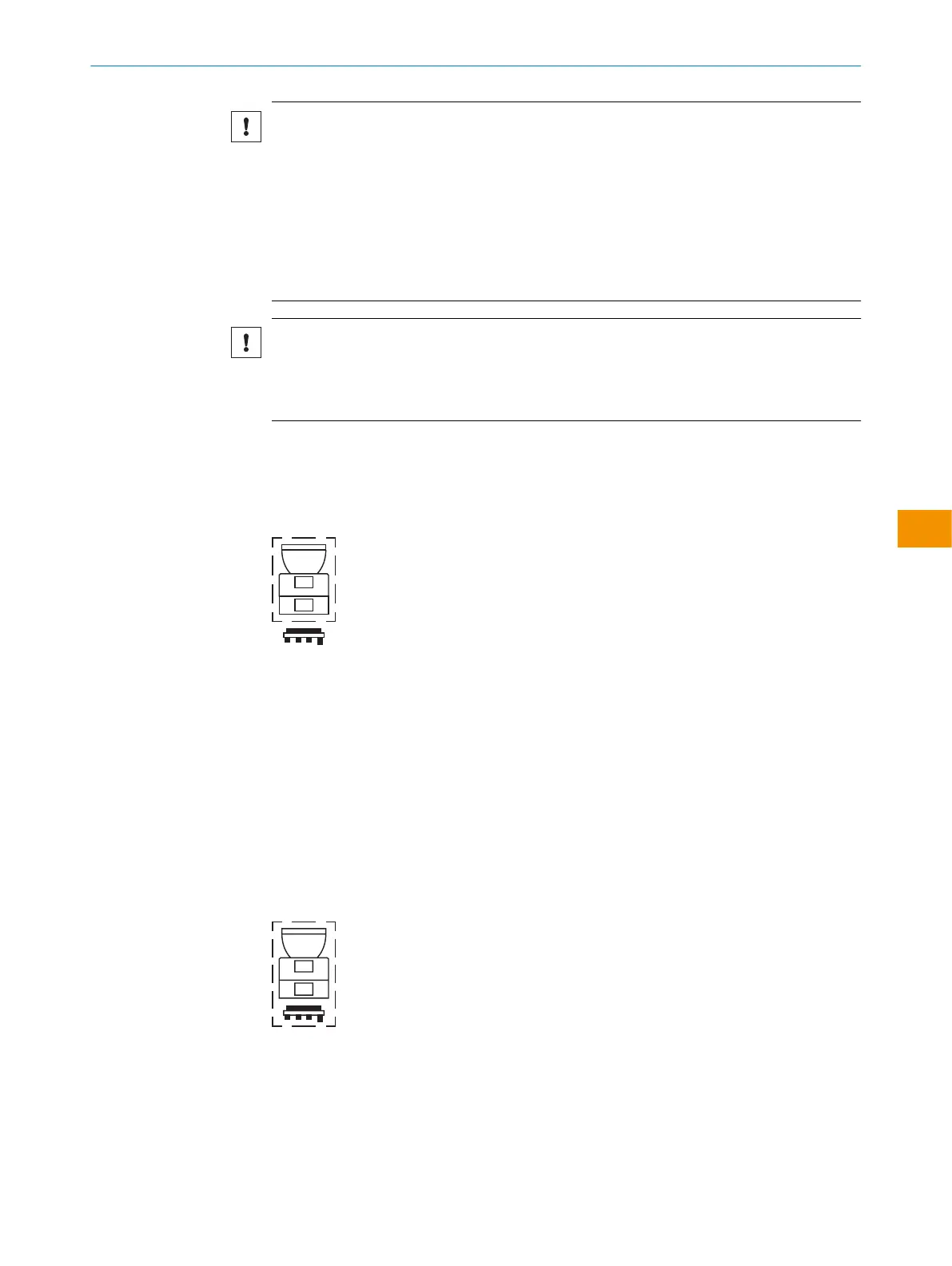

8.1 Replacing the safety laser scanner without system plug
1. Make sure that the environment is clean and clear of fog, moisture, and dust.
2.
Unscrew screws in the system plug and remove the system plug from the defective
safety laser scanner.
3. Unscrew the fixing screws and remove the defective safety laser scanner.
4. Mount the system plug on the new safety laser scanner, see “Replacing the
system plug”.
5. Mount the new safety laser scanner, see “Mounting the safety laser scanner
directly”.
6. Check the effectiveness of the protective device. For more information, see the
operating instructions.
8.2 Replacing the safety laser scanner completely
1. Disconnect the connecting cables the system plug.
2.
Unscrew the fixing screws and remove the defective safety laser scanner.
3. Mount the new safety laser scanner, see “Mounting the safety laser scanner
directly”.
4. Reconnect the connecting cables to the system plug.
MOUNTING INSTRUCTIONS
8026187/1H7G/2022-10-19 | SICK M O U N T I N G I N S T R U C T I O N S | microScan3 Pro I/O
19
Subject to change without notice
en
