Technical specifications

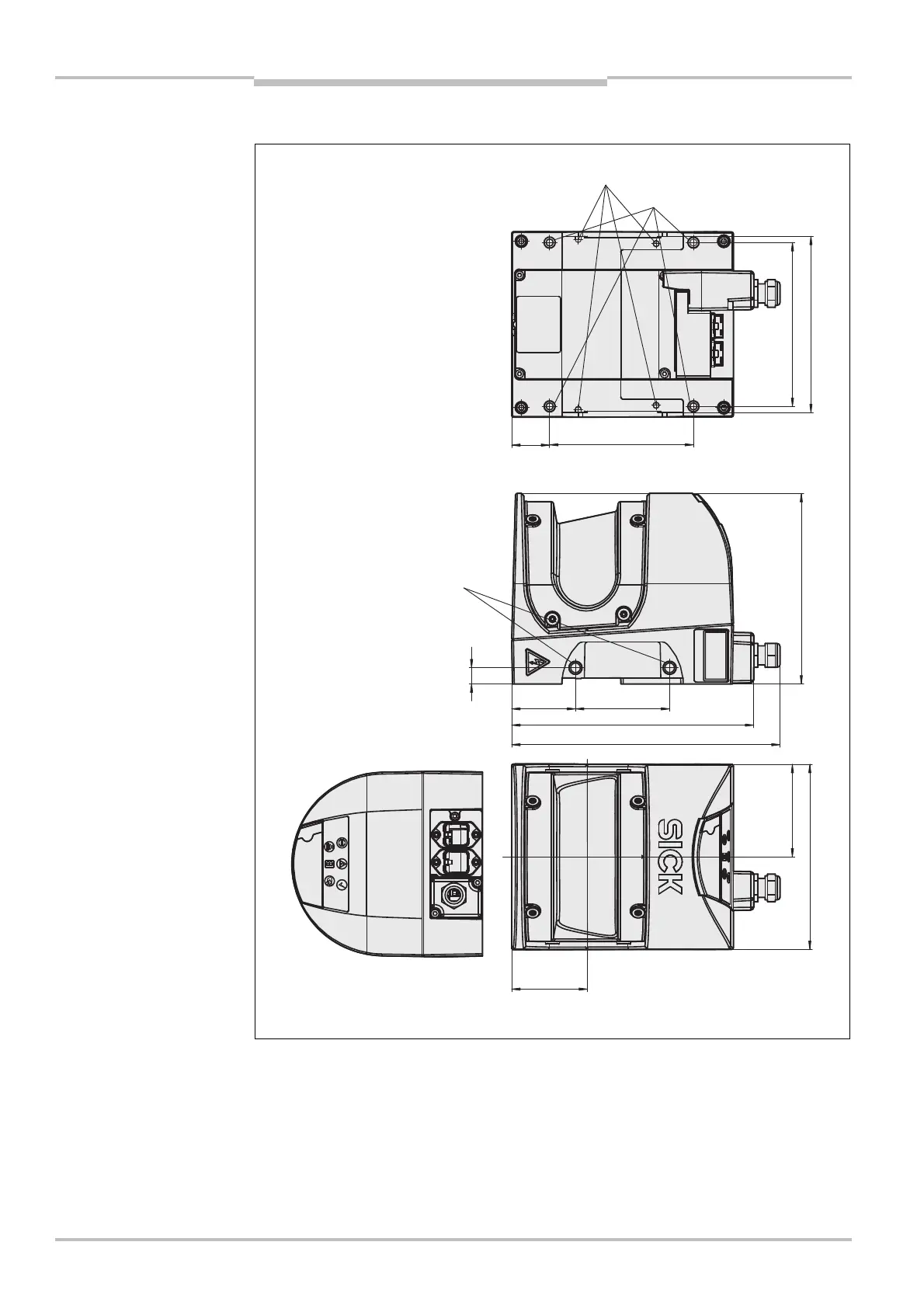

8.7 Dimensional drawing S3000 PROFINET IO/IOOF
Fig.
16
:
Dimensional drawing
S3000 PROFINET IO/IO OF
(mm)
63
4× M6
×
8
4 × reference points for mounting
147
136.8
53.2
120
224
202
78.5
155
77
13.5
4× M8
×9
31.65
159
