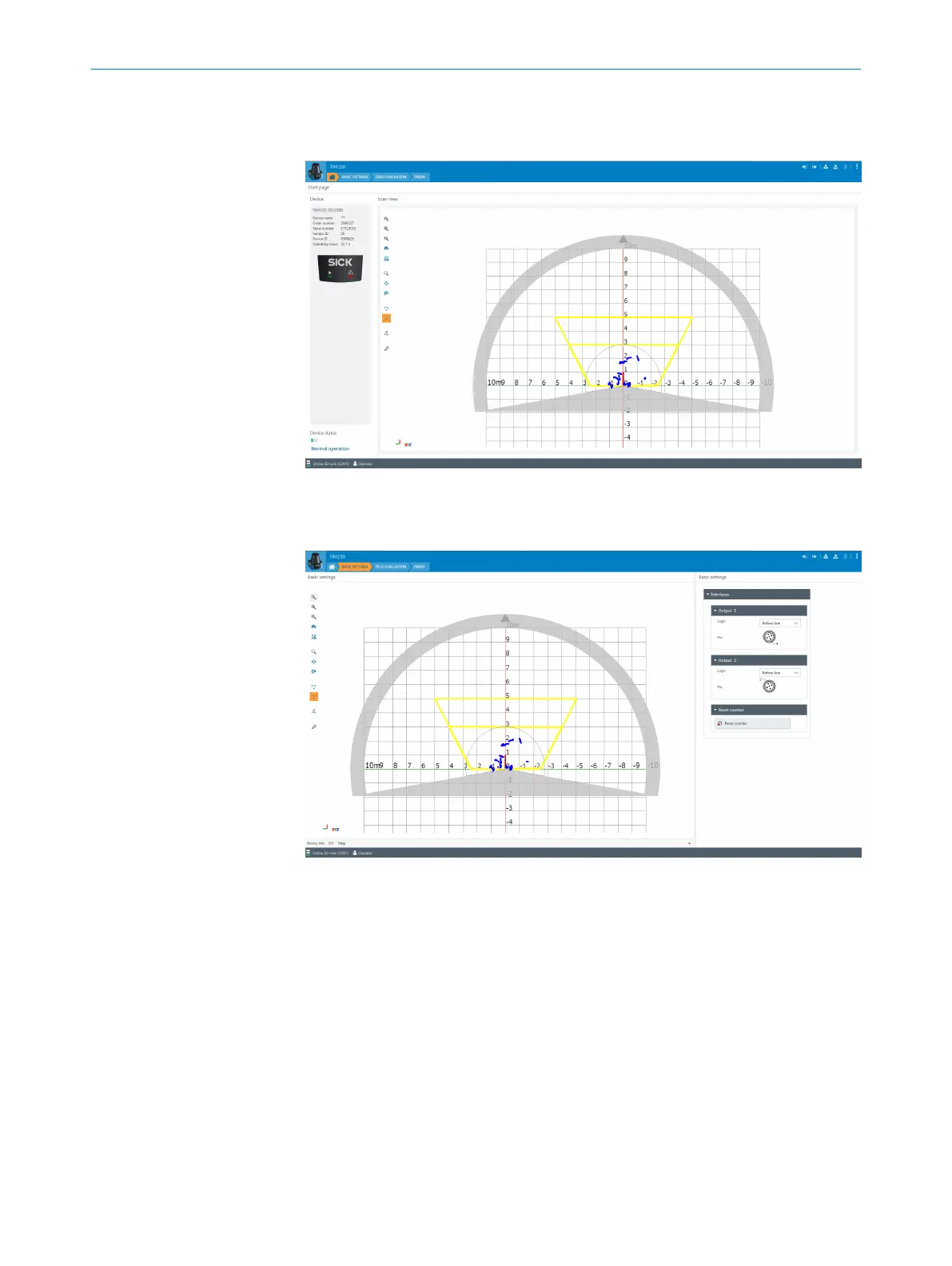

The device window features various views supporting a selection of functions:
•
Start: Display of information about the device (left-hand side) and display of the
current scan (right-hand side).
The scan view can be customized with the assistance of various tools (to the left of
the scan view).
•
Basic settings: Device parameters can be configured, available parameters depend
on the device type.
•
Field evaluation: Scan display for adapting the field geometry (left-hand side) and
entering detection parameters (right-hand side):
