Chapter 3 Technical Information
TiM55x/56x/57x ranging laser scanner
12 © SICK AG · Germany · All rights reserved · Subject to change without notice 8015883/YZK8/2016-07-07

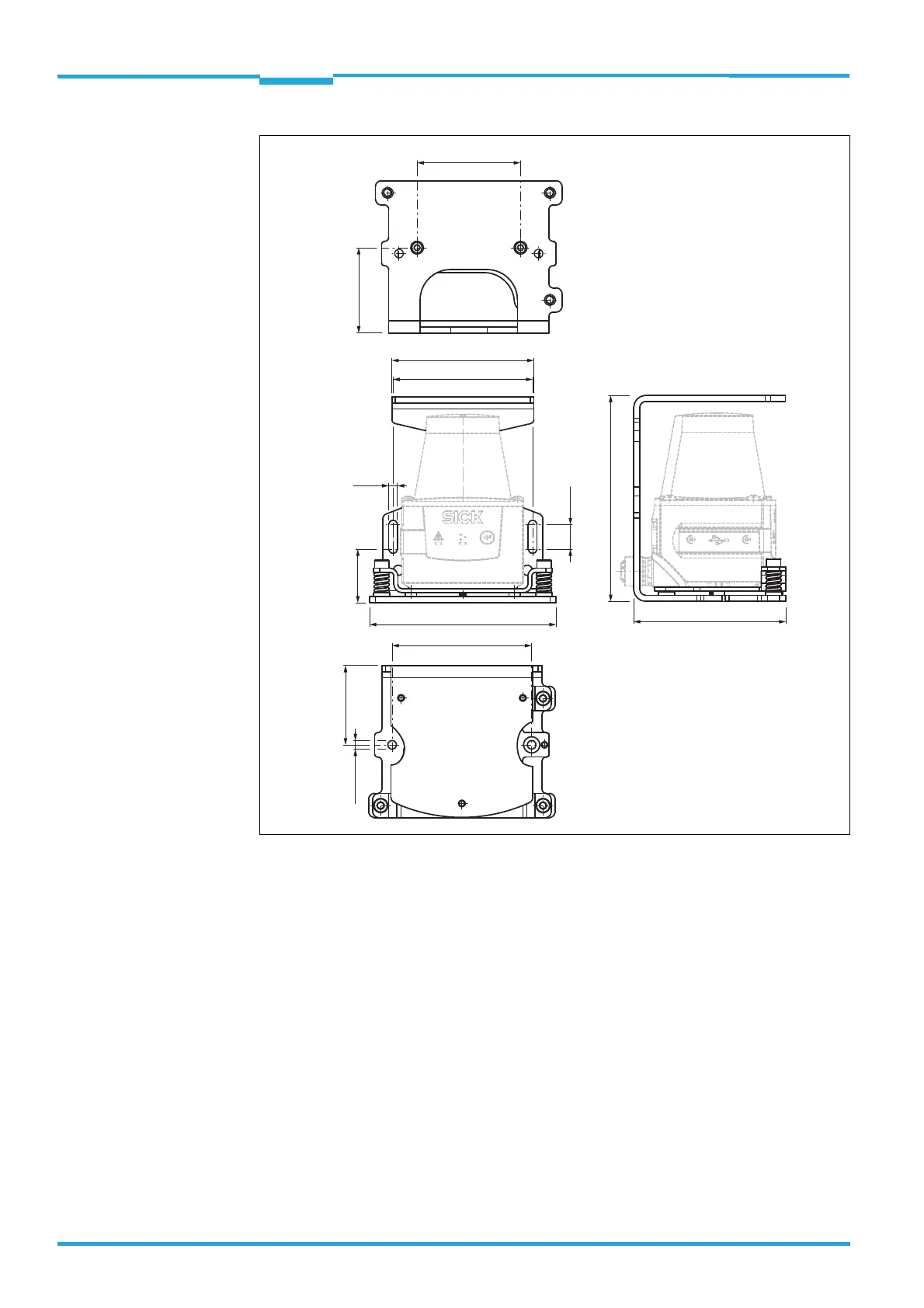

Mounting
Procedure for mounting the TiM5xx
1. Mount the TiM5xx on the adapter plate using the two M3 x 8 screws supplied. To do
this, insert the screws from below through the hole in the mounting bracket and the
hole in the adapter plate.
2. Align the scan level of the TiM5xx using the three cylinder head screws
.
3. After adjusting the adapter plate using the two studs
, lock against the mounting
bracket.
4. Mount the mounting bracket horizontally or vertically on a base using suitable screws
or mount weatherproof housing; see Chapter Procedure for mounting the weath-
erproof housing, Page 13.
Ø 4,3
51
42
70
68,8
26,4
12,1
92
68,8
39,1
2 x Ø 4,3
101,5
75
