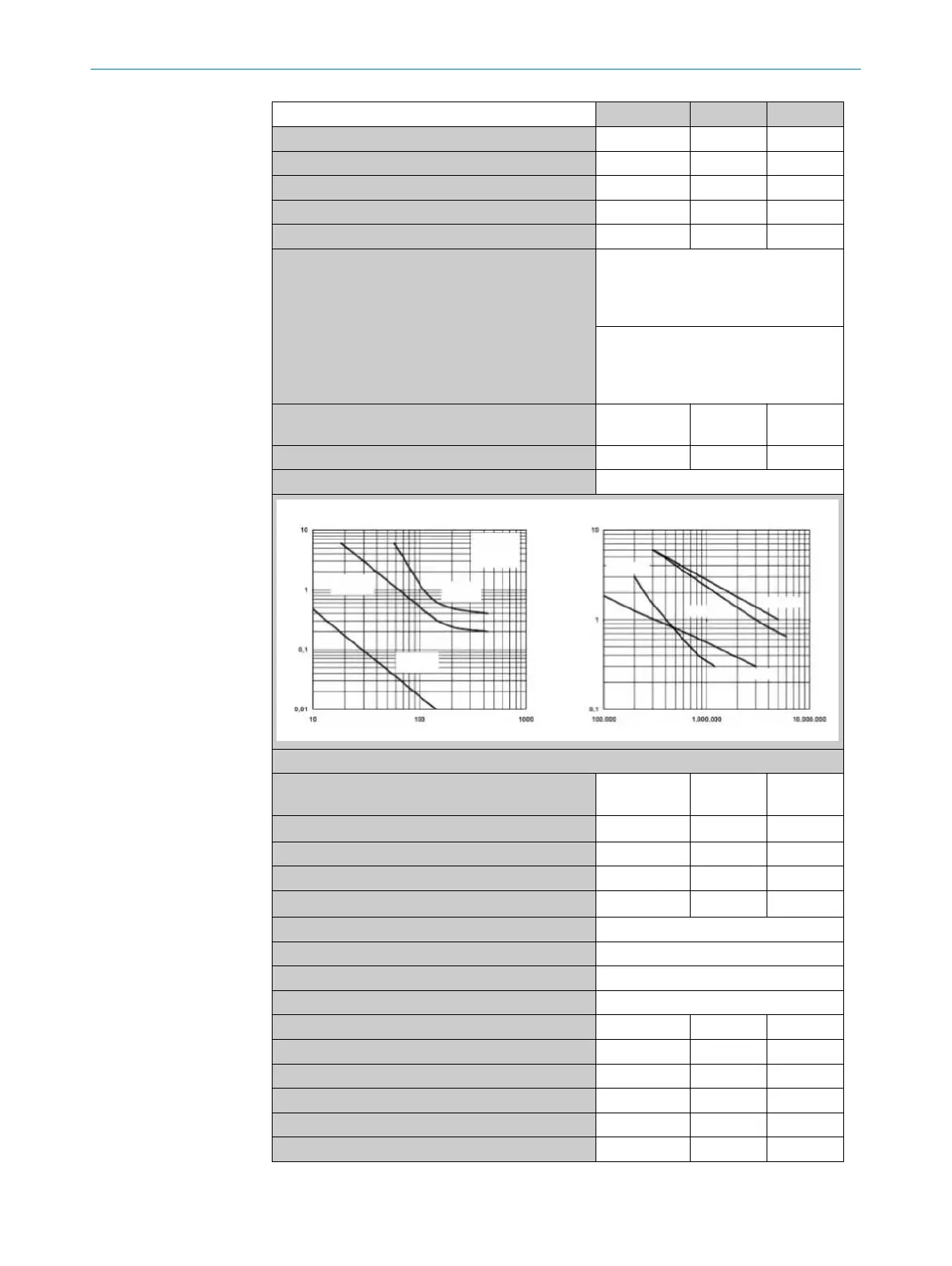

SICK UE10-3OS User Manual

Minimum Typical Maximum
Max. contact load (see diagram)
Switching voltage AC 10 V 230 V AC
Switching voltage DC 10 V 300 V DC
Switching current 5 mA 6 A
Total current 12 A
Usage category (EN 60 947-5-1) AC-15 Ue 230 V AC, Ie 4 A (360 switch‐
in
g operations/h)
AC-15 Ue 230 V AC, Ie 3 A (3600
switching operations/h)
DC-13 Ue 24 V DC, Ie 4 A (360 switch‐
in
g operations/h)
DC-13 Ue 24 V DC, Ie 2.5 A (3600
switching operations/h)
Contact fuse protection gG or circuit breaker with
c
haracteristic B or C
6 A
Permissible switching frequency 3600/h
Service life, mechanical 10
7
switching operations
DC contact current-breaking capacity Service life, electrical
Switching current (A)
Switching voltage (V DC) Switching operations
Switching current (A)
AC-15: 230 V
AC-1: 230 V
DC-1: 24 V
DC-13: 24 V
Contact clearance:
1.2 mm
t
LB
: Arc duration
L/R = 40 ms
t
LB
> 5 ms
L/R = 40 ms
t
LB
< 5 ms
L/R = 0 ms
t
LB
< 5 ms
Operating data
Protection against physical contact (EN 60 6641,
EN 60 9471)
Rated impulse voltage V
Im
p
4 kV
Overvoltage category II
4
)
Rated voltage 300 V AC
Test voltage U
r
ms
50 Hz 2 kV
Enclosure rating
Housing IP 40 (EN 60 529)
Terminals IP 20 (EN 60 529)
Mounting Mounting rail (EN 60 715)
Ambient operating temperature -25 °C +55 °C
Storage temperature -25 °C +75 °C
Wire cross-sections
Single wire (1×) 0.14 mm² 2.5 mm²
Single wire (2×, same cross-section) 0.14 mm² 0.75 mm²
Fine stranded wire with ferrules (1×) 0.25 mm² 2.5 mm²
4)
T
o achieve overvoltage category III see note in chapter "Electrical installation", page 9.
TECHNICAL SPECIFICATIONS 11
8022191/2017-11-24 | SICK O P E R A T I N G I N S T R U C T I O N S | UE10-3OS
15
Subject to change without notice
