SICK UE10-3OS User Manual

Minimum Typical Maximum
Fine stranded wire with ferrules (2×, same cross-
sec
tion)
0.2 mm² 0.5 mm²
Radiated emissions EN 61 00064
Interference resistance EN 61 00062
Allowed tightening torque 0.5 Nm 0.6 Nm
For UL 508 and CSA applications
Connection cross-section AWG 26-14
(onl
y use 60/75 °C copper flexible
wire)
Tightening torque 5-7 lb in
Weight 200 g
11.2 Dimensional drawings
107,6
78 58
93,3 96,5
93,7
22,5
75,3
114
5,1
14,8
5,1
14,8
109
89,8
71,3

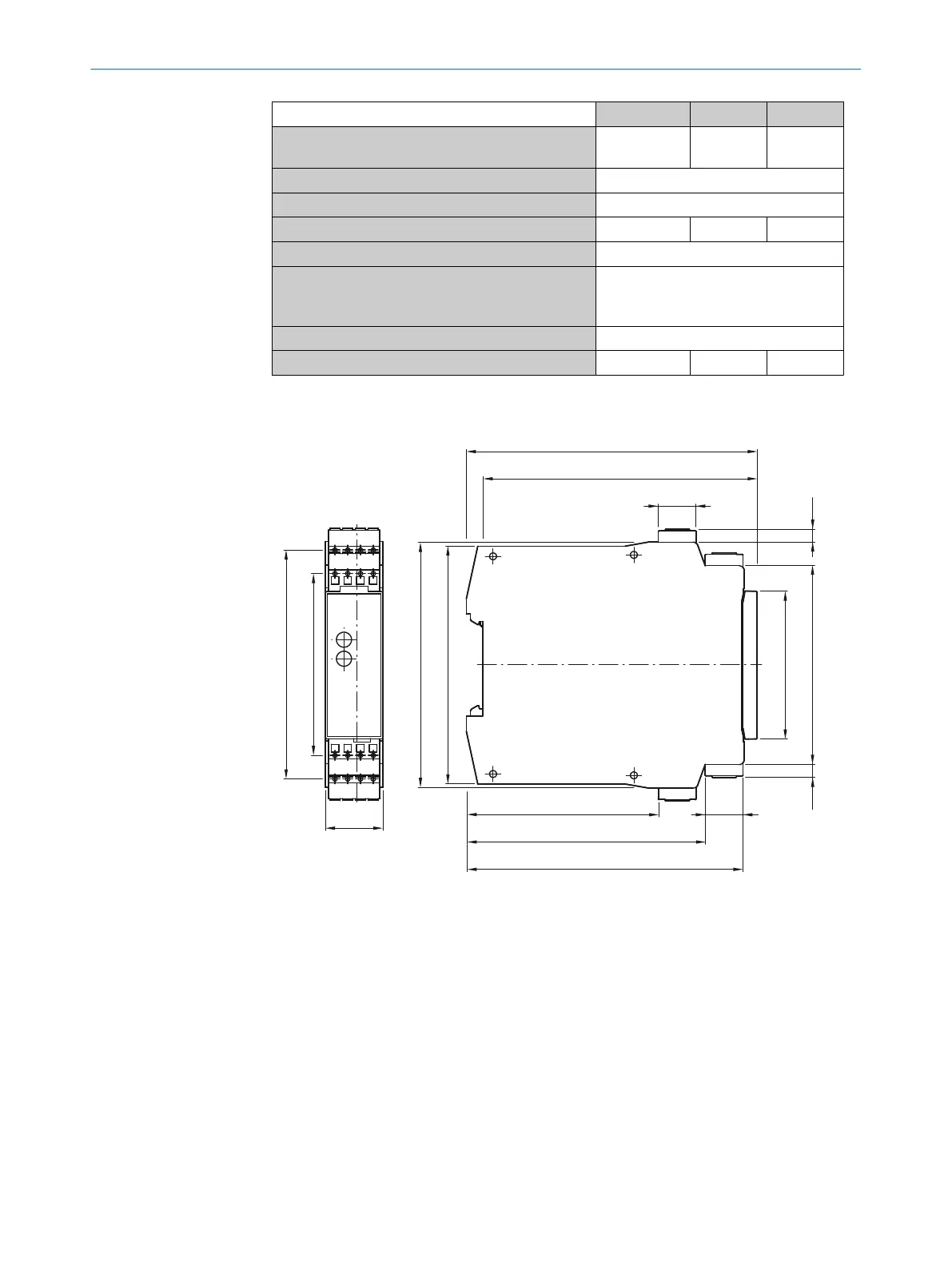

Figure 3: Dimensional Drawing UE10-3OS with removable terminals
11 T
ECHNICAL SPECIFICATIONS
16
O P E R A T I N G I N S T R U C T I O N S | UE10-3OS 8022191/2017-11-24 | SICK
Subject to change without notice

SICK UE10-3OS Specifications
