12.1 (0.48)
M8x1
7.6 (0.3)
8.6 (0.34)
18.6 (0.73)
11.3 (0.44)
3.7 (0.15)
18.6 (0.73)
25.4 (1)
12 (0.47)
30.5 (1.2)
6
5
4
3
1
2
5 5

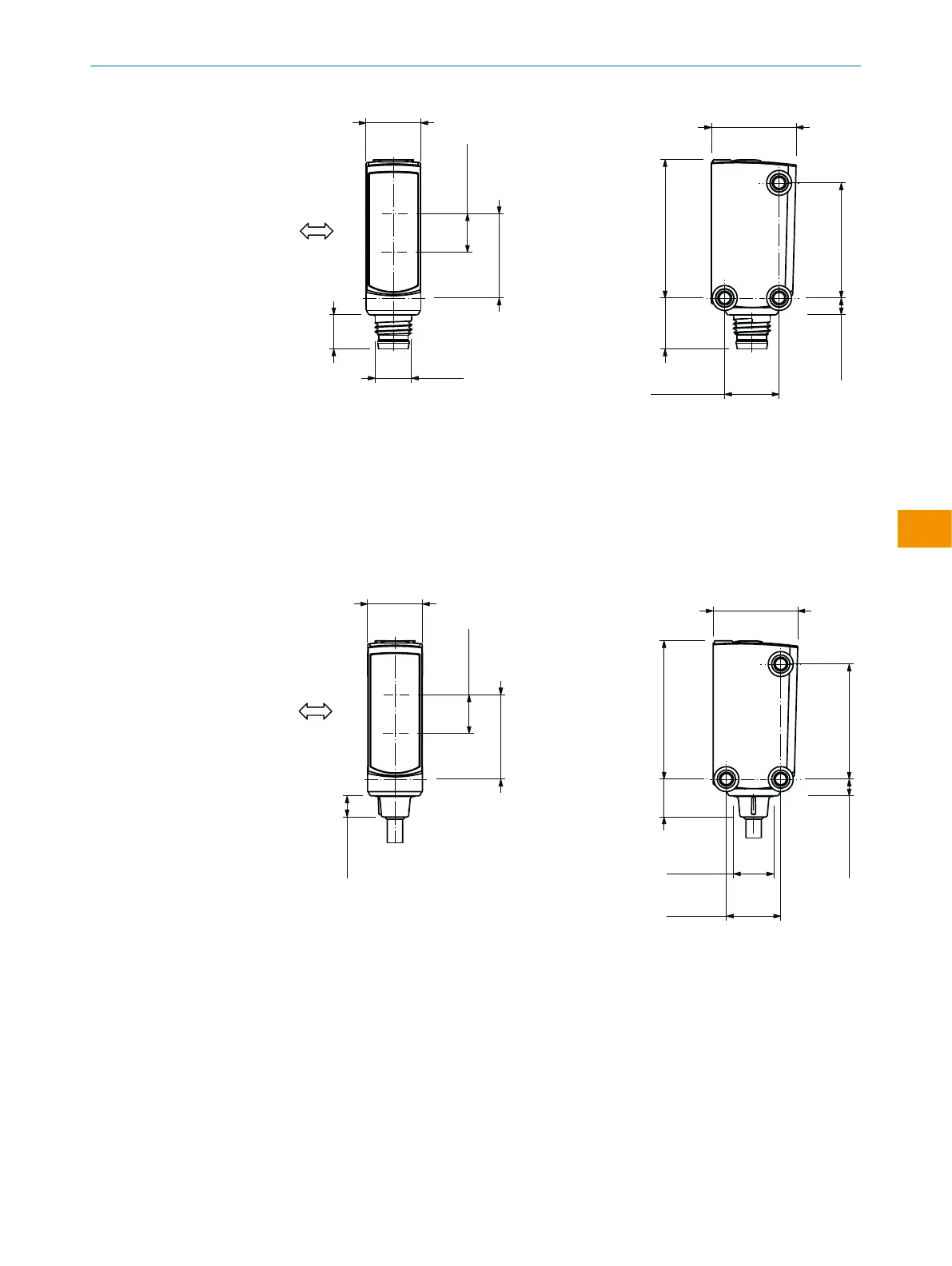

Figure 14: WTx4SP, M8 male connector
1
Preferred direction of the target object
2
Center of optical axis, receiver
3
Center of optical axis, sender
4
Connection
5
M3 threaded mounting hole
6
Display and setting elements
3
1
2
4
6
12.1 (0.48)
18.6 (0.73)
8.9 (0.35)
5
5
5
18.6 (0.73)
4.7 (0.18)
30.5 (1.2)
8.4 (0.33)
25.4 (1)
3.7 (0.15)
12 (0.47)
8.9 (0.35)
Figure 15: WTx4ST, connecting cable
1
Preferred direction of the target object
2
Center of optical axis, receiver
3
Center of optical axis, sender
4
Connection
5
M3 threaded mounting hole
6
Display and setting elements
