Sicor MR12 User Manual

AC MUM0040 rev. 11 - 24 -
MR12 - MR12C
1 2 5 6 2 15

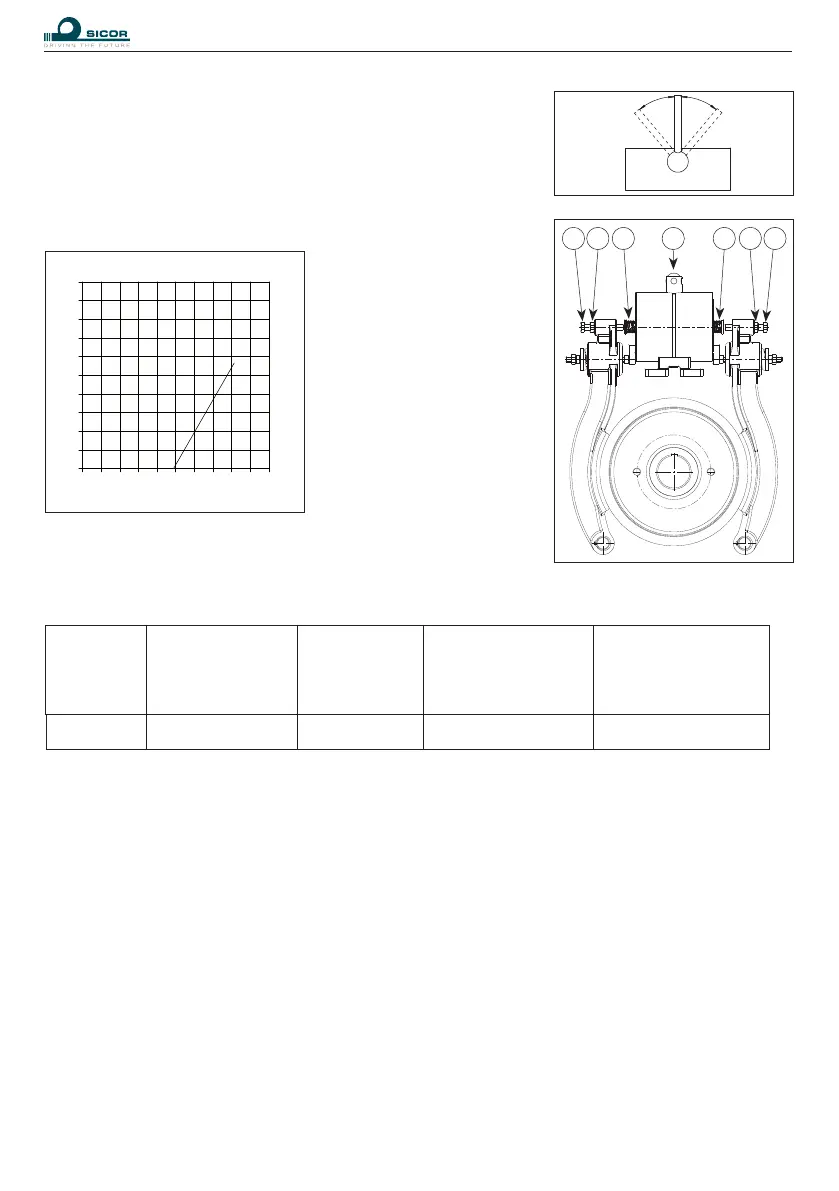

15.3. CHECKING THE STROKE
Make sure that the brake opening lever (6) is centrally posioned
(brake closed). Manually press the electromagnet pin (5) right down
and then measure the clearance between the adjusng screw (1)
and the electromagnet pin (5). If it is < 0,5 mm, the stroke must be
adjusted immediately.
MR12
100 90 80 70 60 50
0
100
200
L/mm
T/Nm
Machine
type
D
(Ø Brake drum)
[mm]
L
(minimum)
[mm]
Maximum braking
torque
[Nm]
Brake lining
fricon coecient
[Nm]
MR12/C 200 59 110 0,44
