Side-Power RC-20E - Output Signals Diagram

Installation & User Manual, Radio Remote rev 1_0_4 Page 14

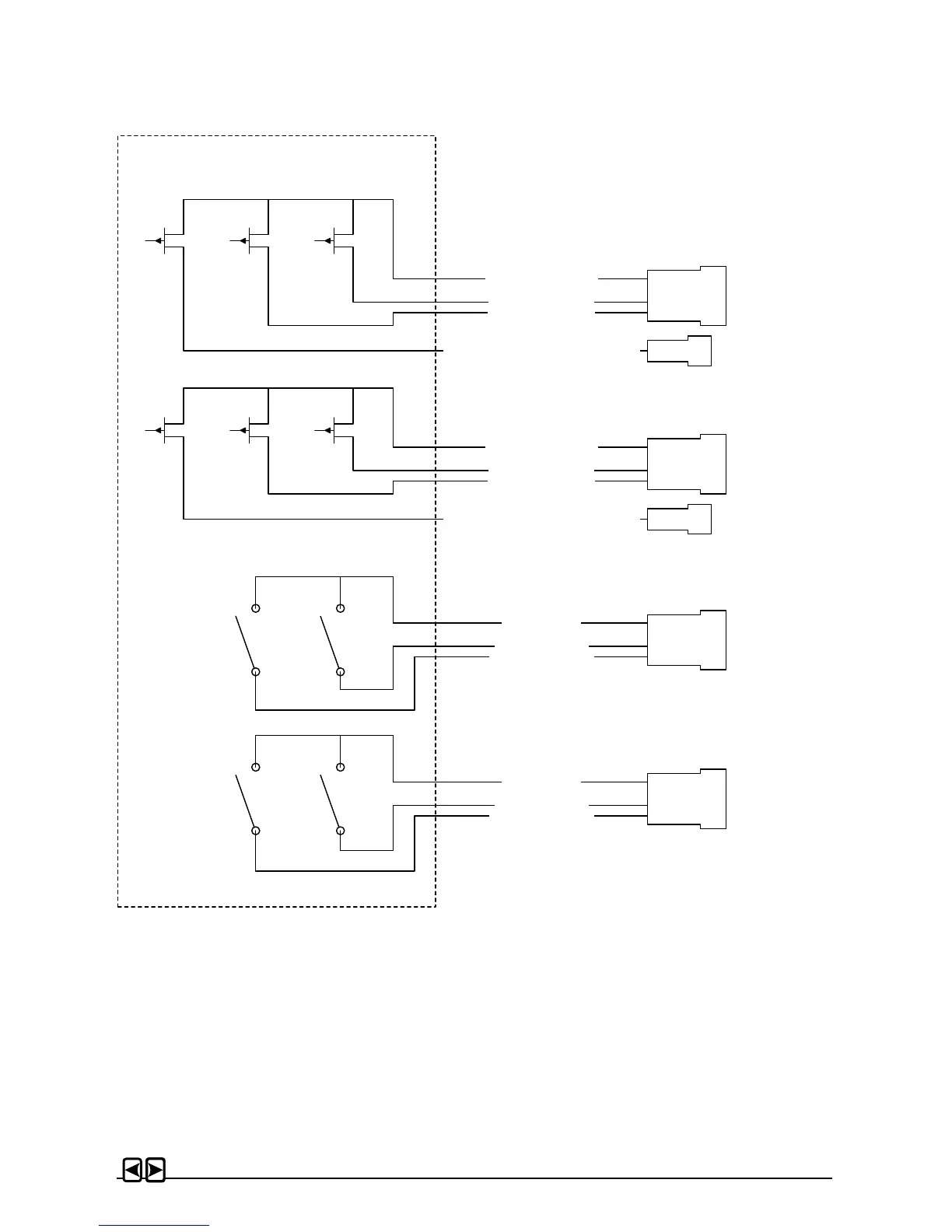

Output signals diagram
RED – Thruster Positive
BLUE – Thruster STBD
GREY – Thruster PORT
YELLOW – Automatic Mainswitch Enable
RED - COMMON
BLUE – Windlass IN
GREY – Windlass O UT
RED – Thruster Positive
BLUE – Thruster STBD
GREY – Thruster PORT
YELLOW – Automatic Mainswitch Enable
RED - COMMON
BLUE – Windlass IN
GREY – Windlass O UT
Thruster Bow
Th ruster Stern
Windlass Bow
Windlass Stern
