Connecting-up 05.2005
6SE7087-2NP85-0AA0 Siemens AG
7-10 Operating Instructions SIMOVERT MASTERDRIVES

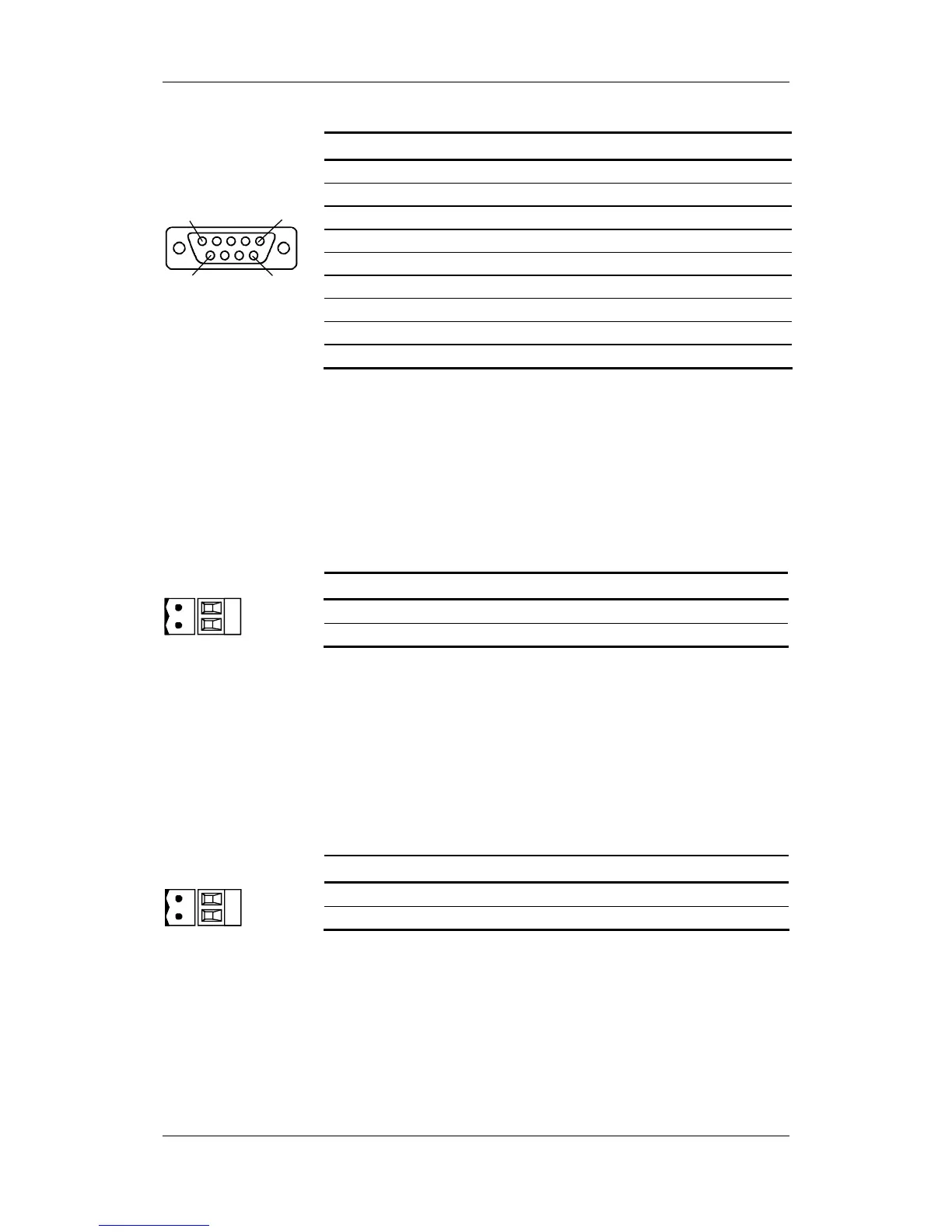

Pin Designation Meaning Range
1 n.c. Do not connect!
2 n.c. Do not connect!
3 RS485P (USS) Data via RS485 interface RS485
4 n.c. Do not connect!
5 Ground Reference potential to P5V 0 V
6 P5V 5 V aux. voltage supply +5 V, max. 200 mA
7 n.c. Do not connect!
8 RS485N (USS) Data via RS485 interface RS485
9 n.c. Do not connect!
Table 7-9 RS485 interface
If a fault occurs in the rectifier unit the fault message is output via the
contacts of the signaling relay and the main contactor is de-energized.
At the same time the red LED lights up on the front panel.
In the event of a fault, the contact is open.
The possible causes for a fault are described under the "Displays,
messages" section.
Terminal Designation Meaning Range
2 T. 13 Fault I
max
= 1 A, 24 V
1 T. 14 Fault I
max
= 1 A, 24 V
Connectable cross-section: 2.5 mm² (AWG 12)
Terminal 1 is at the front when installed.
Table 7-10 "Fault" output
As long as the pulse disable is set, either there is a fault or the unit is
still pre-charging.
The contact is therefore open.
Inverter pulse disable is canceled as soon as the unit switches to the
"RUN" state.
Terminal Designation Meaning Range
2 T. 13 Pulse disable I
max
= 1 A, 24 V
1 T. 14 Pulse disable I
max
= 1 A, 24 V
Connectable cross-section: 2.5 mm² (AWG 12)
Terminal 1 is at the front when installed.
Table 7-11 "Pulse disable" output
1
5
6
9
X91 – “Fault” output
1
2
X92 - "Pulse
disable" output
1
2
