SMART 7KT0210 Manual
Communication

Protocol and interface
Protocol: Modbus RTU
Interface:IntegratedRS485interface
Communication parameters
Communicationaddress 1to255
Transmission mode Halfduplex
Data types Float and Integer
Transmission distance 500mmaximum
Transmission Speed 300,600,1200,2400,4800,
9600,19200(inbps)
Parity None,Odd,Even
Stop bits 1 or 2
Response Time 100msMax&Independent,at
Baudrate

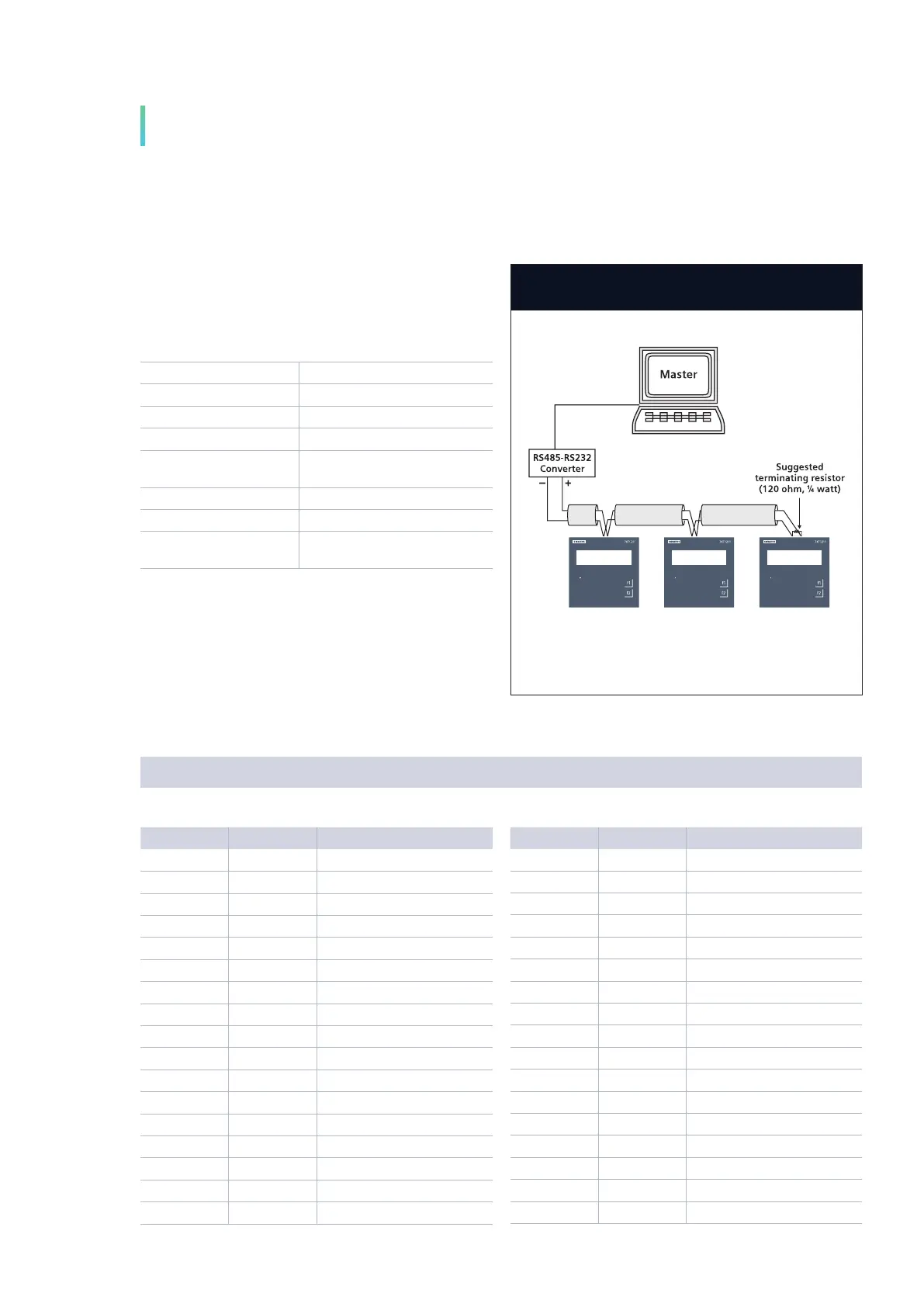

Connection diagram for communication
ContactsalesforPCbasedmonitoringsoftwareto
communicate with the meters.
Modbus register addresses list
Readable Parameters: Length Register: 2, Data Structure: Float
Address HEX Address Parameter
30000 0x00 VoltageV1N
30002 0x02 VoltageV2N
30004 0x04 VoltageV3N
30006 0x06 AverageVtgL-N
30008 0x08 VoltageV12
30010 0x0A VoltageV23
30012 0x0C VoltageV31
30014 0x0E AverageVtgL-L
30016 0X10 CurrentI1
30018 0x12 CurrentI2
30020 0x14 CurrentI3
30022 0x16 AverageCurrent
30024 0x18 kW1
30026 0x1A kW2
30028 0x1C kW3
30030 0x1E kVA1
30032 0x20 kVA2
Address HEX Address Parameter
30034 0x22 kVA3
30036 0x24 kVAr1
30038 0x26 kVAr2
30040 0x28 kVAr3
30042 0x2A Total kW
30044 0x2C TotalkVA
30046 0x2E TotalkVAr
30048 0x30 PF1
30050 0x32 PF2
30052 0x34 PF3
30054 0x36 AveragePF
30056 0x38 Frequency
30058 0x3A Total kWh
30060 0x3C TotalkVAh
30062 0x3E TotalkVArh
30064 0x40 Activepowermaxdemand
30068 0x44 Reactivepowermaxdemand
