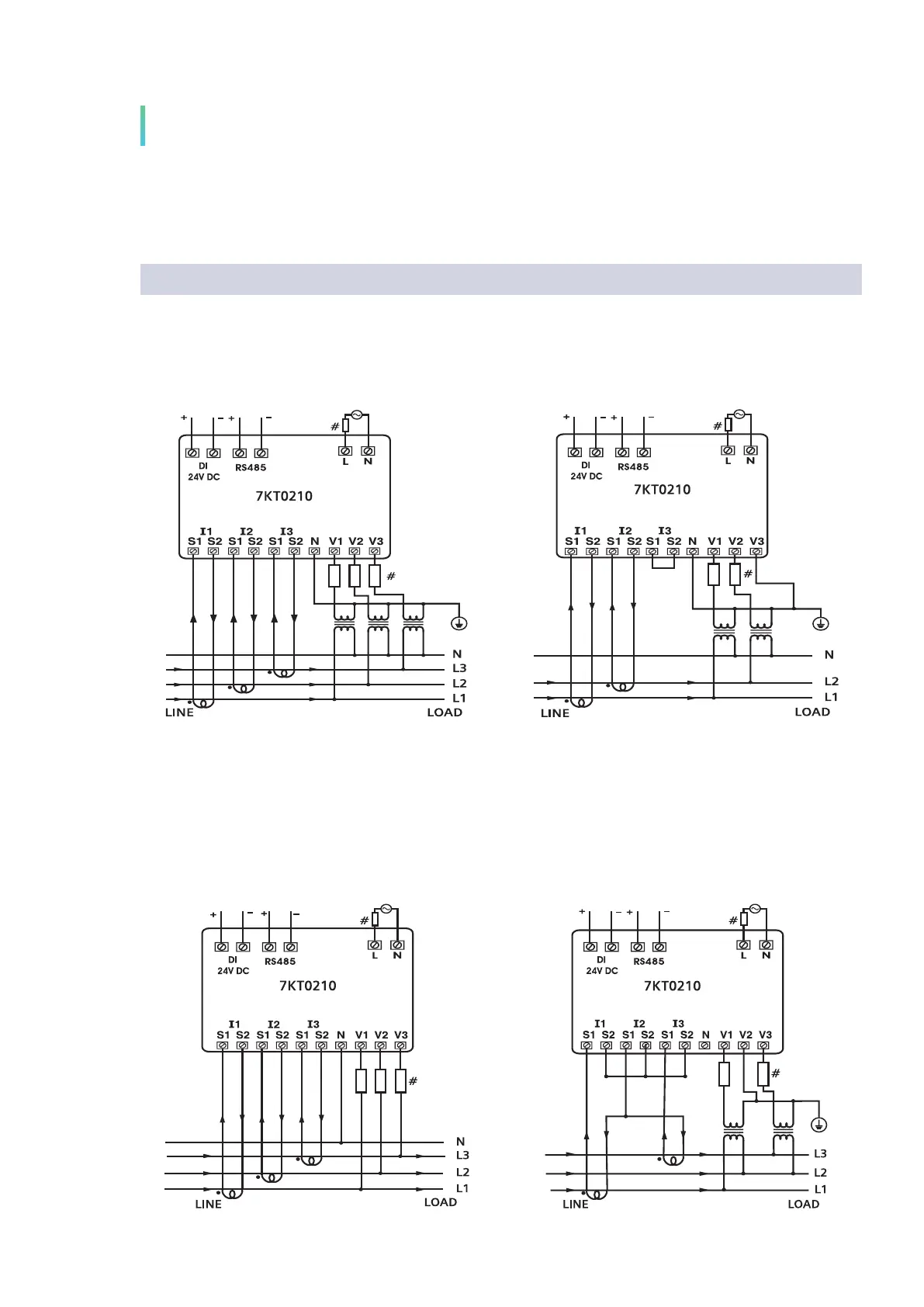

Siemens 7KT - Typical Wiring Diagram

9
SMART 7KT0210 Manual
Connection

3 Phase - 4 Wire
3Ø-4Wire,3CT’sand3PT’s
Network selection: 3P4W
2 Phase - 3 Wire
2Ø-3Wire,2CT’sand2PT’s
Network selection: 3P4W
3 Phase - 4 Wire (commonly used)
3Ø-4Wire,3CT’s
Network selection: 3P4W
3 Phase - 3 Wire
3Ø-3Wire,2CT’sand2PT’s
Network selection: 3P3W
Typical Wiring Diagram
